Condition: | New | Max. Output Power: | 100W-450W |
---|---|---|---|
Usage: | Metal Welding | Single Pulse Energy: | 80-120J |
Pulse Width: | 0.1-50ms | Wavelength: | 1064nm |
Focal Spot Diameter: | 0.2-2mm | Dimensions: | 1000x550x1150mm |
Warranty: | 1 Year | Laser Source Brand: | MAX |
Laser Head Brand: | Raytools | Servo Motor Brand: | Yaskawa |
Guiderail Brand: | HIWIN | Control System Brand: | Depeng |
Weight (KG): | 150 KG | Key Selling Points: | Easy To Operate |
Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Advertising Company | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
Warranty Of Core Components: | 1.5 Years | Core Components: | Other |

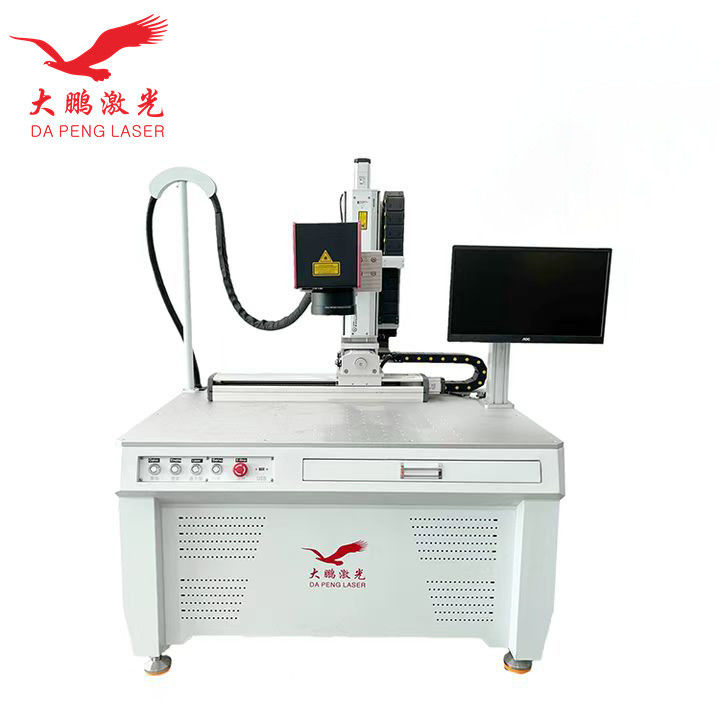

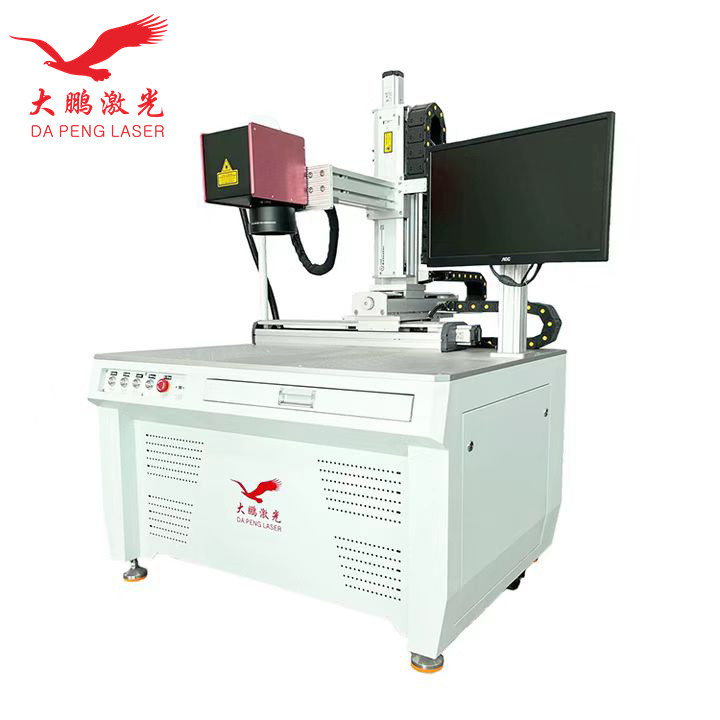

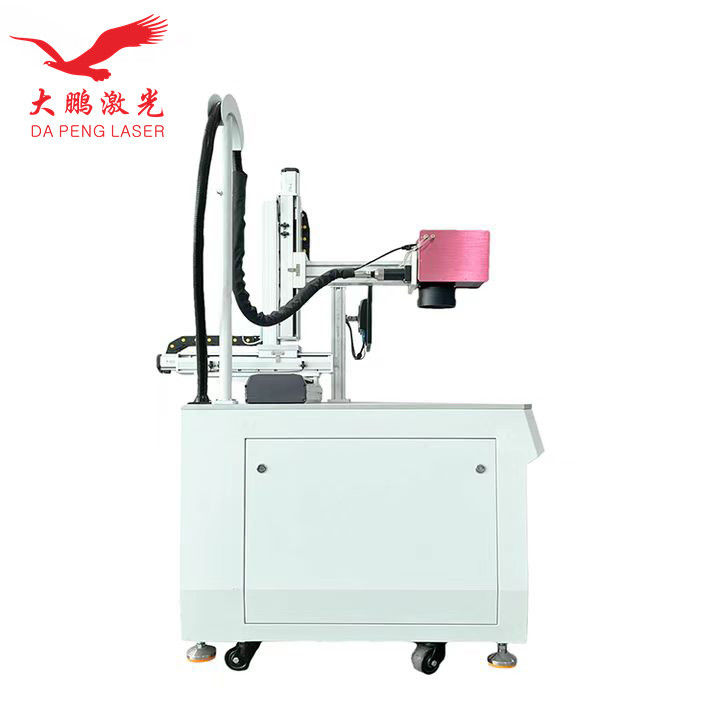

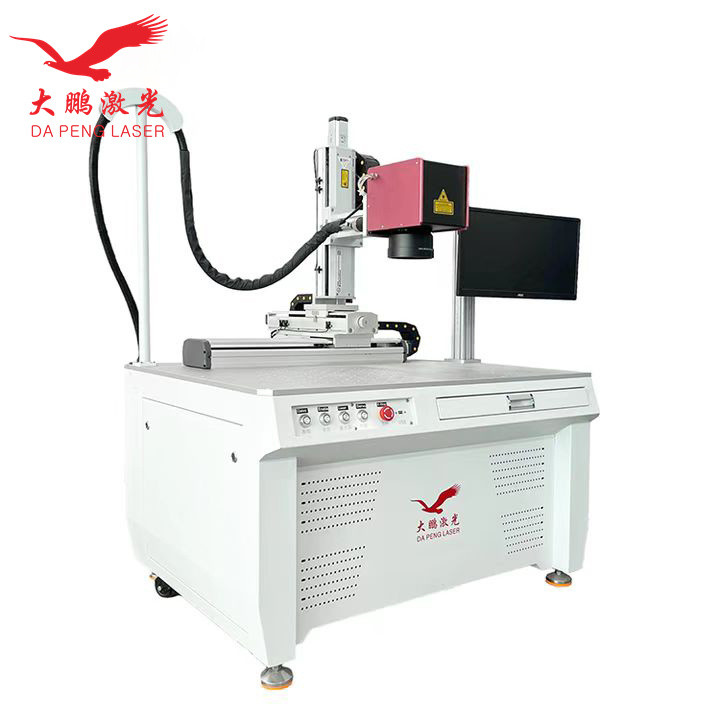

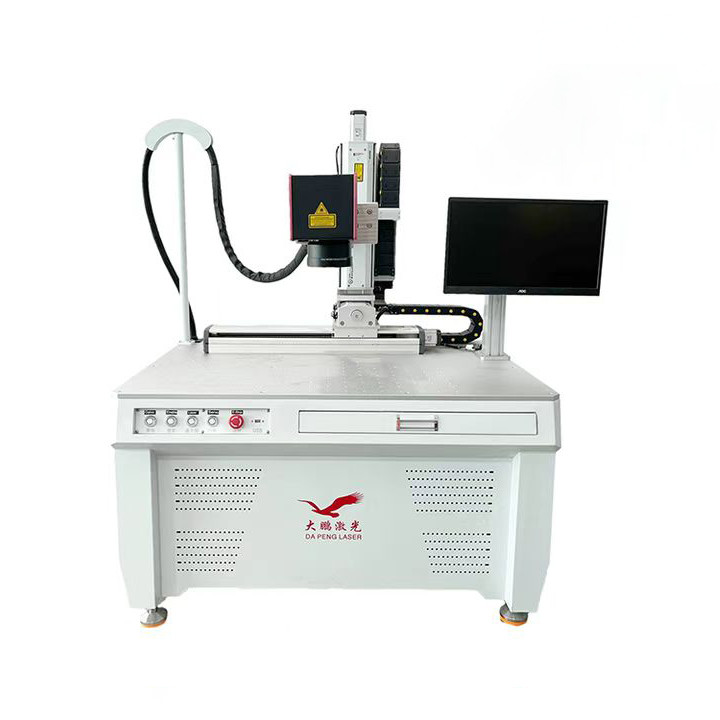

Product Name: | Automatic Laser Welding Machine | Function: | Welding Steel Tube |
Temperature Control: | K-type Thermocouple Closed Loop | Positioning: | External Universal Fixture |
Welding Materials: | Stainless Steel Stud | Power Consumption: | 500-6000W |
Cooling Method: | Water Chiller Hanli | Advantage: | Welding And Cutting Double Function |
Application: | Metal Stainless Steel Laser Welder | Keywords: | Fiber Laser Welding Equipment |
High Light: | Metal Fiber Laser Welding Machine,Copper Fiber Laser Welding Machine,450W Aluminum Laser Welding Machine |
Model
|
DPH-150
|
DPH-300
|
DPH-450
|
Laser source type
|
Fiber source
|
Fiber source
|
Fiber source
|
Laser Out Power
|
150W
|
300W
|
450W
|
Laser wavelength
|
1064nm
|
1064nm
|
1064nm
|
Laser Source
|
Raycus/Max/IPG/nLIGHT
|
Raycus/Max/IPG/nLIGHT
|
Raycus/Max/IPG/nLIGHT
|
Focal spot diameter
|
0.1-3mm
|
0.1-3mm
|
0.1-3mm
|
Working Table Scale
|
750*1000mm
|
750*1000mm
|
750*1000mm
|
Observation system
|
CCD camera
|
CCD camera
|
CCD camera
|
Laser frequency
|
1-50Hz
|
1-50Hz
|
1-50Hz
|
Repeatability
|
±0.01mm
|
±0.01mm
|
±0.01mm
|
Machine operating temperature
|
0~40℃
|
0~40℃
|
0~40℃
|
Electricity demand
|
AC220V±10% 50V 60Hz
|
AC220V±10% 50V 60Hz
|
AC220V±10% 50V 60Hz
|
Cooling method
|
Water Chiller Hanli
|
Water Chiller Hanli
|
Water Chiller Hanli
|
Continuous operating time
|
24 hours
|
24 hours
|
24 hours
|
Weight
|
300kg
|
300kg
|
300kg
|
Dimensions
|
1230*1010*1750mm
|
1230*1010*1750mm
|
1230*1010*1750mm
|
Single Pulse Energy
|
15J
|
30J
|
45J
|
