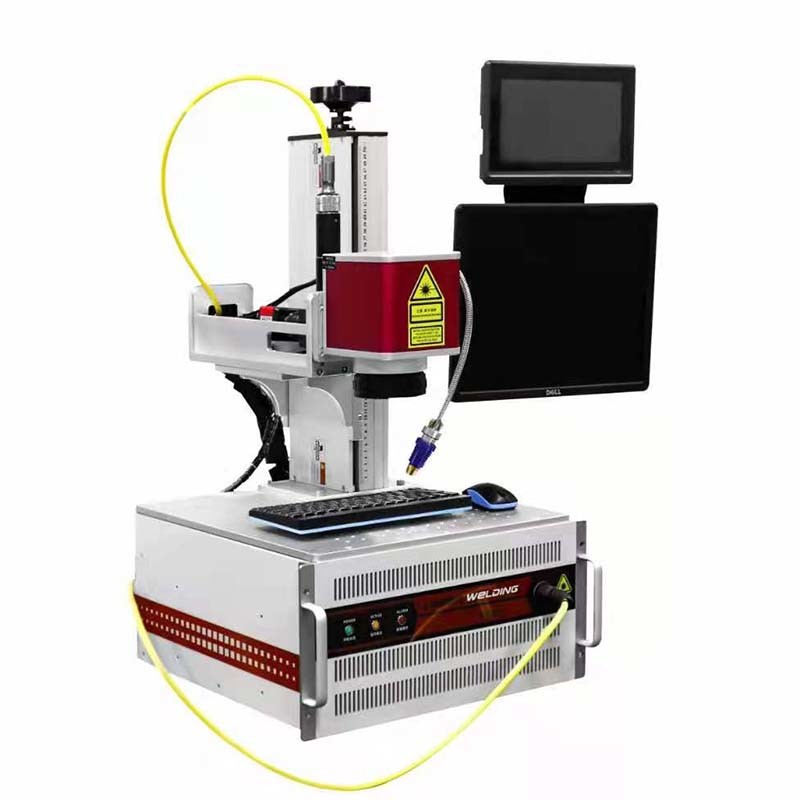

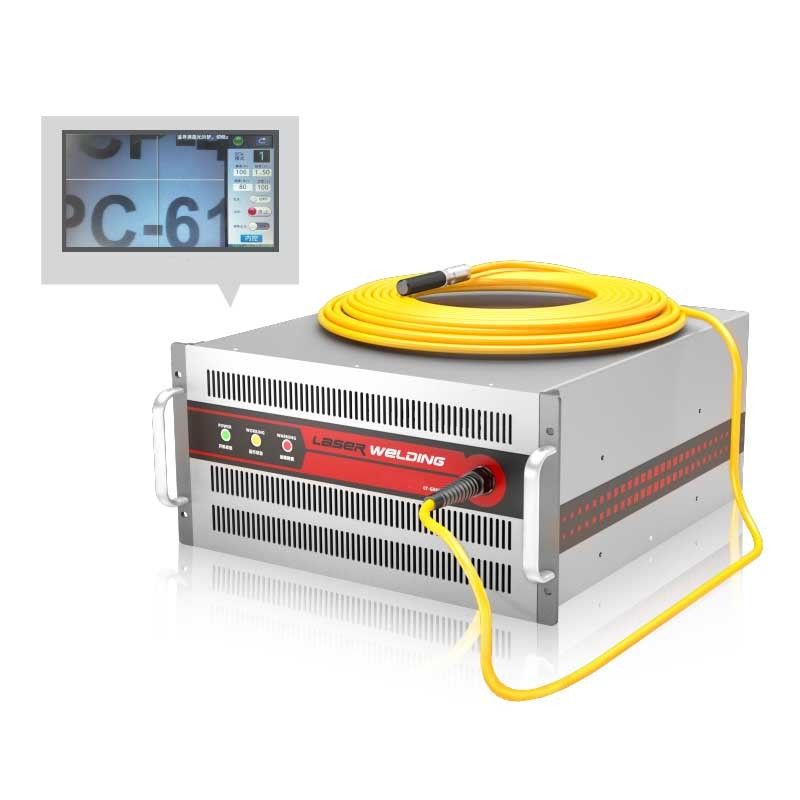

Air Cooling Fiber Laser Welding System 60W 100W Multi Function

Chain making welding machine QCW laser 60W 100W Air cooling

Features:

1.A new solution with different multimode beams:

The beam homogenization scheme flattened the Gaussian beam of the traditional laser, outputting a beam that is more suitable for welding, strengthening the compatibility of the laser with metal materials, and broadening the product range.

2. Humanized design:

Compared with traditional lasers, 60W/100W QCW pulse welding fiber lasers have their own welding process control system, which is more integrated and easier to use, and the control screen has its own imaging effect, which has an excellent user experience. The unique high-energy stability of the laser determines its high-quality energy output.

3. More suitable for welding working mode

Two welding methods, pulse & high frequency modulation, pursue a more delicate welding process.

4. P series product features:

The P series pulse welding laser has a wide range of core choices: from 14um to 100um, a variety of fiber cores can be selected. To deal with different materials, choose the most suitable fiber; the fiber core has a direct impact on the output spot diameter. In the case of the same output energy, the spot size and the molten pool form a positive correlation. At the same time, the smaller the spot, the stronger the piercing force and the deeper the penetration. Different fiber core choices can be matched with a suitable laser source according to different welding requirements.

Specification:

Application :

60W is mainly used in welding products with single-point energy within 1J,

100W is mainly used in welding products with single-point energy of 2-6J.

TAG: QCW laser chain making welding machine

We are manufacturer of fiber laser cutting machine with 12 years of production experience.We offer complete machine solution,also provide laser source,CNC controller ,laserhead, water chiller,servo,custom made machine table,training and service,etc. one-stop solution!


Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.

We are looking for distributor. Price is more competitive.

We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.
