Place of Origin: | Guangdong, China |
---|---|
Brand Name: | DAPENG |
Certification: | CE ISO |
Model Number: | DPH-3000 |
Minimum Order Quantity: | 1set |
Price: | USD1000-USD9900 |
Packaging Details: | Wooden boxes that meet international export standards |
Delivery Time: | 3-10 Days |
Payment Terms: | T/T |
Supply Ability: | 300 Sets per month |
Condition: | New | Max. Output Power: | 1000W/2000W/3000W |
---|---|---|---|
Usage: | Metal Welding Cutting Cleaning | Pulse Width: | 0.5~10ms |
Wavelength: | 1070nm | Focal Spot Diameter: | 1.2-3.0 Mm |
Dimensions: | 941*744*1030mm | Warranty: | 2 Years |
Laser Source Brand: | RAYCUS MAX IPG Optional | Laser Head Brand: | DP LASER |
Weight (KG): | 260 KG | Key Selling Points: | Multifunctional |
Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
Warranty Of Core Components: | 2 Years | Core Components: | Laser Source |
Product Name: | Handheld Laser Welding Machine | Laser Source: | Raycus MAX IPG Laser Source |
Laser Power: | 1000W/1500W/2000W Optional | Application: | Metal Stainless Steel Laser Welder |
Laser Wavelength: | 1070nm | Advantage: | Welding Cutting Cleaning 3 IN 1 |
Keywords: | Fiber Laser Welding Equipment | Power Supply: | 220V/380V |
After-sales Service Provided: | Overseas Engineers Provide Door-to-door Service | ||
High Light: | 3000W Fiber Laser Welding Machine,Handheld Fiber Laser Welding Machine,Multifunctional Handheld Laser Welding Machine |

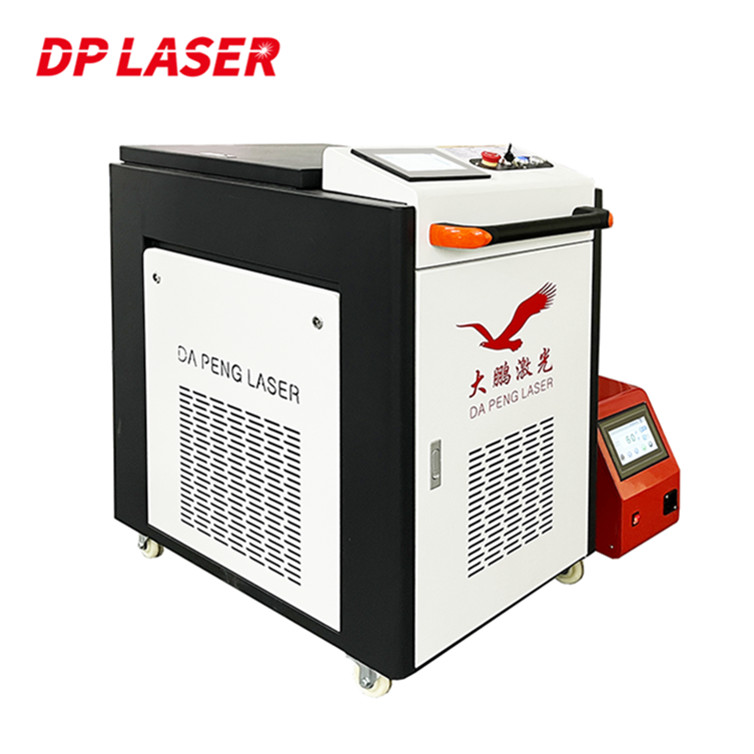

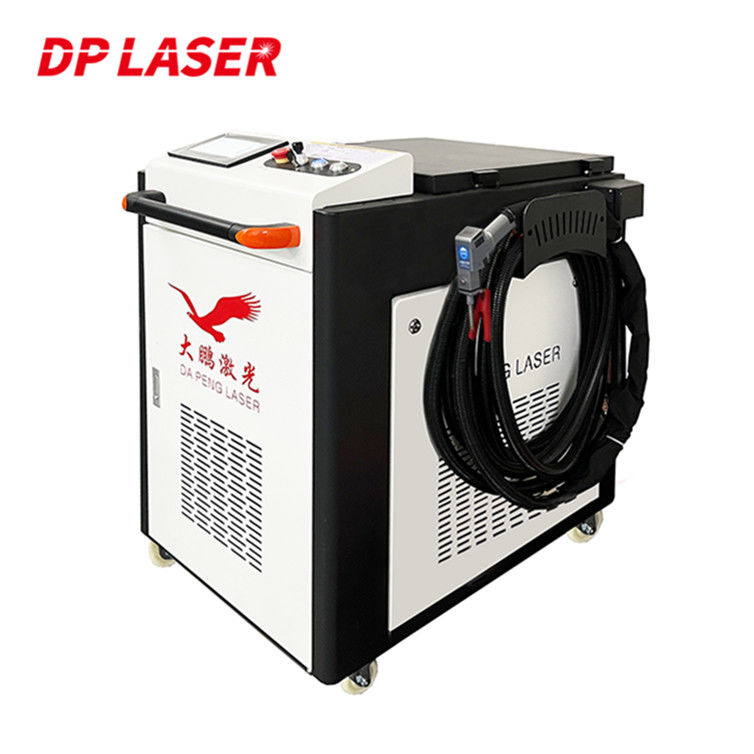

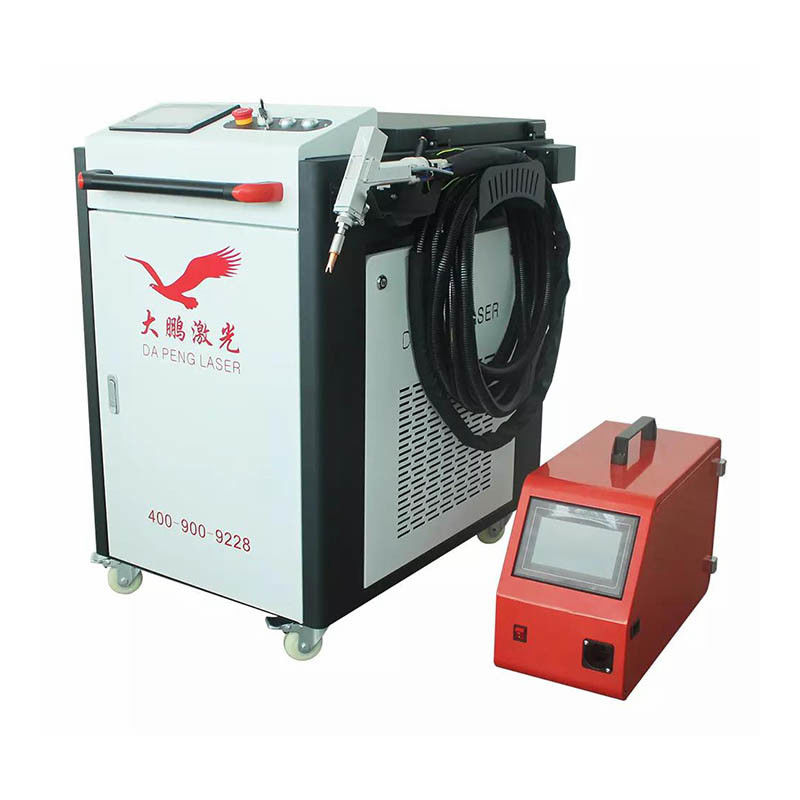

High Power Welding 3000W handheld Laser Welding Machine fiber laser welder CE
The High Power Welding 3000W is a 3-in-1 fiber laser welder designed for laser welding machines. It is a powerful and versatile welding machine that offers efficient and precise metal welding, cutting, and cleaning capabilities. With its high power output of 3000W, it can handle a wide range of welding applications in various industries.
High Power Output: The welding machine boasts a maximum output power of 3000W, providing ample energy for efficient welding, cutting, and cleaning of metals.
Multifunctional Design: This 3-in-1 fiber laser welder is capable of performing multiple tasks, including welding, cutting, and cleaning. It offers versatility and flexibility in metal processing.
Advanced Laser Technology: The machine utilizes fiber laser technology, which ensures high photoelectric conversion efficiency and a long operational lifespan of up to 100,000 hours. It offers superior performance compared to traditional YAG lasers.
Precise and Narrow Heat-Affected Zone: The laser welding process results in a narrow and deep heat-affected zone, minimizing thermal deformation and ensuring high welding precision.
High Cooling Rate: The welding machine features a high cooling rate, enabling the welding of fine weld structures and achieving excellent joint performance.
Cost-Effective and Low Maintenance: Unlike contact welding methods, laser welding eliminates the need for electrodes, reducing daily maintenance costs and increasing work efficiency. It is a cost-effective solution for metal processing.
Product advantages:
1. The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2. High cooling rate, which can weld fine weld structure and good joint performance.
3. Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4. The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5. No consumables, small size, flexible processing, low operating and maintenance costs.
6. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Model | DP-HL-1000-3IN1 | DP-HL-1500-3IN1 | DP-HL-2000-3IN1 |
Laser Power | 1000W | 1500W | 2000W |
Laser Source | Raycus/Max/IPG | Raycus/Max/IPG | Raycus/Max/IPG |
Laser Head | Chaoqiang | Chaoqiang | Chaoqiang |
Fiber Wire Length | 5/10 Meters | 5/10 Meters | 5/10 Meters |
Laser Wavelength | 1070nm | 1070nm | 1070nm |
Operate Mode | Continuation/Modulate | Continuation/Modulate | Continuation/Modulate |
Water Chiller | Hanli | Hanli | Hanli |
Spot Adjusting Range | 0.1-3mm | 0.1-3mm | 0.1-3mm |
Repeating Precision | ±0.01mm | ±0.01mm | ±0.01mm |
Cabinet Size | 486*807*980mm | 486*807*980mm | 486*807*980mm |
Machine Weight | About 135KG | About 141KG | About 174KG |
Voltage | 110V/220V | 110V/220V | 110V/220V |
Machine configuration:
Name | Specs | Qty | Place of origin |
Cabinet | Fiber welding cabinet | 1 | China |
Laser source | MAX | 1 | China |

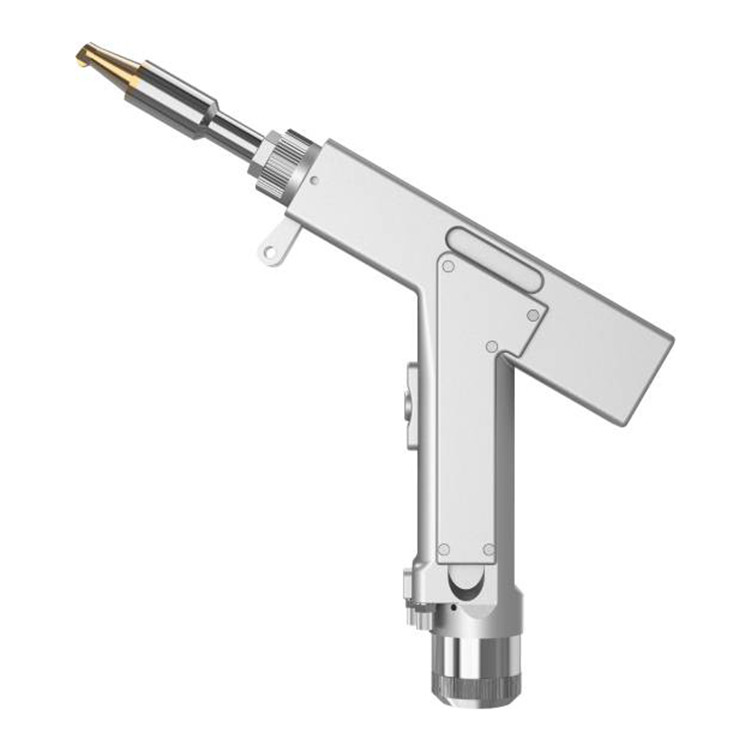

Welding head | SUP/Qilin welding head | 1 | China |
Wire feeder | Use 0.8/1.0mm welding wire | 1 | China |
Chiller | 1.2P Double chilling | 1 | China |
Laser control system | Touch screen | 1 | China |
Handheld safety controller | Prevent accidental laser emit | 1 | China |
We are manufacturer of fiber laser cutting machine with 12 years of production experience.We offer complete machine solution,also provide laser source,CNC controller ,laserhead, water chiller,servo,custom made machine table,training and service,etc. one-stop solution!
Our core advantages:
1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.
We are looking for distributor. Price is more competitive.
We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.
