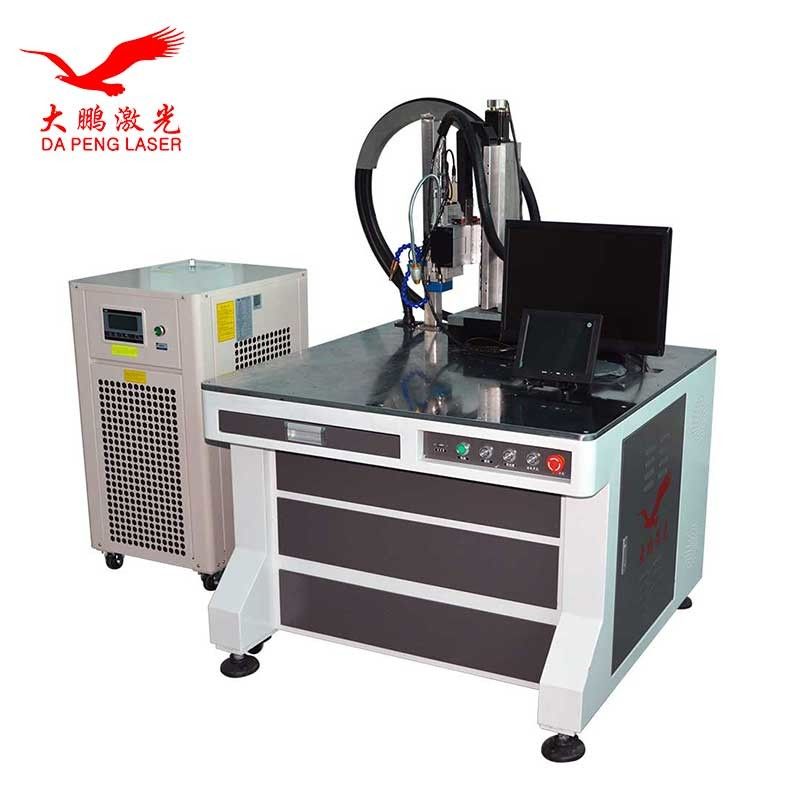

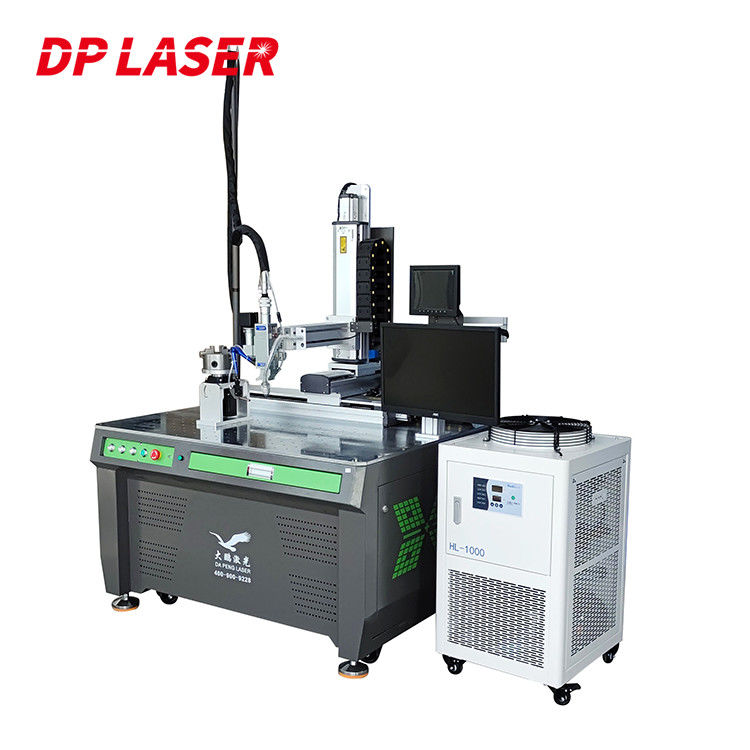

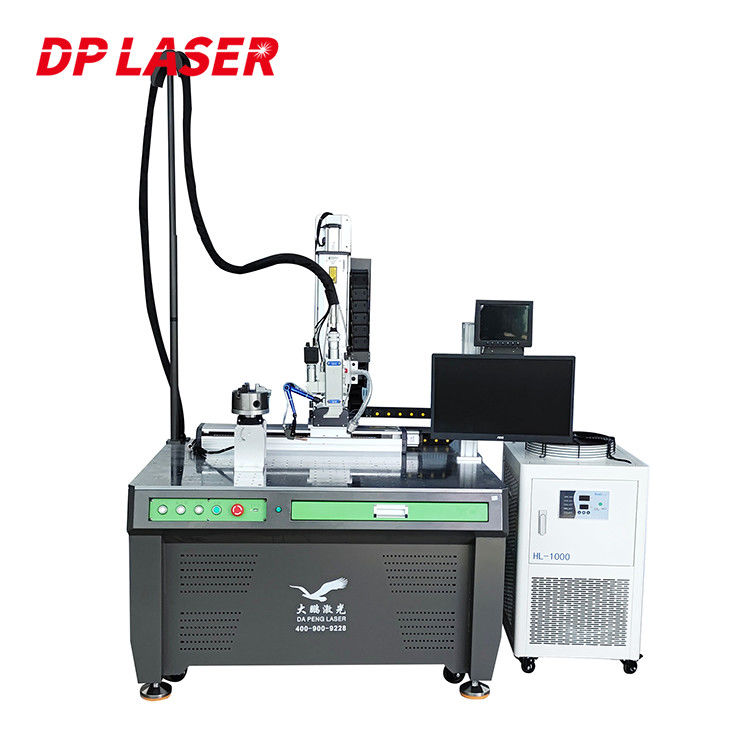

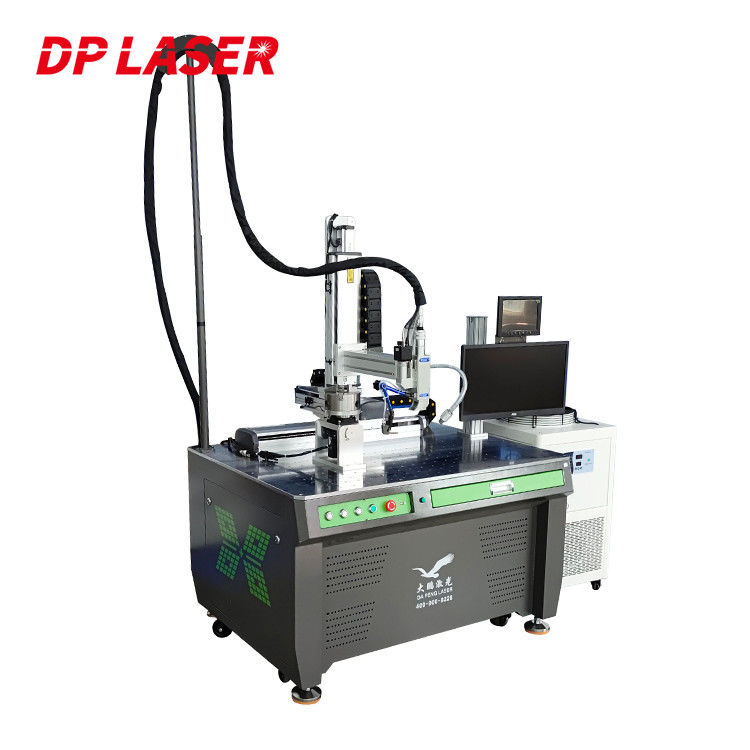

OEM 2000W Fiber Laser Welding Machine High Speed For Automobile Components

Basic Information
Place of Origin: Guangdong, China
Brand Name: DAPENG
Certification: CE ISO
Model Number: DPH-2000
Minimum Order Quantity: 1set
Price: USD1000-USD12500
Packaging Details: Plywood box
Delivery Time: 3-10 Days
Payment Terms: T/T
Supply Ability: 300 Sets per month
Detail Information
Condition: New Max. Output Power: 2000w
Usage: Metal Welding Pulse Width: 0.5-20ms
Wavelength: 1070nm Focal Spot Diameter: 0.6 --- 3mm
Dimensions: 941*744*1030mm Warranty: 2 Years
Laser Source Brand: OEM Laser Head Brand: OEM
Servo Motor Brand: OEM Guiderail Brand: OEM
Control System Brand: OEM Weight (KG): 260 KG
Key Selling Points: Multifunctional Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Other
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 2 Years
Core Components: Other, Laser Source, Welding Head
High Light:

OEM Fiber Laser Welding Machine

,

Automobile Fiber Laser Welding Machine

,

2000W High Speed Laser Welding Machine


Product Description

High-Speed Fiber Laser Welding Machine for Automobile Components dapenglaser

Product Description:

The high-speed fiber laser welding machine for automobile components offered by Dapenglaser is a cutting-edge solution for precise and efficient welding in the automotive industry. This machine utilizes advanced fiber laser technology to deliver exceptional performance and reliability. It is specifically designed for welding various automobile components with high speed and accuracy.

Features:

High Energy Efficiency: The fiber laser technology employed in this machine ensures high photoelectric conversion efficiency, resulting in significant energy savings and reduced operating costs.
Precise Welding: With its high energy density and low heat input, this machine produces minimal thermal deformation, narrow and deep melting zones, and excellent joint performance.
Enhanced Cooling Rate: The machine's high cooling rate enables the welding of fine weld structures, ensuring superior weld quality and strength.
Electrode-Free Welding: Unlike traditional contact welding methods, laser welding eliminates the need for electrodes, reducing maintenance costs and increasing work efficiency.
Versatile and Compact: This machine offers flexible processing capabilities, compact size, and can be easily integrated with pipelines or robots for automated welding processes.



Steel Tool Brick Trowel Custom Fixture Automatic CNC Fiber Laser Welding Machine


Product advantages:

1. The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.

2. High cooling rate, which can weld fine weld structure and good joint performance.

3. Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.

4. The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.

5. No consumables, small size, flexible processing, low operating and maintenance costs.

6. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.



Application areas:

It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace, aviation, power battery and daily necessities industries.



Technology parameters

Laser power 1500W,2000W
Center wavelength 1070nm
Output power stability <3%
Laser frequency 0.5Hz-100KHz
Adjustable power range 10-100%
Beam quality 1.1
Optimal operating environment Temperature 0-40 ° C, humidity 20% -80%
Electricity demand AC220V
Output fiber length 10m
Welding speed 0-120mm/s
Machine travel XYZ, 50x50x50cm
Cooling method Water Cooling
Dimensions 100cm*100cm*172cm
Weight 300kg



Machine configuration:

Name Specs Qty Place of origin
Cabinet Dapeng fiber welding cabinet 1 Shenzhen
Laser source MAX/Raycus 1 China
Welding head Wobble welding head 1 China
Chiller 2.0P 1 Shenzhen
Welding CNC system C6 1 Wuhan
CCD camera 20 times magnification 1 Shenzhen
Servo motor 400W 2 China
Servo motor 400W with brake 1 China

OEM 2000W Fiber Laser Welding Machine High Speed For Automobile Components 0
Laser Power
1000W-6000W
Laser Source
Raycus/Max/IPG/nLIGHT
Laser Head
Raytool/WSX/OSPRI
Fiber Wire Length
5/10 Meters
Laser Wavelength
1070nm
Axis
4/5 Axis
Fixture
Support Customization
Operate Mode
Continuation/Modulate
Water Chiller
Hanli
Spot Adjusting Range
0.1-3mm
Repeating Precision
±0.01mm
Cabinet Size
1230*1010*1750mm
Machine Weight
About 350KG
Voltage
380V/3-Phase/50Hz/40A/60A
OEM 2000W Fiber Laser Welding Machine High Speed For Automobile Components 1
OEM 2000W Fiber Laser Welding Machine High Speed For Automobile Components 2
OEM 2000W Fiber Laser Welding Machine High Speed For Automobile Components 3
OEM 2000W Fiber Laser Welding Machine High Speed For Automobile Components 4
