Product Description:

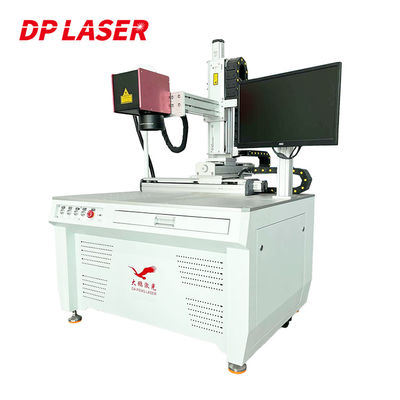

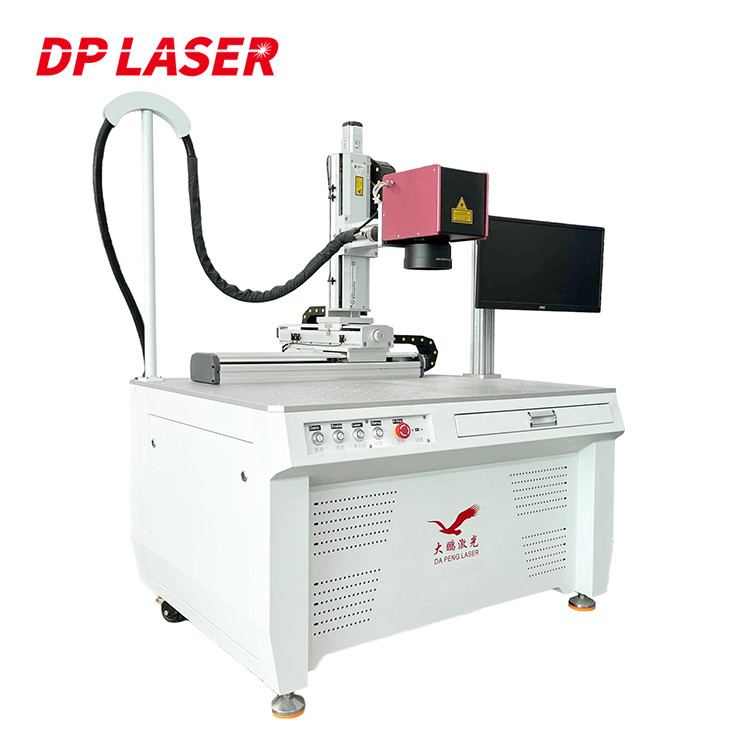

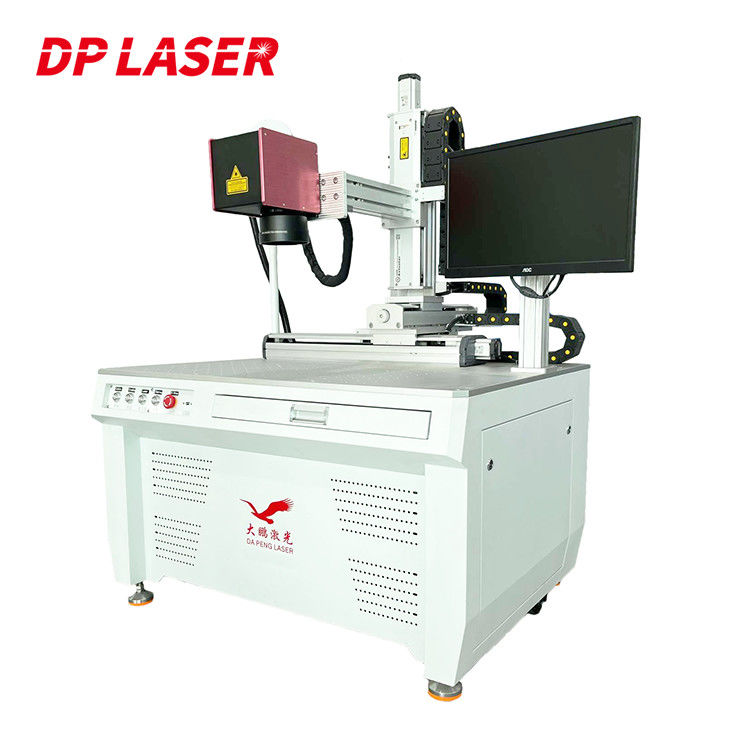

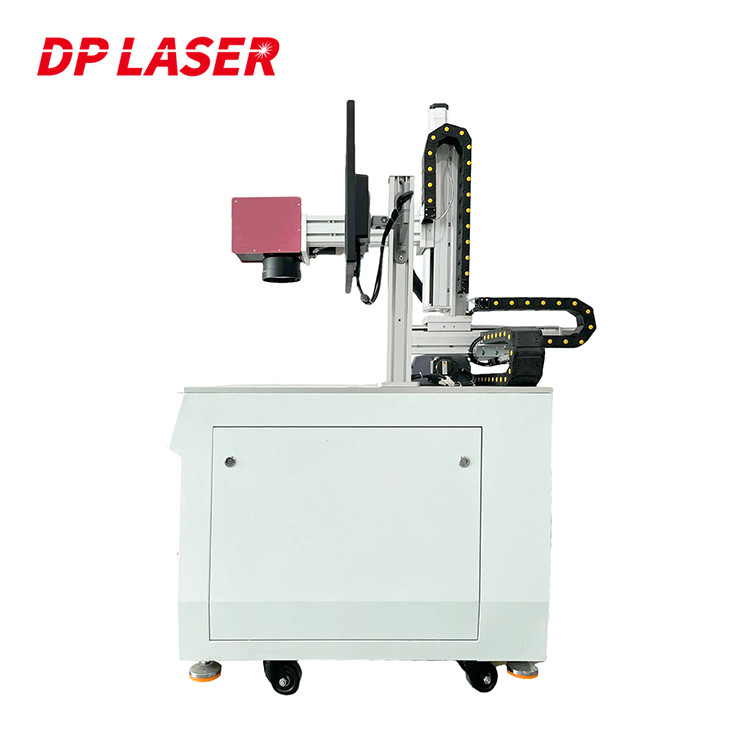

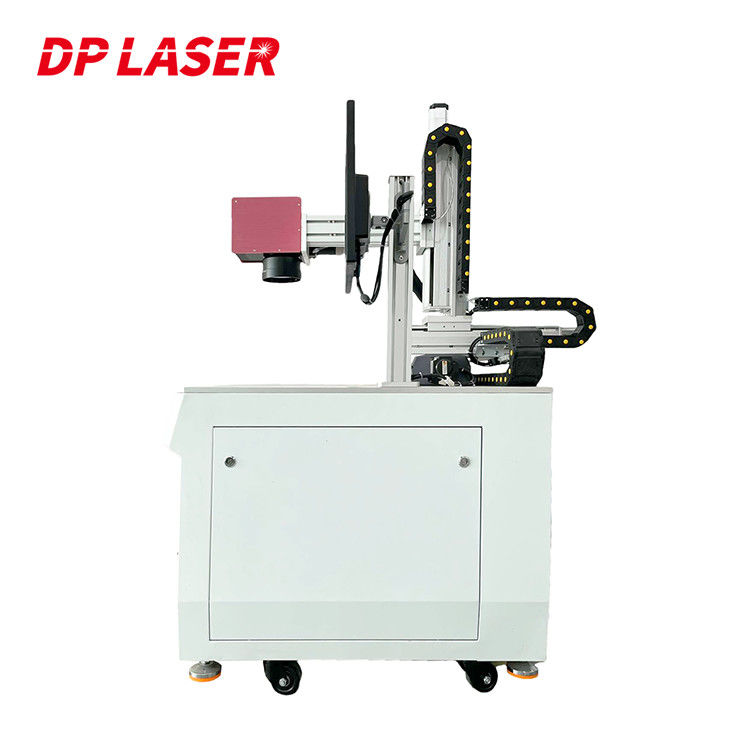

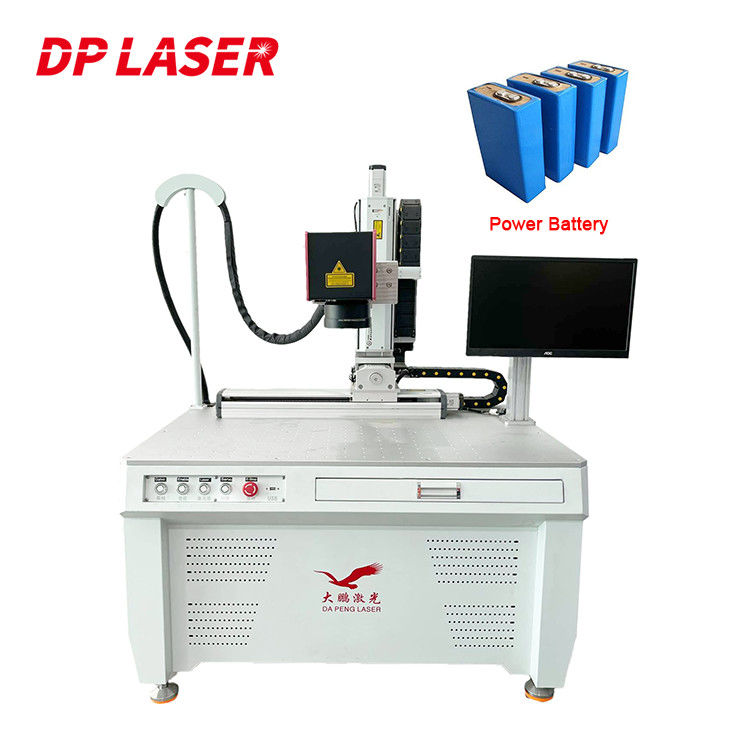

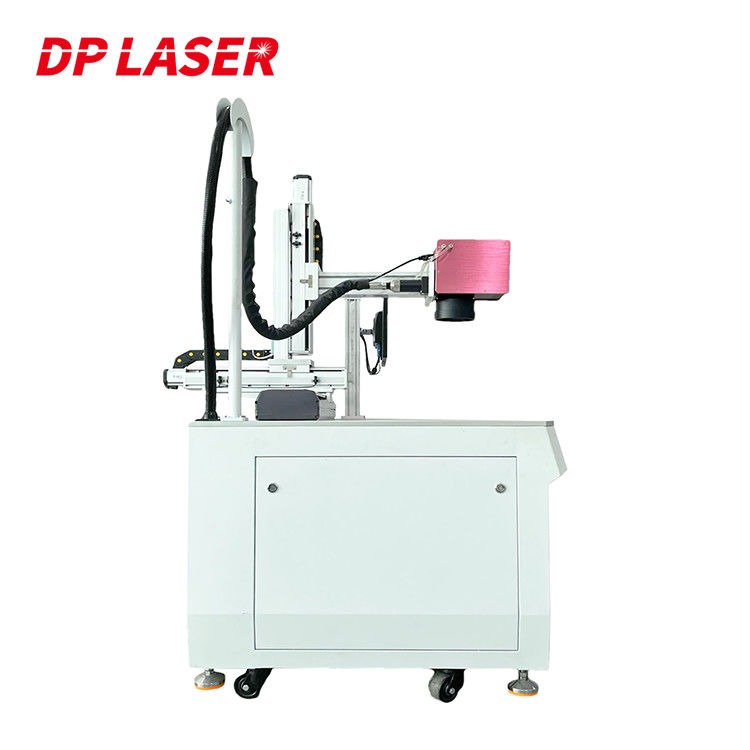

The DAPENG New Energy Vehicles Power Battery QCW Fiber Laser Welding Machine is a cutting-edge welding solution designed specifically for power battery applications in new energy vehicles. With its advanced QCW fiber laser technology and versatile features, it provides high-quality and efficient welding performance for power battery manufacturing.
Features:
High power output: The machine is available in various power options, including 75W, 150W, 300W, and 450W, ensuring sufficient laser energy for precise and reliable welding.
Multifunctional capabilities: It is suitable for a wide range of metal welding applications, making it highly versatile for different industries and use cases.
Adjustable pulse width: The machine offers a pulse width range of 0.1-20ms, allowing for precise control and customization of the welding process.
Fiber laser source: Equipped with a Raycus, MAX, or IPG laser source, it delivers stable and consistent laser performance for optimal welding results.
Compact design: With dimensions of 197010001500mm, the machine occupies minimal space and is easy to integrate into existing production lines.
Reliable warranty: The machine comes with a 3-year warranty for the core components, ensuring long-term support and peace of mind for customers.
Technical Parameters:
Laser Type: Fiber
Wavelength: 1070nm
Laser Mode: Continuous and Pulse
Laser Source Brand: Raycus/MAX/IPG (Optional)
Max. Output Power: 75W/150W/300W/450W (Optional)
Pulse Width: 0.1-20ms
Focal Spot Diameter: 0.1-2.0mm
Warranty: 1 Year
Applications:
The DAPENG Power Battery QCW Fiber Laser Welding Machine is specifically designed for welding power batteries in new energy vehicles. It is widely used in battery manufacturing plants, automotive industry, and related sectors for welding battery cells, tabs, and other battery components.
Support and Services:
We provide comprehensive support and services for our customers, including:
Overseas engineers: Our team of experienced engineers is available to provide on-site installation, training, and maintenance services.
After-sales support: We offer technical assistance and support for any inquiries or issues that may arise.
Warranty coverage: The machine comes with a 3-year warranty for the core components, ensuring reliable performance and peace of mind.
Spare parts availability: We provide access to spare parts and accessories to ensure uninterrupted operation of the machine.
FAQ:
What is the warranty period for the DAPENG Power Battery QCW Fiber Laser Welding Machine?
The machine comes with a 1-year warranty for the core components.
Can the machine be customized to meet specific welding requirements?
Yes, we offer customization options to tailor the machine to specific power battery welding needs.
What types of power batteries can be welded using this machine?
The machine is suitable for welding various types of power batteries used in new energy vehicles.
What is the cooling mode of the machine?
The machine adopts air cooling for efficient heat dissipation during the welding process.
What is the operating temperature range for the machine?
The machine can operate within a temperature range of -10°C to 40°C.
New Energy Vehicles Power Battery QCW Fiber Laser Welding Machine
| Model |
DPH-75ZJ-QCW |
DPH-150ZJ-QCW |
DPH-300ZJ-QCW |
DPH-450ZJ-QCW |
| Laser Type |
Fiber |
| Wavelength |
1070nm |
| Laser Mode |
Continuous and Pulse |
| Laser Source Brand |
Raycus/MAX/IPG(Optional) |
| Continuous Average |
75W |
150W |
300W |
450W |
| Max.Pulse Power |
750W |
1500W |
3000W |
4500W |
| Pulse Average Power |
75W |
150W |
300W |
450W |
| Max.Pulse Energy |
7.5J |
15J |
30J |
45J |
| Beam Quality |
5mm*mrad |
| Pulse Repetition Frequency |
0Hz≤F≤2500Hz |
| Min.Focus Spot Diameter |
0.1-0.4mm |
| Cooling Mode |
Air Cooling |
| Voltage |
AC220V±10% 50V 60Hz |
| Fiber Diameter |
50um/100um/200um(Optional) |
| Energy Stability |
<±1 |
| Operating Temperature |
-10 ℃—40℃ |
