Detail Information

Condition:	New	Max. Output Power:	1000W-6000W
Usage:	Metal Welding	Pulse Width:	0.5~20ms
Wavelength:	1070nm	Focal Spot Diameter:	0.3-1.5mm
Dimensions:	100015001970mm	Warranty:	2 Years
Laser Source Brand:	RAYCUS MAX IPG NLIGHT Optional	Laser Head Brand:	Raytool WSX OSPRI Optional
Servo Motor Brand:	Yaskawa	Weight (KG):	350 KG
Key Selling Points:	Multifunctional	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Marketing Type:	Ordinary Product	Core Components:	Laser Source
Product Name:	Automatic Laser Welding Machine	Laser Source:	Raycus MAX IPG NLIGHT Laser Source
Application:	Metal Stainless Steel Laser Welder	Laser Wavelength:	1070nm
Fixture:	Support Customization	Keywords:	Fiber Laser Welding Equipment
Power Supply:	220V	After-sales Service Provided:	Overseas Engineers Provide Door-to-door Service
High Light:	3 Axis Laser Fiber Welding Machine , 4 Axis Laser Fiber Welding Machine , Automatic Fiber Welding Laser Machine

Product Description

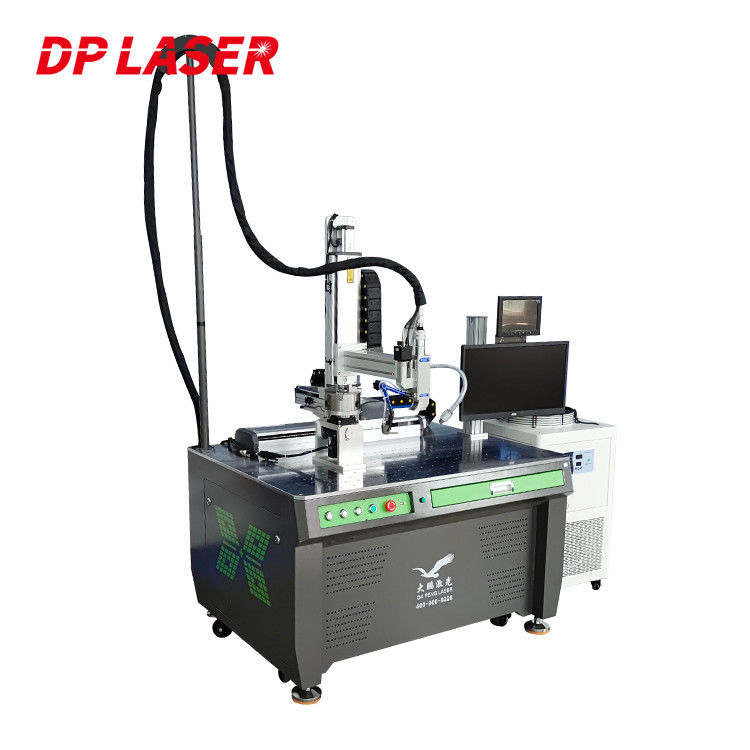

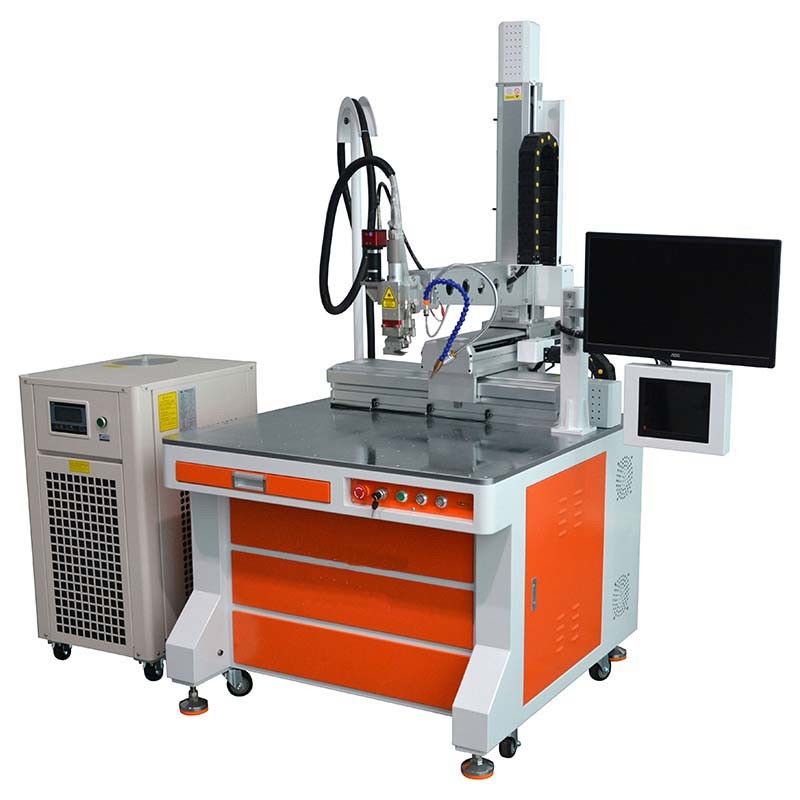

4 Axis 5 Axis Custom Fixture Battery Case Automatic Metal Fiber Laser Welding Machine

Product advantages:
The laser welding machine adopts fiber laser, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times than that of YAG laser.

Features:
1. The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2. High cooling rate, which can weld fine weld structure and good joint performance.
3. Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4. The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5. No consumables, small size, flexible processing, low operating and maintenance costs.
6. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.

Application areas:
It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace, aviation, power battery and daily necessities industries.

Technology parameters

Laser power	1500W,2000W
Center wavelength	1070nm
Output power stability	＜3%
Laser frequency	0.5Hz-100KHz
Adjustable power range	10-100%
Beam quality	1.1
Optimal operating environment	Temperature 0-40 ° C, humidity 20% -80%
Electricity demand	AC220V
Output fiber length	10m
Welding speed	0-120mm/s
Machine travel	XYZ, 50x50x50cm
Cooling method	Water Cooling
Dimensions	100cm100cm172cm
Weight	350kg

Machine configuration:

Name	Specs	Qty	Place of origin
Cabinet	Dapeng fiber welding cabinet	1	Shenzhen
Laser source	MAX/Raycus	1	China
Welding head	Wobble welding head	1	China
Chiller	2.0P	1	Shenzhen
Welding CNC system	C6	1	Wuhan
CCD camera	20 times magnification	1	Shenzhen
Servo motor	400W	2	China
Servo motor	400W with brake	1	China

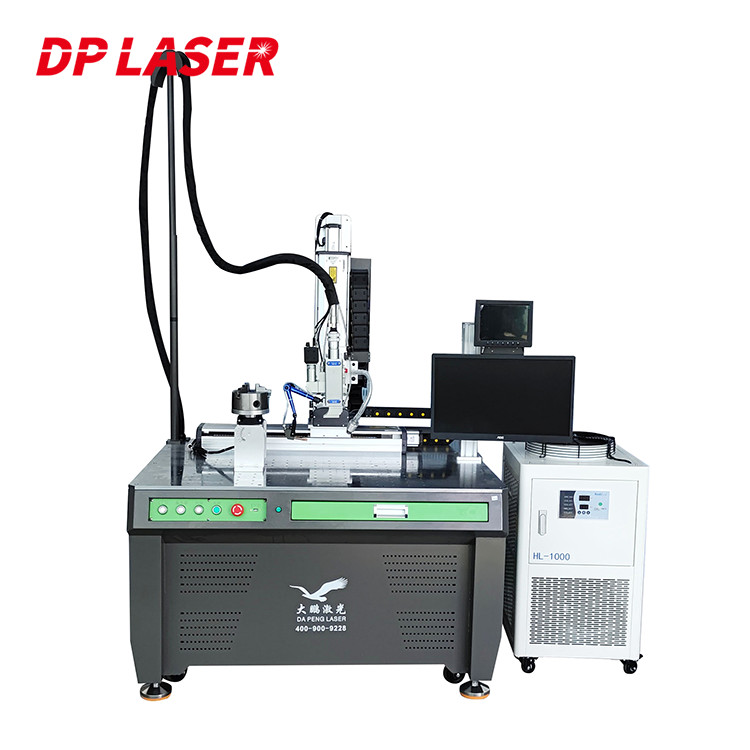

3 Axis 4 Axis Laser Fiber Welding Machine Automatic For Garment Shops 0

Laser Power	1000W-6000W
Laser Source	Raycus/Max/IPG/nLIGHT
Laser Head	Raytool/WSX/OSPRI
Fiber Wire Length	10 Meters
Laser Wavelength	1070nm
Axis	4/5 Axis
Fixture	Support Customization
Operate Mode	Continuation/Modulate
Water Chiller	Hanli
Repeating Precision	±0.01mm
Cabinet Size	100015001970mm
Machine Weight	About 350KG
Voltage	220V/3-Phase/50Hz/40A/60A

Feedback from customer:

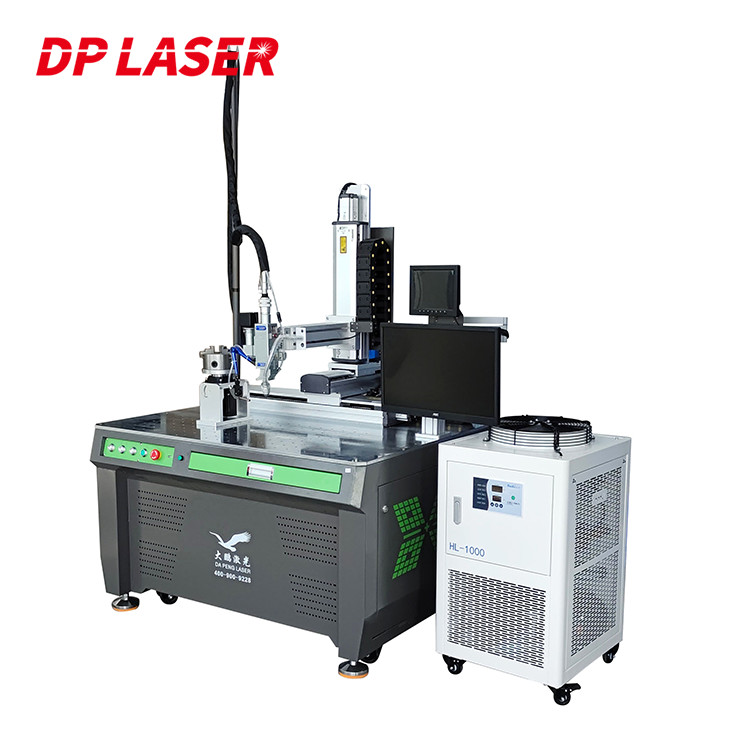

3 Axis 4 Axis Laser Fiber Welding Machine Automatic For Garment Shops 2

We are manufacturer of fiber laser cutting machine with 12 years of production experience.We offer complete machine solution,also provide laser source,CNC controller ,laserhead, water chiller,servo,custom made machine table,training and service,etc. one-stop solution!

Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.

We are looking for distributor. Price is more competitive.

We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	DAPENG
Certification:	CE ISO
Model Number:	DPH-1500

Minimum Order Quantity:	1set
Price:	USD1000-USD12500
Packaging Details:	Wooden boxes that meet international export standards
Delivery Time:	3-10 Days
Payment Terms:	T/T
Supply Ability:	60 Sets per month
