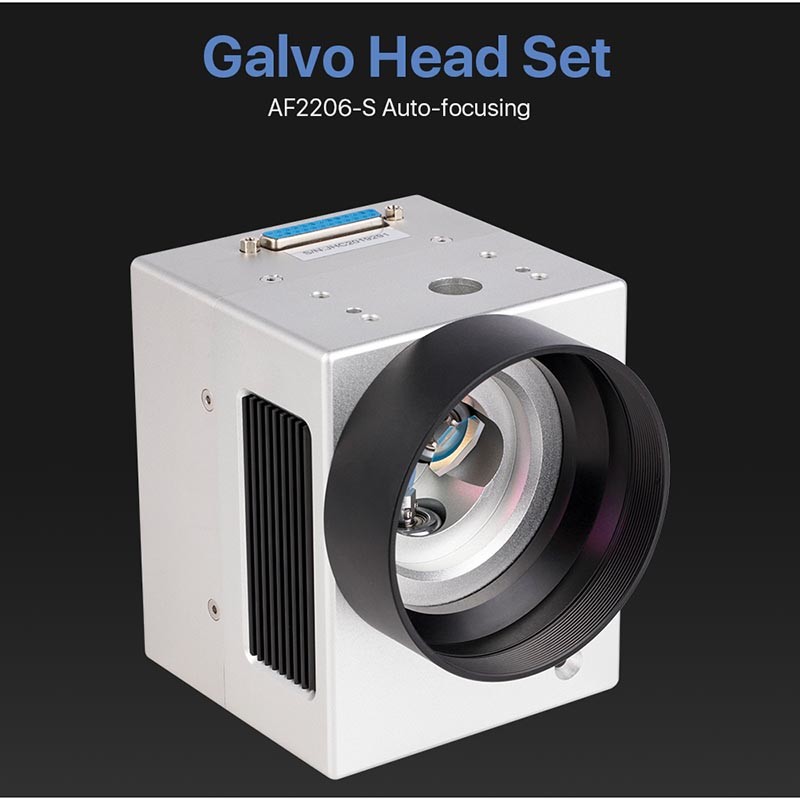

Sino Galvo High speed auto-focus galvo laser head SG2206 High-speed Galvo for fiber laser marking engraving machine
SG2206 type galvanometer has good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability and strong comprehensive performance. The specific characteristics are as follows:
■ Adopt photoelectric sensor imported from the United States.
■ Differential photoelectric sensor accurately detects the position of the motor rotor, with good linearity, small drift, high resolution and repeated positioning accuracy.
■ Precise load design for 10mm lens, high motor assembly precision, reasonable structure, small static friction coefficient and zero offset, to ensure good dynamic characteristics of the system.
■ The driver has the function of position and speed advance detection, which greatly improves the dynamic response performance and scanning speed of the whole system.
■ Designed with overload, overcurrent and reverse polarity protection, making the system more reliable.
■ The whole system adopts electromagnetic compatibility optimization design, with high signal-to-noise ratio and strong anti-interference ability.
■ Solve common problems such as galvanometer motor temperature drift, signal interference and zero drift.
Technical Parameters:
| Speed |
| Marking Speed(1) |
6000mm/s |
| Writing Speed(2) |
516cps |
| Step Response Time(1% of full scale) |
288us |
| Step Response Time(10% of full scale) |
895us |
| Tracking Error Time |
≤164us |
| Precision and Error |
| Linearity |
99.9% |
| Repeatability (RMS) |
＜8μRad |
| Gain Error |
＜5mRad |
| Zero Offset |
＜5mRad |
| Long-term Drift Over 8 Hours |
＜0.5mRad |
| Scale Drift |
＜40PPM/℃ |
| Zero Drift |
＜15μRad/℃ |
| Wavelength(3) |
10600nm / 1064nm / 355nm |
| Power and Signal |
| Input Voltage |
±15VDC |
| Rated Current |
2A |
| Interface Signal |
Digital |
XY2-100 |
| Analog |
±5V |
| Machinery Scan Angle(4) |
±11° |
| Working Current, Temperature, Dimension |
| Working Temperature |
0℃--45℃ |
| Storage Temperature |
-10℃--60℃ |
| Aperture |
10mm |
| Galvanometer Scanner Dimension (LxWxH) |
118.5x96.5x93.6mm |
| Galvanometer Scanner Weight |
≈1.65Kg |
Remarks:
The above parameters are obtained from the test after 30min of heating
(1) Use F-Theta lens, focal length 160mm, mark 2mm high single-line characters;
(2) Using F-Theta lens, the focal length is 160mm, and the number of single-line characters of 1mm height is marked per second;
(3) Special wavelength coating can be customized;
(4) The standard mechanical scanning angle is ±11°, and the Max mechanical scanning angle is ±15°, which can be customized if there are special requirements.
 |
