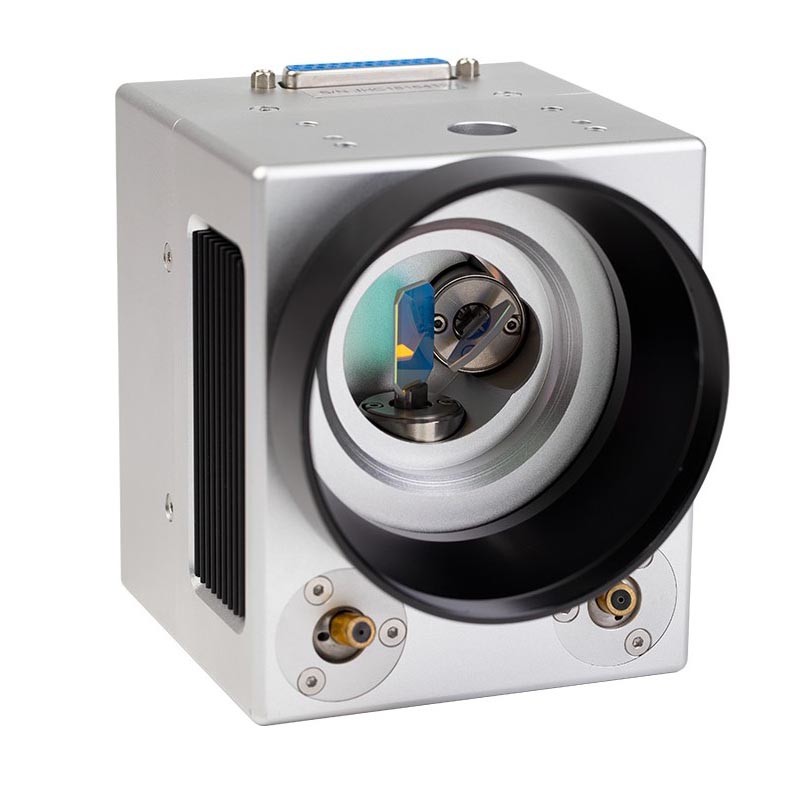

SG7110 Stable Laser Galvo Scanner Head Anti Interference Multiscene

Basic Information
Place of Origin: Guangdong, China
Minimum Order Quantity: 1 set
Price: USD100-800
Packaging Details: Carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 150 sets per month
Detail Information
Condition: New Warranty: 1 Year
After-sales Service Provided: Video Technical Support, Field Maintenance And Repair Service, Online Support, Field Installation, Commissioning And Training Video Outgoing-inspection: Provided
Machinery Test Report: Provided Key Selling Points: Competitive Price
Keywords: SINO Galvo SG7110 Fiber Scanhead After-sales Service: Overseas Engineers Provide Door-to-door Service
High Light:

Stable Laser Galvo Scanner

,

Laser Galvo Scanner Anti Interference

,

Multiscene Galvo Scan Head


Product Description

SINO Galvo SG7110 fiber scanhead For fiber laser marking machine



Sino Galvo Low price SG7110 galvo scanner in pocket size for laser marking device



SG7110 type galvanometer has good running stability, high positioning accuracy, fast marking speed and strong anti-interference ability. The specific characteristics are as follows:



■ Adopt photoelectric sensor imported from the United States.

■ Differential photoelectric sensor accurately detects the position of the motor rotor, with good linearity, small drift, high resolution and repeated positioning accuracy.

■ Precise load design for 10mm lens, high motor assembly precision, reasonable structure, small static friction coefficient and zero offset, to ensure good dynamic characteristics of the system.

■ The driver has the function of position and speed advance detection, which greatly improves the dynamic response performance and scanning speed of the whole system.

■ Designed with overload, overcurrent and reverse polarity protection, making the system more reliable.

■ The whole system adopts electromagnetic compatibility optimization design, with high signal-to-noise ratio and strong anti-interference ability.

■ Solve common problems such as galvanometer motor temperature drift, signal interference and zero drift.



Technical Parameters:

Speed
Marking Speed(1) 5000mm/s
Writing Speed(2) 450cps
Step Response Time(1% of full scale) 350us
Step Response Time(10% of full scale) 750us
Tracking Error Time ≤164us
Precision and Error
Linearity 99.9%
Repeatability (RMS) <8μRad
Gain Error <5mRad
Zero Offset <5mRad
Long-term Drift Over 8 Hours <0.5mRad
Scale Drift <40PPM/℃
Zero Drift <15μRad/℃
Wavelength(3) 10600nm / 1064nm / 355nm
Power and Signal
Input Voltage ±15VDC
Rated Current 2A
Interface Signal Digital XY2-100
Analog ±5V
Machinery Scan Angle(4) ±11°
Working Current, Temperature, Dimension
Working Temperature 0℃--45℃
Storage Temperature -10℃--60℃
Aperture 10mm
Galvanometer Scanner Dimension (LxWxH) 118.5x96.5x93.6mm
Galvanometer Scanner Weight ≈1.65Kg



SG7110 Stable Laser Galvo Scanner Head Anti Interference Multiscene 0
SINO Galvo SG7110 fiber scanhead For fiber laser marking machine


SG7110 Stable Laser Galvo Scanner Head Anti Interference Multiscene 1SG7110 Stable Laser Galvo Scanner Head Anti Interference Multiscene 2SG7110 Stable Laser Galvo Scanner Head Anti Interference Multiscene 3SG7110 Stable Laser Galvo Scanner Head Anti Interference Multiscene 4SG7110 Stable Laser Galvo Scanner Head Anti Interference Multiscene 5

SG7110 Stable Laser Galvo Scanner Head Anti Interference Multiscene 6SG7110 Stable Laser Galvo Scanner Head Anti Interference Multiscene 7
SG7110 Stable Laser Galvo Scanner Head Anti Interference Multiscene 8SG7110 Stable Laser Galvo Scanner Head Anti Interference Multiscene 9SG7110 Stable Laser Galvo Scanner Head Anti Interference Multiscene 10
