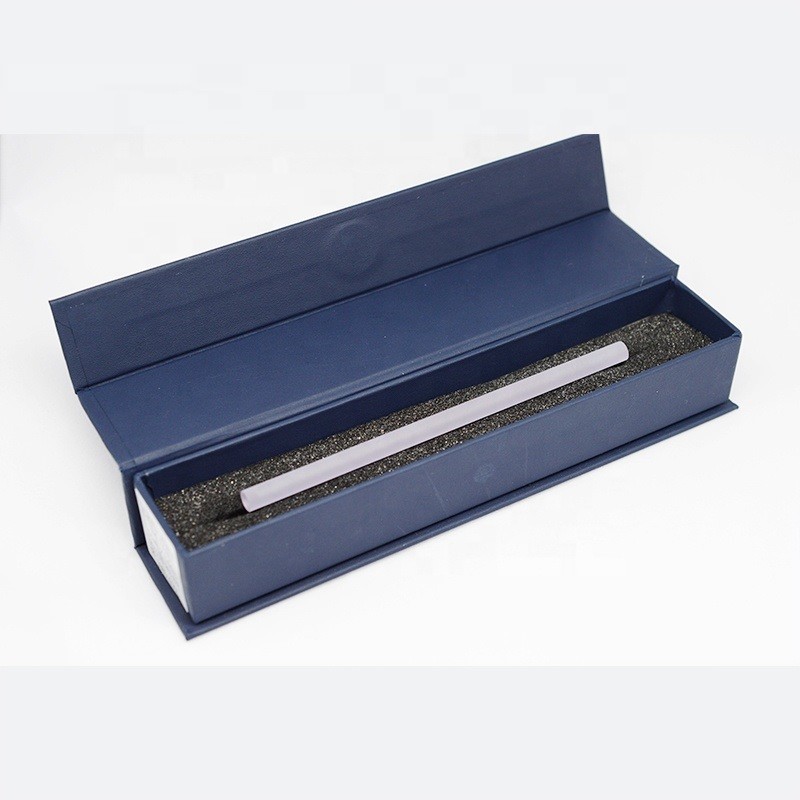

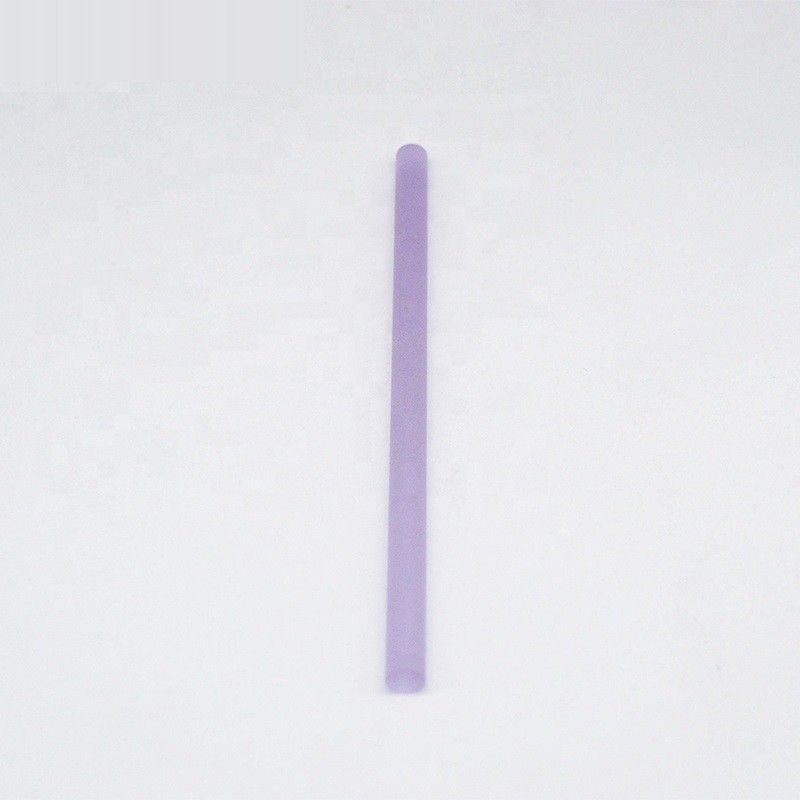

Nd YAG Laser Rod / Yag Crystal / Laser crystal rod yag 1064nm Nd YAG Laser Crystal Rod
The ND:YAG continues as the best of the rare earth garnet materials that are characterized by four-level laser operation which permits low threshold pulse and cw operation.
Advantages of Nd:YAG Include:
High gain
Low threshold
High efficiency
Low loss at 1.06μm
Good thermal conductivity and thermal shock characteristics
Mechanical strength
High optical quality
Material characteristics that allow for various modes of operation
(CW,pulsed,Q-switched,mode locked,and cavity dumped)
Our general Nd:YAG production capabilities include:
Slab-Custom Geometries
Rod sizes form 2mm to 15mm in diameter and from 1mm to 220 mm in length
Nd dopant concentrations between 0.1 and 1.3%
Polished and AR coated barrels
MIL-C-675C adhesion,abrasion and humidity resistance
Damage threshold of over 15 J/cm2
A wide variety of anti-reflection,partial reflector,high reflector and dichroic coatings
Premium grade Nd:YAG,with lower wavefront distortion,is available upon request
Doping concentration Nd: | 0.2 to 1.3 at% |
Crystal orientation [111] or [100] | within 5 ° of deviation |
Crystal bar size | Diameter: 2 ~ 15 mm, length: 3 ~ 200 mm (Can be customized according to customer requirements) |
Dimensional tolerances | Diameter: + 0.00 / -0.05mm, length: ± 0.5mm |
Cylindrical processing | 400 # abrasive grinding or polishing |
End parallelism | ≤ 10 " |
Contour of the end face and the rod | ≤ 5 ' |
Face flatness | Λ / 10 @ 632.8 nm |
Surface Quality | 10-5 (MIL-O-13830A) |
Downside down | 0.15 ± 0.05mm |
Antireflection film reflectivity | ≤ 0.25% @ 1064nm |
Film resistance to laser damage threshold | ≥ 500MW / cm2 |
Nd:YAG(Neodimium Doped Yttrium Aluminum Garnet) has been and continue to be the most widely used laser crystal for solid-state crystal material. Its laser parameters are a good compromise between the strengths and weaknesses of its competition. Nd:YAG crystals are used in all types of solid-state lasers systems-frequency-doubled continuous wave, high-energy Q-switched, and so forth. Compared with others laser crystals, its fluorescence lifetime is twice more than Nd:YVO4, and thermal conductivity is also better
![]() |
1064nm Nd YAG Laser Crystal Rod |
