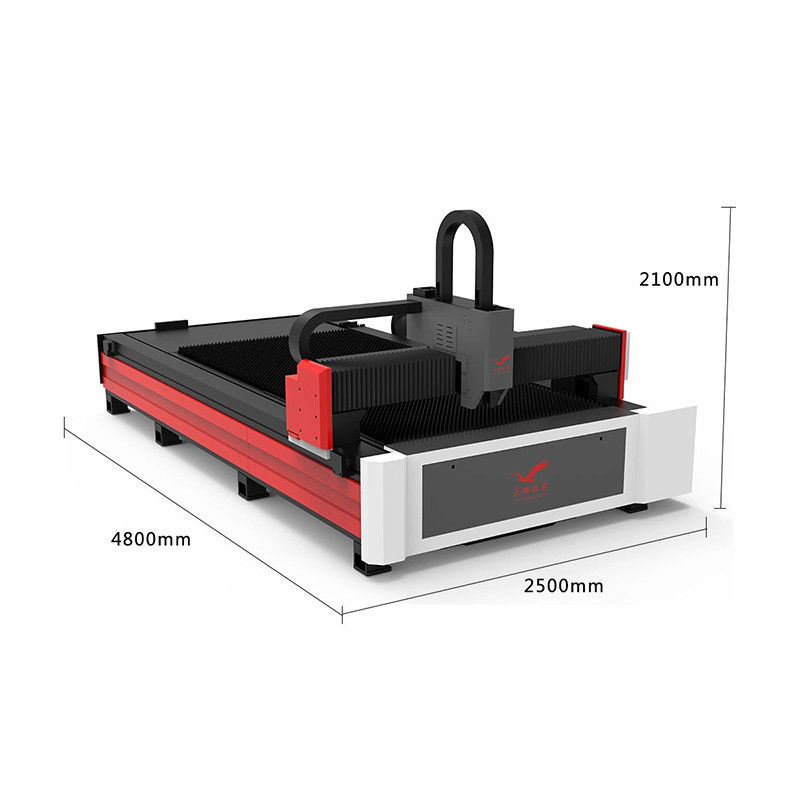

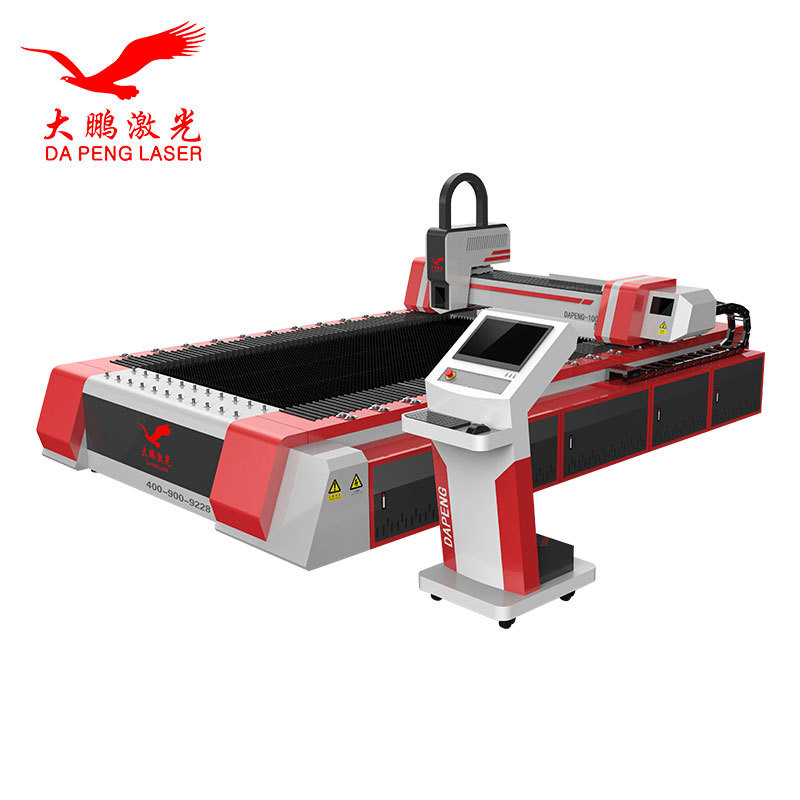

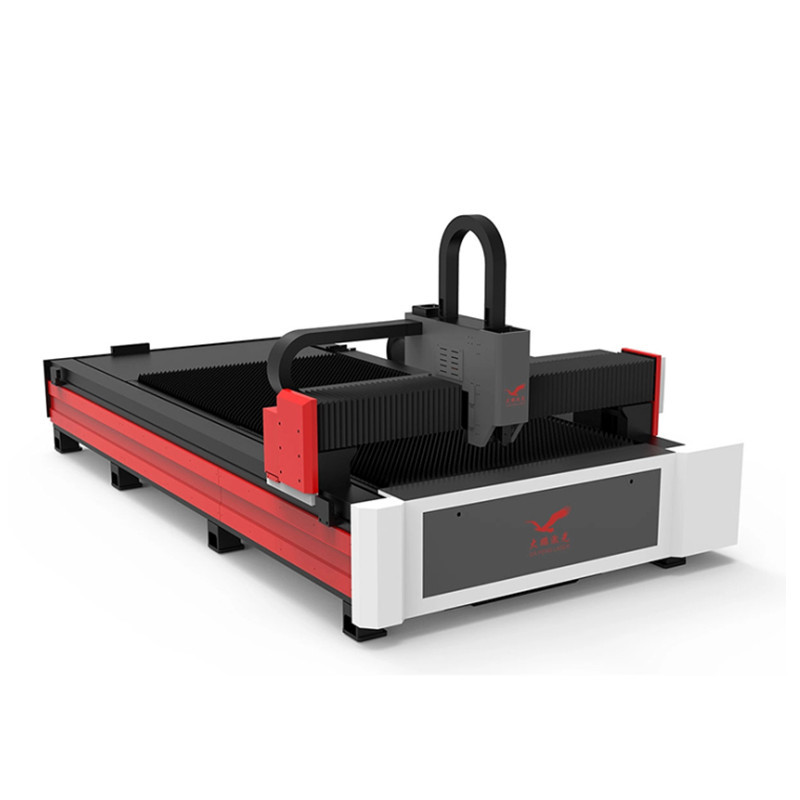

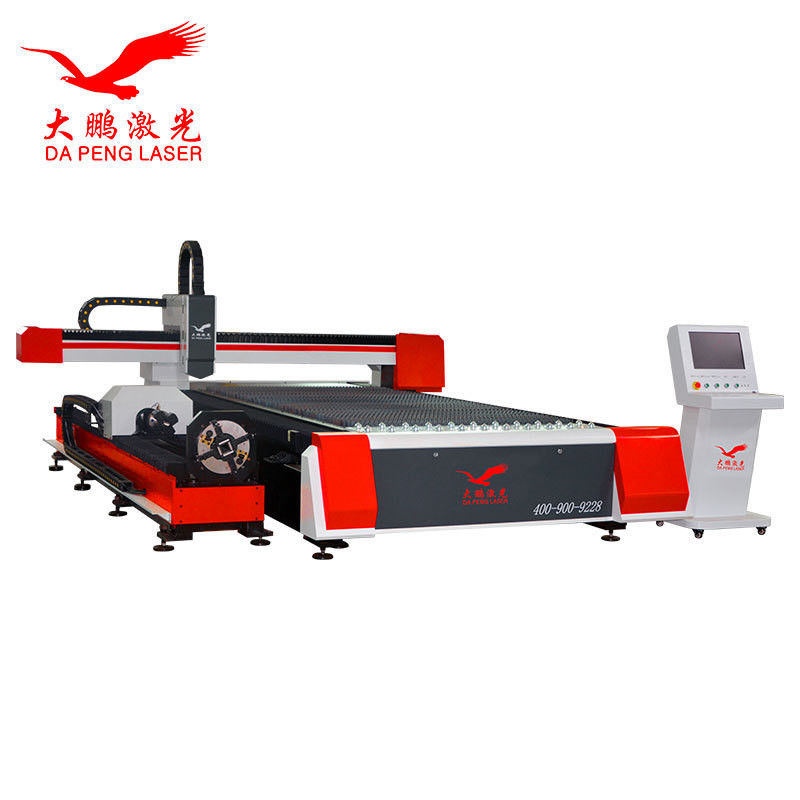

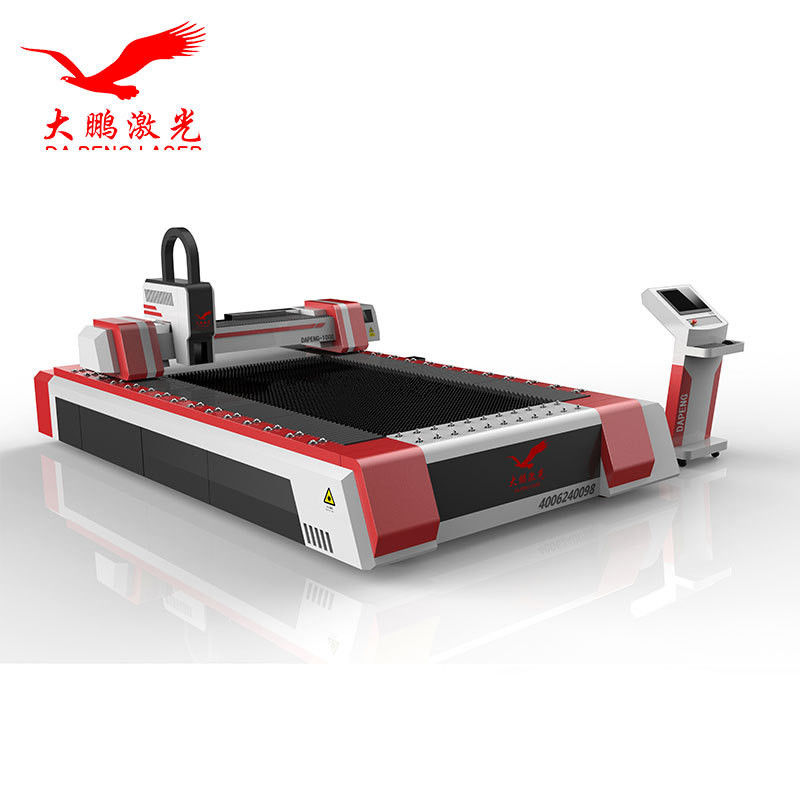

Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum

Basic Information
Place of Origin: Guangdong, China
Brand Name: DAPENG
Certification: CE, ISO
Minimum Order Quantity: 1 set
Price: USD1000-25000
Packaging Details: Plywood box
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detail Information
Application: LASER CUTTING Condition: New
Laser Type: Fiber Laser Cutting Area: 1500mm*3000mm
Cutting Speed: 120m/min Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness: 0-80mm CNC Or Not: Yes
Cooling Mode: WATER COOLING Control Software: Cypcut
Laser Source Brand: RAYCUS / IPG / NLIGHT / MAX (Optional) Laser Head Brand: WSX
Servo Motor Brand: YASKAWA / SCHNEIDER / MOTOR POWER(Optional) Guiderail Brand: HIWIN
Control System Brand: Cypcut Weight (KG): 4800 KG
Key Selling Points: Automatic Optical Lens Brand: Wavelength
Warranty: 1 Year Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Mode Of Operation: Continuous Wave Products Handled: Sheet Metal
Feature: Automated Loading Product Name: Laser Cutting Machine
Laser Source Type: Fiber Source Laser Wavelength: 1070nm
Laser Output Power: 500W-6000W Cutting Range: 3000*1500mm
Minimum Line Width: <0.1mm Cooling Method: Water Cooling
X/Y Positioning Accuracy: 0.03mm Transfer Method: Precision Rack Dual Drive
Keywords: Metal Laser Cutter Port: China Or Shenzhen Ports
High Light:

Metal Laser Cutting Machine

,

Laser Cutting Machine 120m/min

,

Aluminum Laser Fiber Cutting Machine


Product Description

Product Description
2022 New Design Fiber Laser Cutting Machine Carbon Iron Aluminum Metal Laser Cutting Machine For Manufacturing Plant
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 0
Specification
Model
DPE-F3015J
DPE-F4015J
Laser source type
Fiber source
Fiber source
Laser Out Power
1070nm
1070nm
Laser wavelength
500W-6000W
500W-6000W
Cutting range
3000×1500mm
4000×1500mm
Minimum line width
<0.1mm
<0.1mm
Transfer method
Precision rack dual drive
Precision rack dual drive
Cutting speed and thickness
Depending on  specific material
Depending on specific material
Repeatability
±0.02mm
±0.02mm
Machine operating temperature
0~40℃
0~40℃
Electricity demand
380V/50Hz
380V/50Hz
Cooling method
Water cooling
Water cooling
Continuous operating time
24 hours
24 hours
Weight
8500-12500KG
8500-12500KG
Dimensions
8500×2950×1900mm
5700×2680×2000mm
Maximum operating speed
120m/min
120m/min
Maximum acceleration
1.5G
1.5G
X/Ypositioning accuracy
0.03mm
0.03mm
Minimum slit width
0.15mm
0.15mm
Features:
Automatic exchange fiber laser cutting machine · High-rigidity machine bed, exclusive high-temperature numerical control furnace annealing process, can guarantee the stability of the machine tool for a long time; · Imported original packaged fiber laser, good beam quality, stable performance, non-reflective lenses, no need to adjust the optical path, basic maintenance-free, the service life of up to more than 100,000 hours; · The fiber laser has high electro-optical conversion efficiency and conversion efficiency can reach 30%, which can greatly save power consumption during operation and has extremely low operating costs. · Cutting speed, operating costs are extremely low, rapid return on investment. Can cut a variety of metal sheet, pipe(cut pipe plus pipe cutting device), mainly applies to stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum plate, manganese steel, various alloy plates, rare Rapid cutting of metal and other materials.
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 1
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 2
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 3
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 4
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 5
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 6
Company Profile
Shenzhen Dapeng Laser Technology Co, Ltd. was established in 2011. It is a laser equipment high-tech enterprise that integrates R&D, manufacturing, sales and service. It is dedicated to laser process R&D, laser equipment design R&D, production, technical support, service and consulting. Our company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc, applied to electronics, IC chips, electrical appliances, lighting fixtures, jewelry, hardware tools, sanitary ware, instruments Instrumentation, automobile and motorcycle accessories, mobile phone communications components, molds, precision machinery, medical equipment, IT digital, metal housing, military aviation components, garment leather, craft gifts, advertising decoration, models, cookware, kitchen utensils and other industries. Dapeng laser product quality are stable and reliable, with a professional R & D team, while pursuing excellent quality, Dapeng laser also provides customers with timely, comfortable pre-sale, sales, after-sales service and excellent cost-effective products. Dapeng Laser has won the trust and praise of customers by implementing the business philosophy of "helping customers succeed, creating value models, and building industrial laser equipment industry to serve high-end brands". Customers are located throughout the country and overseas. In 2016, sold more than 5,000 laser equipment. Our company has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services.
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 7
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 8
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 9
Our Workshop
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 10
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 11
Why Choose US
Dapeng Laser has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services. Dapeng people know that quality and service are fundamental to the survival of the company. Innovation is the foundation for the long-tem development of the company. It helps customers create value and strives to build a well-known brand in the laser equipment industry.
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 12
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 13
Laser Welding Machine Team
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 14
Laser Cutting Machine Team
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 15
Oversea Marketing Team
Our Exhibition
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 16
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 17
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 18
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 19
Our Certificates
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 20
CE
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 21
ISO
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 22
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 23
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 24
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 25
Packing & Delivery
We support to ship via Sea, Railway,Air, Express(UPS, DHL, EMS, Swiss Post, HongKong Post, FedEx, TNT). You also can choose the shipping method you like if you prefer another courier.
Metal Fiber Laser Cutting Machine 120m/Min For Carbon Iron Aluminum 26
FAQ:
Q1: How do I know which model is suitable for my product application?
You just need to tell us the following information then we can offer you a suitable solution? In addition, you can also send us the sample and we will arrange professional engineers for proofing evaluation
1) What is your product? material? thickness? required accuracy?
2) What is the current production process?
3) What is your desired budget and delivery time.
Q2: When I get this machine, but I don't know how to use it. What should I do?
We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly. And for some countries , like in India, Malaysia, Korea,Spain, we have local support team, more countries will be in the picture soon.
Q3: How can I do if the machine goes wrong?
We guarantee machine quality for 13 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer in best delivery. Besides guarantee period, we still provide you free online services for life.If parts broken, you can order replacement parts from us.
Q4. Can you customized product according to different application?
Yes, Dapeng laser is very dedicated to combine with our current ability with the main leading supplier to offer you the customized application.
Q5:What if there are gaps in my product which need to weld?
For laser welding machines, we are usually equipped with automatic wire feeding system. For products with gaps, you can use wire feeding mechanism for wire filling welding
Q6. What is your normal lead time?
Generally standard machine, our lead time is 2-7 days after PO confirmed. Customized product need a little longer.
Q7. Will the package damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition
Q8:Why should I choose DAPENG LASER compared with other companys?
We are factory with 453 employees, turnover reached 100 millions USD in 2021, ISO 9001 certificated and most products are CE/SGS approoved, can offer you a high-quality pre-sale, in-sale and after-sales solution.
