3 Axis Laser Cutting Machine Stable High Precision For Art Craft Industry

Basic Information
Place of Origin: Guangdong, China
Brand Name: DAPENG
Certification: CE, ISO
Model Number: DPE-F1500
Minimum Order Quantity: 1 set
Price: USD1000-35000
Packaging Details: Plywood box
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detail Information
Application: LASER CUTTING Condition: New
Laser Type: Fiber Laser Cutting Area: 600mm*600mm
Cutting Speed: 120m/min Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness: 0-80mm CNC Or Not: Yes
Cooling Mode: WATER COOLING Control Software: Cypcut
Laser Source Brand: RAYCUS / IPG / NLIGHT / MAX (Optional) Laser Head Brand: WSX
Servo Motor Brand: YASKAWA / SCHNEIDER / MOTOR POWER(Optional) Guiderail Brand: HIWIN
Control System Brand: Cypcut Weight (KG): 2000 KG
Key Selling Points: Automatic Optical Lens Brand: Wavelength
Warranty: 1 Year Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Mode Of Operation: Continuous Wave Configuration: 3-axis
Products Handled: Sheet Metal Feature: Automated Loading
Product Name: Laser Cutting Machine Laser Source Type: Fiber Source
Laser Wavelength: 1070nm Laser Output Power: 1500W-3000W
Cutting Range: 600*600mm Minimum Line Width: <0.1mm
Cooling Method: Water Cooling X/Y Positioning Accuracy: 0.03mm
Transfer Method: Precision Rack Dual Drive Keywords: Metal Laser Cutter
High Light:

3 Axis Laser Cutting Machine

,

Laser Cutting Machine Stable

,

Art Craft High Precision Laser Cutter


Product Description

Product Description
Depeng Factory Supply High Precision Small Laser Cutter Laser Cutting Machine For Art Craft Industry
3 Axis Laser Cutting Machine Stable High Precision For Art Craft Industry 0
Specification
Model
DPE-0606L
Laser source type
Fiber source
Laser Out Power
1070nm
Laser wavelength
500W-2200W
Cutting range
600×600mm
Minimum line width
<0.1mm
Transfer method
Double Drive Linear Motor
Cutting speed and thickness
Depending on  specific material
Repeatability
±0.02mm
Machine operating temperature
0~40℃
Electricity demand
380V/50Hz
Cooling method
Water cooling
Continuous operating time
24 hours
Weight
6500KG
Dimensions
1850×1400×1900mm
Maximum operating speed
120m/min
Maximum acceleration
1.2G
X/Ypositioning accuracy
0.03mm
Minimum slit width
0.15mm
Features:

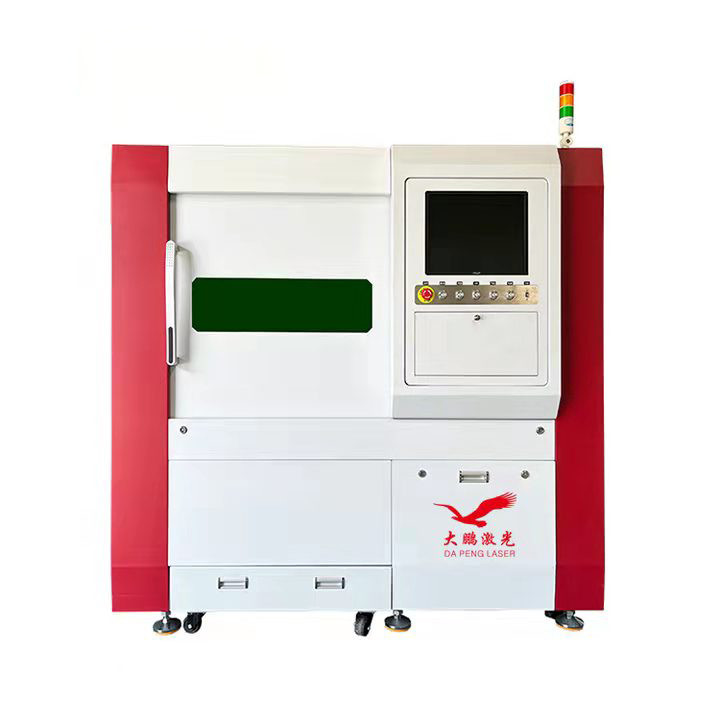

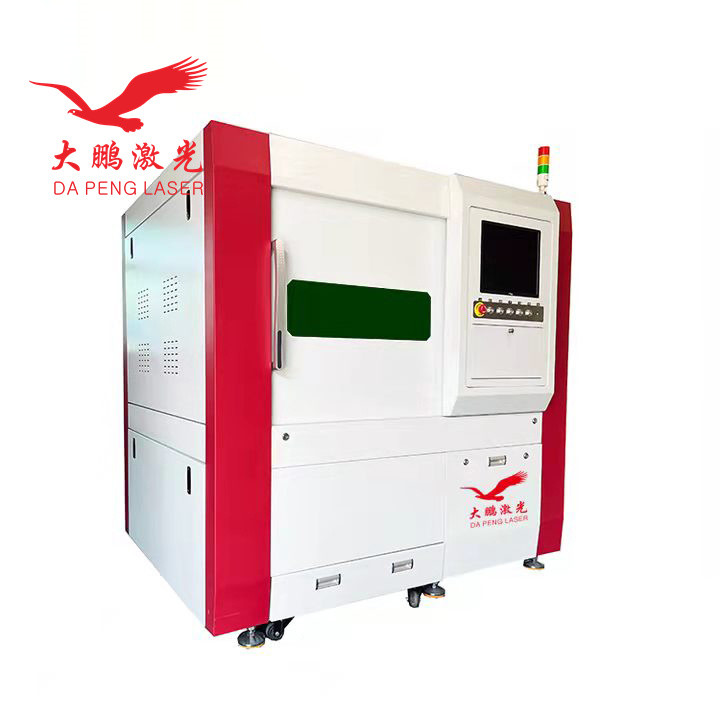

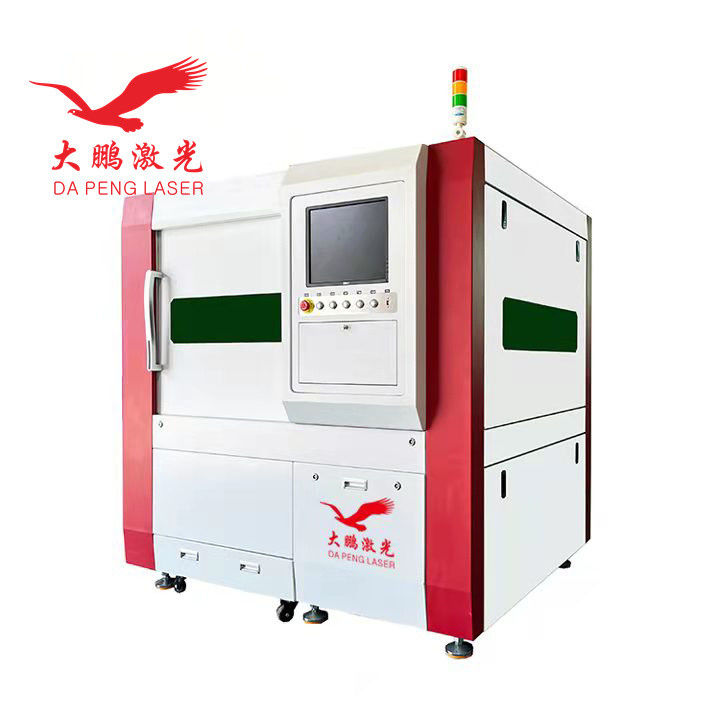

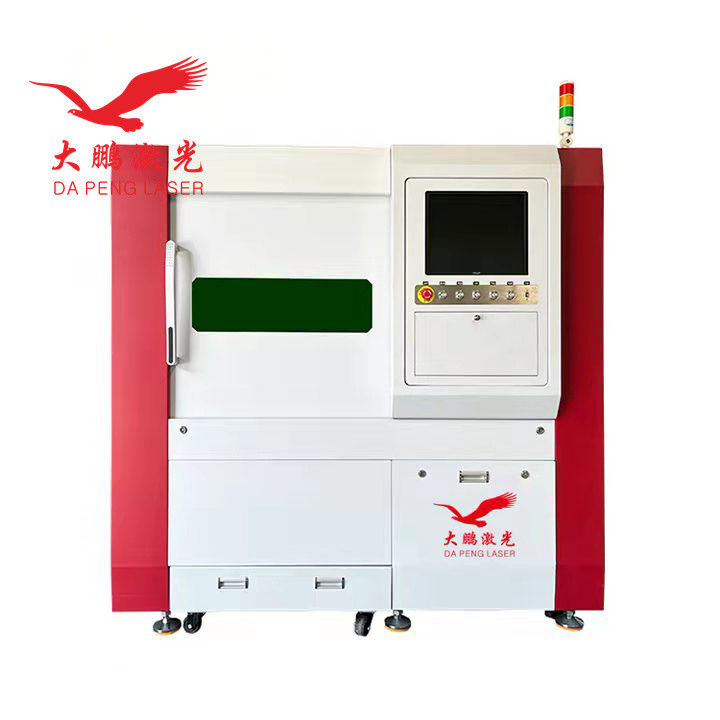

0606L Fiber precision Laser Cutting Machine
Adopt gantry type structure, linear motor, guide rails adopt fully enclosed protection, reduce dust pollution; Double-side drive with linear motor, high precision, high acceleration, fast speed;
Laser processing is a non-contact flexible processing, not affected by the shape of the workpiece, can process arbitrary graphics;
Dedicated laser control system, powerful, quick to master, low entry to technical personnel. Can cut a variety of metal foil, mainly used for silver foil, copper foil;
Mainly used in jewelry, glasses and other industries.
3 Axis Laser Cutting Machine Stable High Precision For Art Craft Industry 1
3 Axis Laser Cutting Machine Stable High Precision For Art Craft Industry 2
3 Axis Laser Cutting Machine Stable High Precision For Art Craft Industry 3
3 Axis Laser Cutting Machine Stable High Precision For Art Craft Industry 4
