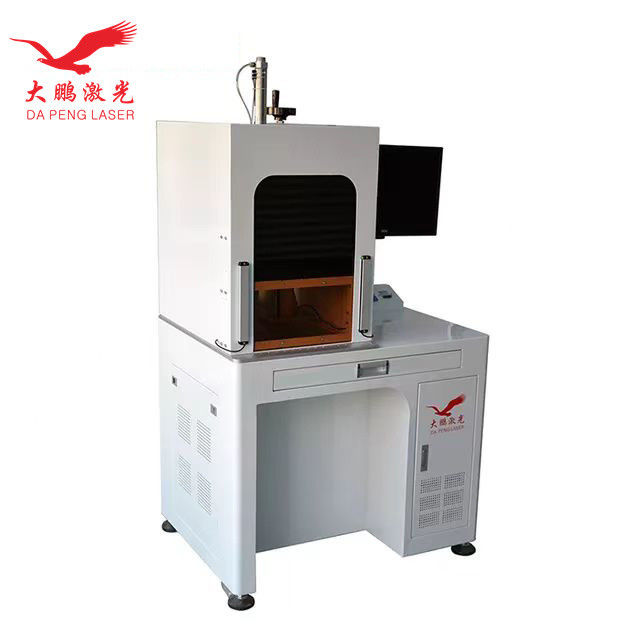

Multipurpose Silver Laser Engraving Machine Stable For Jewelry

Basic Information
Place of Origin: Guangdong, China
Brand Name: DAPENG
Certification: CE, ISO
Model Number: YLP-30
Minimum Order Quantity: 1 set
Price: USD1000-3500
Packaging Details: Plywood box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 150 sets per month
Detail Information
Application: Laser Marking Working Accuracy: 0.01mm
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, CDR Laser Type: Fiber Laser
Condition: New CNC Or Not: Yes
Cooling Mode: Air Cooling Control Software: EZ CAD
Laser Source Brand: MAX, JPT, Raycus, IPG Control System Brand: EZCAD
Marking Head Brand: Ouya, Scanlab Weight (KG): 150 KG
Key Selling Points: Energy Saving Warranty: 1 Year
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works , Energy & Mining, Other Marking Area: 110mm*110mm
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1.5 Years Core Components: Source, Laser Source
Mode Of Operation: Pulsed Configuration: Bench-top
Feature: Deep Marking Product Name: Jewelry Ring Laser Marking Machine
Size: 80*65*148cm Function: Marking Logo Metal
Laser Power: 20W,30W,50W,100W Working Area: 100mm-400mm (optional)
Welding Material: Stainless Steel Stud Power Supply: AC 220V+-10% 50/60Hz
Minimum Character Size: 0.15*0.15mm Resetting Positioning Accuracy: 0.002mm
Keywords: Fiber Laser Marking Machine For Jewelry Port: China Or Shen Zhen Ports
High Light:

Multipurpose Silver Laser Engraving Machine

,

Silver Laser Engraving Machine Stable

,

Jewelry UV Laser Engraving Machine


Product Description

Product Description
Sign Name Logo Diamond Brass Silver Gold 50W 30W 20W Portable Engraving Jewelry Fiber Laser Marking Machine With Rotary Tools
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 0
Specification
Model
FC-20
FC-30
FC-50
FC-100
Laser source type
Fiber source
Fiber source
Fiber source
Fiber source
Laser Out Power
20W
30W
50W
100W
Laser wavelength
1064nm
1064nm
1064nm
1064nm
Laser Source
Raycus/Max/IPG
Raycus/Max/IPG
Raycus/Max/IPG
Raycus/Max/IPG
Laser frequency
<0.6KW
<0.6KW
<0.6KW
<0.6KW
Repeatability
±0.002mm
±0.002mm
±0.002mm
±0.002mm
Machine operating temperature
0~40℃
0~40℃
0~40℃
0~40℃
Electricity demand
Ac220V±10%.
50HZ.5Amp
Ac220V±10%.
50HZ.5Amp
Ac220V±10%.
50HZ.5Amp
Ac220V±10%.
50HZ.5Amp
Cooling method
Air cooled
Air cooled
Air cooled
Air cooled
Continuous operating time
24 hours
24 hours
24 hours
24 hours
Weight
130kg
130kg
130kg
130kg
Dimensions
80*65*142cm
80*65*142cm
80*65*142cm
80*65*142cm
Software
EZCAD
EZCAD
EZCAD
EZCAD
True Type Fonts

Single Stroke Fonts

Elliptical Text
Sequential Serial Numbers

Customizable Auto Dating

Barcodes
QR Codes and Data Matrix

UID Wizard

Logo
Photo Quality Images - JPG, TIF, GIF

Corel Draw, Adobe Illustrator

Raster Graphics
Vector Graphics

CAD Files


Metal Industry, Jewelry Factories, Hardware Tools, Electronics Components, Auto Parts, Mobile & Accessories, Clock&Watches,Planting Coating Materials, Spray Material, Plastic, Spectacles,etc.









Stainless Steel

Steel

Aluminum, Carbide
Nickel

Titanium

Cast Iron
Chrome

Painted Metal Alloys

Multi-Coated Metals
Plastics/Rubber

Backlit Buttons

Polycarbonate
PVC

Composites

Many more materials
Features:
• Environmental friendly, easy operation and maintenance • Service life able to reach 100,000 hours • Fits for all metal and varies non-metal materials • Compact design, simple interface, high precision • Flexible and adjustable processing direction Electronic Components :
Resistance, capacitance, chips, printed circuit boards, computer keyboard. Apparatus And Meter: Panel signs, precision equipment ,etc., Instrument: Panel signs nameplates, precision equipment ,etc., Hardware Tools : Knives, tools, measuring tool, cutting tool, etc., Automobile Parts : Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc., Mechanical Parts : Bearings, gears, standard parts, motors, etc., Daily Necessities : Handicrafts, zipper, key holder, sanitary ware, etc., Jewelry: Rings Jewelry, gold, silver,etc. Food, drinking packing: Plastic packings,etc.

Package Content • Complete Machine • CCD Visual System • Conveyer • Industrial Computer • Laser Marking Software (English Version) • CCD Visual Marking Software (English Version) • Tutorial Video
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 1
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 2
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 3
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 4
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 5
Company Profile
Shenzhen Dapeng Laser Technology Co, Ltd. was established in 2011. It is a laser equipment high-tech enterprise that integrates R&D, manufacturing, sales and service. It is dedicated to laser process R&D, laser equipment design R&D, production, technical support, service and consulting. Our company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc, applied to electronics, IC chips, electrical appliances, lighting fixtures, jewelry, hardware tools, sanitary ware, instruments Instrumentation, automobile and motorcycle accessories, mobile phone communications components, molds, precision machinery, medical equipment, IT digital, metal housing, military aviation components, garment leather, craft gifts, advertising decoration, models, cookware, kitchen utensils and other industries. Dapeng laser product quality are stable and reliable, with a professional R & D team, while pursuing excellent quality, Dapeng laser also provides customers with timely, comfortable pre-sale, sales, after-sales service and excellent cost-effective products. Dapeng Laser has won the trust and praise of customers by implementing the business philosophy of "helping customers succeed, creating value models, and building industrial laser equipment industry to serve high-end brands". Customers are located throughout the country and overseas. In 2016, sold more than 5,000 laser equipment. Our company has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services.
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 6
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 7
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 8
Our Workshop
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 9
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 10
Why Choose US
Dapeng Laser has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services. Dapeng people know that quality and service are fundamental to the survival of the company. Innovation is the foundation for the long-tem development of the company. It helps customers create value and strives to build a well-known brand in the laser equipment industry.
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 11
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 12
Laser Welding Machine Team
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 13
Laser Cutting Machine Team
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 14
Oversea Marketing Team
Our Exhibition
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 15
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 16
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 17
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 18
Our Certificates
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 19
CE
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 20
ISO
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 21
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 22
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 23
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 24
Packing & Delivery
We support to ship via Sea, Railway,Air, Express(UPS, DHL, EMS, Swiss Post, HongKong Post, FedEx, TNT). You also can choose the shipping method you like if you prefer another courier.
Multipurpose Silver Laser Engraving Machine Stable For Jewelry 25
FAQ:
Q1: How do I know which model is suitable for my product application?
You just need to tell us the following information then we can offer you a suitable solution? In addition, you can also send us the sample and we will arrange professional engineers for proofing evaluation
1) What is your product? material? thickness? required accuracy?
2) What is the current production process?
3) What is your desired budget and delivery time.
Q2: When I get this machine, but I don't know how to use it. What should I do?
We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly. And for some countries , like in India, Malaysia, Korea,Spain, we have local support team, more countries will be in the picture soon.
Q3: How can I do if the machine goes wrong?
We guarantee machine quality for 13 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer in best delivery. Besides guarantee period, we still provide you free online services for life.If parts broken, you can order replacement parts from us.
Q4. Can you customized product according to different application?
Yes, Dapeng laser is very dedicated to combine with our current ability with the main leading supplier to offer you the customized application.
Q5:What if there are gaps in my product which need to weld?
For laser welding machines, we are usually equipped with automatic wire feeding system. For products with gaps, you can use wire feeding mechanism for wire filling welding
Q6. What is your normal lead time?
Generally standard machine, our lead time is 2-7 days after PO confirmed. Customized product need a little longer.
Q7. Will the package damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition
Q8:Why should I choose DAPENG LASER compared with other companys?
We are factory with 453 employees, turnover reached 100 millions USD in 2021, ISO 9001 certificated and most products are CE/SGS approoved, can offer you a high-quality pre-sale, in-sale and after-sales solution.
