Name: AC 220V Handheld Laser Marker , Portable Laser Marking Machine For Metal
Brand: DAPENG
SKU: YLP-20
Price: 1000 USD
Availability: InStock
Rating: 4.9 (156 reviews)

Detail Information

Application:	Laser Marking	Working Accuracy:	0.01mm
Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, CDR	Laser Type:	Fiber Laser
Condition:	New	CNC Or Not:	Yes
Cooling Mode:	Air Cooling	Control Software:	EZ CAD
Laser Source Brand:	MAX, JPT, Raycus, IPG	Control System Brand:	EZCAD
Marking Head Brand:	Ouya, Scanlab	Weight (KG):	50 KG
Key Selling Points:	Energy Saving	Warranty:	1 Year
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works , Energy & Mining, Other	Marking Area:	110mm*110mm
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1.5 Years	Core Components:	Source, Laser Source
Mode Of Operation:	Pulsed	Configuration:	Bench-top
Feature:	Deep Marking	Product Name:	Desktop Laser Marking Machine
Size:	57cm21cm67cm	Function:	Marking Logo
Laser Power:	20W,30W,50W	Working Area:	100mm-400mm (optional)
Marking Material:	SS CS Aluminum Metal Plastic	Power Supply:	AC 220V+-10% 50/60Hz
Minimum Character Size:	0.15*0.15mm	Resetting Positioning Accuracy:	0.002mm
Keywords:	Fiber Laser Marking Engraving Machine	Port:	China Or Shenzhen Ports
High Light:	220V Handheld Laser Marker , Metal Handheld Laser Marker , Portable Laser Marking Machine For Metal

Product Description

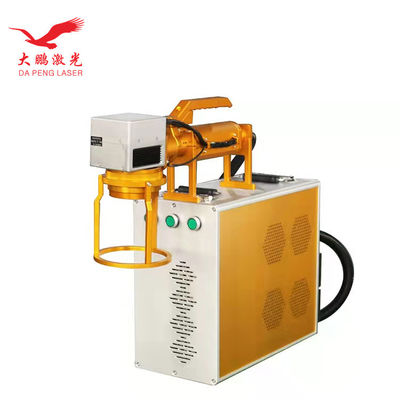

Dapeng Laser 20W 30W Portable Mini Handheld Date Logo Metal Plastic Fiber Laser Marking Machine

Model	YLP-20	YLP-30	YLP-50
Laser source type	Fiber source	Fiber source	Fiber source
Laser Out Power	20W	30W	50W
Laser wavelength	1064nm	1064nm	1064nm
Laser Source	Raycus/Max/IPG	Raycus/Max/IPG	Raycus/Max/IPG
Laser frequency	<0.6KW	<0.6KW	<0.6KW
Repeatability	±0.002mm	±0.002mm	±0.002mm
Machine operating temperature	0~40℃	0~40℃	0~40℃
Electricity demand	Ac220V±10%. 50HZ.5Amp	Ac220V±10%. 50HZ.5Amp	Ac220V±10%. 50HZ.5Amp
Cooling method	Air cooled	Air cooled	Air cooled
Continuous operating time	24 hours	24 hours	24 hours
Weight	130kg	130kg	130kg
Dimensions	57cm21cm67cm	57cm21cm67cm	57cm21cm67cm
Software	EZCAD	EZCAD	EZCAD
True Type Fonts			Single Stroke Fonts	Elliptical Text
Sequential Serial Numbers			Customizable Auto Dating	Barcodes
QR Codes and Data Matrix			UID Wizard	Logo
Photo Quality Images - JPG, TIF, GIF			Corel Draw, Adobe Illustrator	Raster Graphics
Vector Graphics			CAD Files
Metal Industry, Jewelry Factories, Hardware Tools, Electronics Components, Auto Parts, Mobile & Accessories, Clock&Watches,Planting Coating Materials, Spray Material, Plastic, Spectacles,etc.

Stainless Steel			Steel	Aluminum, Carbide
Nickel			Titanium	Cast Iron
Chrome			Painted Metal Alloys	Multi-Coated Metals
Plastics/Rubber			Backlit Buttons	Polycarbonate
PVC			Composites	Many more materials

Specification

Features:

Purpose: suitable for marking and engraving, hardware tools, knife tools, kitchenware, plastic products, computer keyboards,integrated circuits, packaging for bottles and cans, glass frames, faucets and sanitary ware, and other products.

1, Serial numbers and logos on plastic products, electrical enclosures, and other electronics products.
2,Metals and surfaces: stainless steel, copper, aluminum, oxidation, phosphorylation, electroplating, commonly used for the laser marking of hardware, daily necessities, electrical cladding, cell phone cases(e.g. iPhone, iPad), jewelry(e.g.ring), medical tools etc.

Maintenance Free
Fiber laser is virtually Maintenance Free compared to other conventional laser, as it doesn’t have mirror to be aligned and almost no optical components, which could have been damaged.
Beam quality
The out put beam quality is exceptionally good with diffraction of m2 < 1.5 to 2.0 depending on the power requirement. This leads
to better performance and Improves power to work ratio.
Cooling
Fiber laser system is air cooled rather water-cooled multi-channel diode bars.
Operating cost
It operates at very low electricity consumption and it normally cooled by just air-cooling, which leads to significantly lower operating cost.
Heat Dissipation
The total power generation and build in fiber laser occurs along a long length of fiber. Thus heat is dispersed over a large surface area unlike DPSSL where heat is normally localized, leading to failure.
Beam Delivery
The biggest benefit of fiber laser is that the Gain Medium is fiber & delivery is also through the fiber. This leads to less chances of failure at coupling point between gain medium and delivery when extended to the workplace.

Company Profile

Shenzhen Dapeng Laser Technology Co, Ltd. was established in 2011. It is a laser equipment high-tech enterprise that integrates R&D, manufacturing, sales and service. It is dedicated to laser process R&D, laser equipment design R&D, production, technical support, service and consulting. Our company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc, applied to electronics, IC chips, electrical appliances, lighting fixtures, jewelry, hardware tools, sanitary ware, instruments Instrumentation, automobile and motorcycle accessories, mobile phone communications components, molds, precision machinery, medical equipment, IT digital, metal housing, military aviation components, garment leather, craft gifts, advertising decoration, models, cookware, kitchen utensils and other industries. Dapeng laser product quality are stable and reliable, with a professional R & D team, while pursuing excellent quality, Dapeng laser also provides customers with timely, comfortable pre-sale, sales, after-sales service and excellent cost-effective products. Dapeng Laser has won the trust and praise of customers by implementing the business philosophy of "helping customers succeed, creating value models, and building industrial laser equipment industry to serve high-end brands". Customers are located throughout the country and overseas. In 2016, sold more than 5,000 laser equipment. Our company has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services.

Our Workshop

Why Choose US

Dapeng Laser has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services. Dapeng people know that quality and service are fundamental to the survival of the company. Innovation is the foundation for the long-tem development of the company. It helps customers create value and strives to build a well-known brand in the laser equipment industry.

Laser Welding Machine Team

Laser Cutting Machine Team

Oversea Marketing Team

Our Exhibition

Our Certificates

ISO

Packing & Delivery

We support to ship via Sea, Railway,Air, Express(UPS, DHL, EMS, Swiss Post, HongKong Post, FedEx, TNT). You also can choose the shipping method you like if you prefer another courier.

FAQ:

Q1: How do I know which model is suitable for my product application?
You just need to tell us the following information then we can offer you a suitable solution? In addition, you can also send us the sample and we will arrange professional engineers for proofing evaluation
1) What is your product? material? thickness? required accuracy?
2) What is the current production process?
3) What is your desired budget and delivery time.
Q2: When I get this machine, but I don't know how to use it. What should I do?
We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly. And for some countries , like in India, Malaysia, Korea,Spain, we have local support team, more countries will be in the picture soon.
Q3: How can I do if the machine goes wrong?
We guarantee machine quality for 13 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer in best delivery. Besides guarantee period, we still provide you free online services for life.If parts broken, you can order replacement parts from us.
Q4. Can you customized product according to different application?
Yes, Dapeng laser is very dedicated to combine with our current ability with the main leading supplier to offer you the customized application.
Q5:What if there are gaps in my product which need to weld?
For laser welding machines, we are usually equipped with automatic wire feeding system. For products with gaps, you can use wire feeding mechanism for wire filling welding
Q6. What is your normal lead time?
Generally standard machine, our lead time is 2-7 days after PO confirmed. Customized product need a little longer.
Q7. Will the package damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition
Q8:Why should I choose DAPENG LASER compared with other companys?
We are factory with 453 employees, turnover reached 100 millions USD in 2021, ISO 9001 certificated and most products are CE/SGS approoved, can offer you a high-quality pre-sale, in-sale and after-sales solution.
