| Application: | LASER CUTTING | Applicable Material: | Acrylic, Glass, Leather, MDF, Metal, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | 1500mm*3000mm | Cutting Speed: | 140m/min |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | Cutting Thickness: | 0-80mm |
| CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
| Control Software: | Cypcut | Laser Source Brand: | RAYCUS / IPG / NLIGHT / MAX (Optional) |
| Laser Head Brand: | WSX | Servo Motor Brand: | YASKAWA / SCHNEIDER / MOTOR POWER(Optional) |
| Guiderail Brand: | HIWIN | Control System Brand: | Cypcut |
| Weight (KG): | 9000 KG | Key Selling Points: | Automatic |
| Optical Lens Brand: | Wavelength | Warranty: | 1 Year |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other | Mode Of Operation: | Continuous Wave |
| Configuration: | 3-axis | Products Handled: | Sheet Metal |
| Feature: | Automated Loading | Product Name: | Laser Cutting Machine |
| Laser Source Type: | Fiber Source | Laser Wavelength: | 1070nm |
| Laser Output Power: | 300W-1000W | Cutting Range: | 3000*1500mm |
| Minimum Line Width: | <0.1mm | Cooling Method: | Water Cooling |
| X/Y Positioning Accuracy: | 0.03mm | Transfer Method: | Precision Rack Dual Drive |
| Keywords: | Metal Laser Cutter | Port: | China Or Shen Zhen Ports |
| High Light: | Aluminum Fiber Cutting Machine,1KW Fiber Cutting Machine,140m/Min CNC Metal Cutting Laser Machine |
||
|

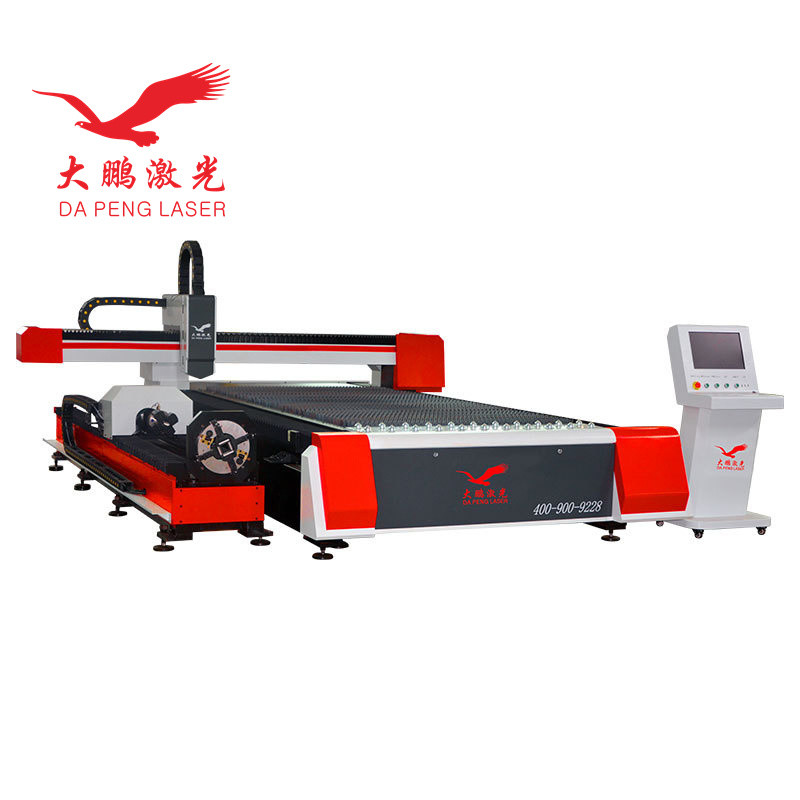

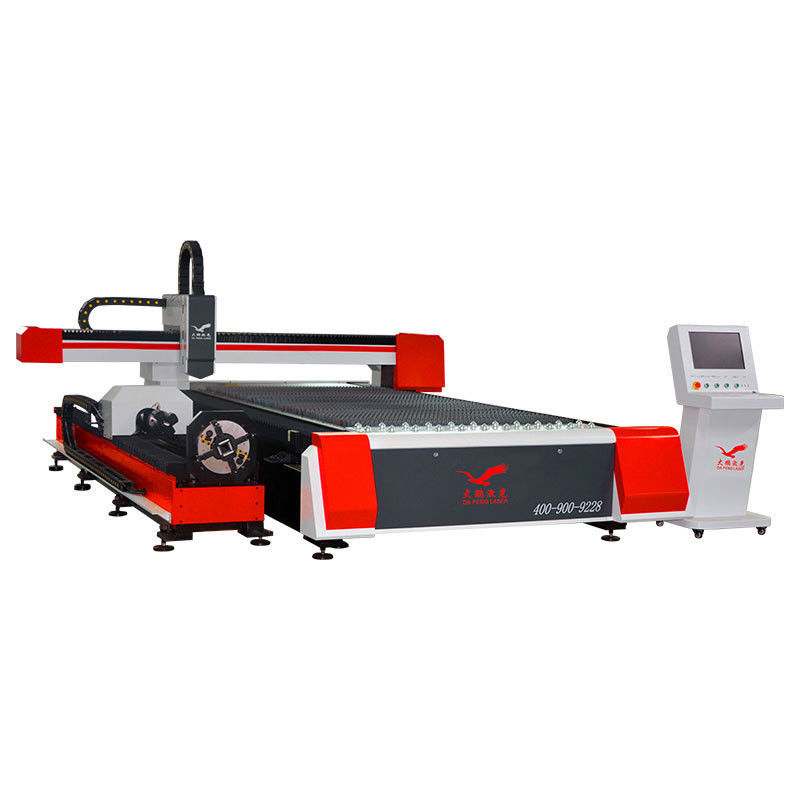

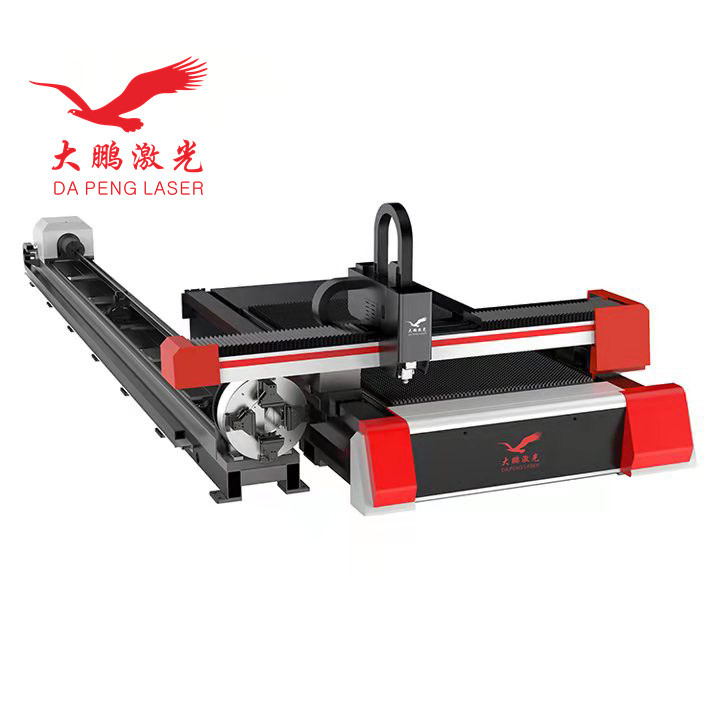

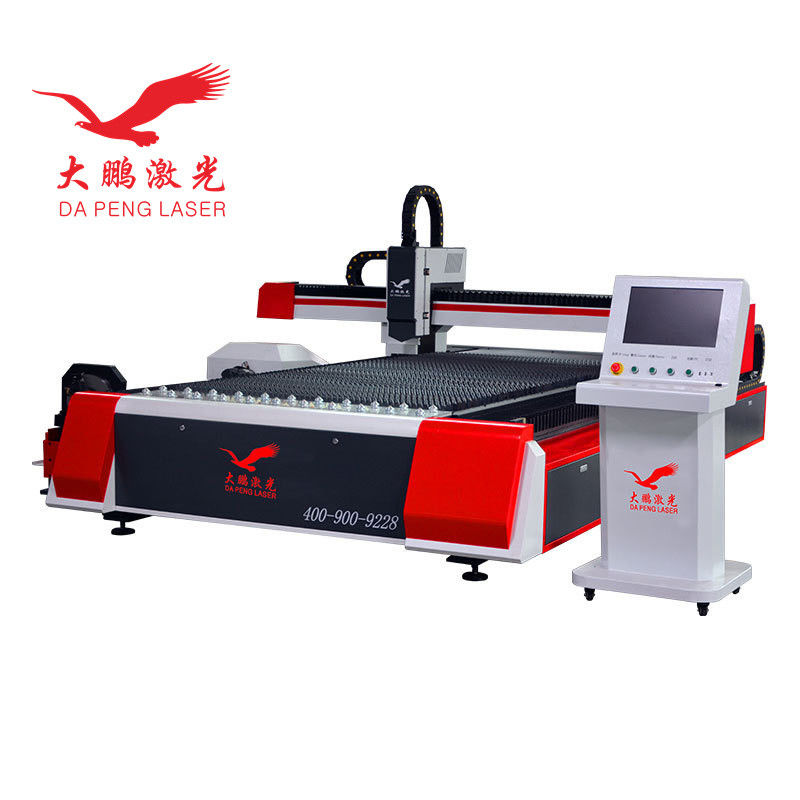

Model
|
DPE-F3015J
|
|
Laser source type
|
Fiber source
|
|
Laser Out Power
|
1070nm
|
|
Laser wavelength
|
500W-6000W
|
|
Cutting range
|
3000×1500mm
|
|
Minimum line width
|
<0.1mm
|
|
Transfer method
|
Precision rack dual drive
|
|
Cutting speed and thickness
|
Depending on specific material
|
|
Repeatability
|
±0.02mm
|
|
Machine operating temperature
|
0~40℃
|
|
Electricity demand
|
380V/50Hz
|
|
Cooling method
|
Water cooling
|
|
Continuous operating time
|
24 hours
|
|
Weight
|
9000KG
|
|
Dimensions
|
8150×3580×1800mm
|
|
Maximum operating speed
|
120m/min
|
|
Maximum acceleration
|
1.2G
|
|
X/Ypositioning accuracy
|
0.03mm
|
|
Minimum slit width
|
0.15mm
|
