| Application: | Laser Marking | Working Accuracy: | 0.01mm |
|---|---|---|---|
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, CDR | Laser Type: | Fiber Laser |
| Condition: | New | CNC Or Not: | Yes |
| Cooling Mode: | Air Cooling | Control Software: | EZ CAD |
| Laser Source Brand: | MAX | Control System Brand: | EZCAD |
| Marking Head Brand: | Ouya, Scanlab | Weight (KG): | 120 KG |
| Key Selling Points: | Energy Saving | Warranty: | 1 Year |
| Marking Area: | 110mm*110mm | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1.5 Years |
| Core Components: | Laser Source | Mode Of Operation: | Pulsed |
| Configuration: | Bench-top | Feature: | Deep Marking |

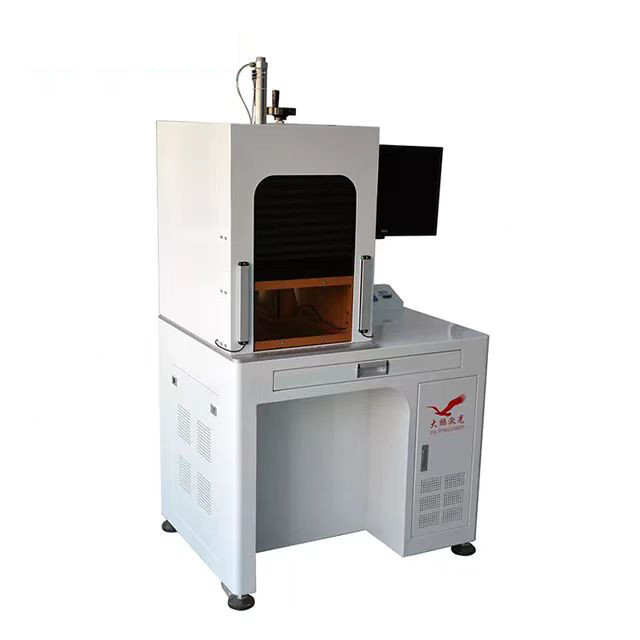

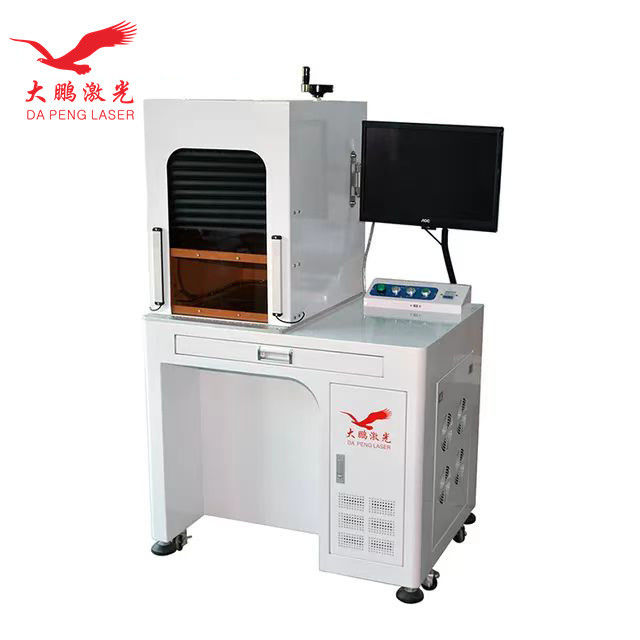

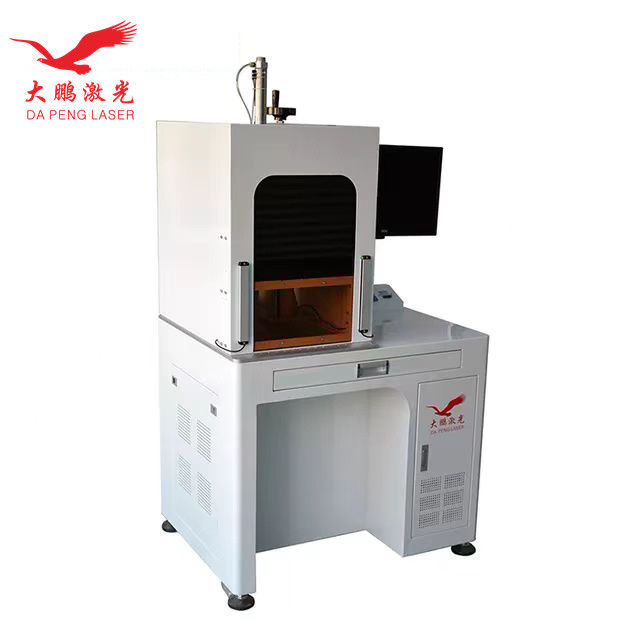

| Product Name: | Jewelry Ring Laser Marking Machine | Size: | 80*65*148cm |
| Function: | Marking Logo Metal | Laser Power: | 20W,30W,50W,100W |
| Marking Material: | Metal Jewelry Silver Gold | Power Supply: | AC 220V+-10% 50/60Hz |
| Resetting Positioning Accuracy: | 0.02mm | Keywords: | Precision Laser Engraving Machine |
| Port: | China Or Shenzhen Ports | ||
| High Light: | Stable Laser Engraving Jewelry Machine,50 Watt Laser Engraving Jewelry Machine,Multifunctional 50 Watt Fiber Laser |
||
|
Model
|
FC-20
|
FC-30
|
FC-50
|
FC-100
|
||||
|
Laser source type
|
Fiber source
|
Fiber source
|
Fiber source
|
Fiber source
|
||||
|
Laser Out Power
|
20W
|
30W
|
50W
|
100W
|
||||
|
Laser wavelength
|
1064nm
|
1064nm
|
1064nm
|
1064nm
|
||||
|
Laser Source
|
Raycus/Max/IPG
|
Raycus/Max/IPG
|
Raycus/Max/IPG
|
Raycus/Max/IPG
|
||||
|
Optional Marking Area
|
150mm*150mm,180mm*180mm,200mm*200mm,300mm*300mm
|
150mm*150mm,180mm*180mm,200mm*200mm,300mm*300mm
|
150mm*150mm,180mm*180mm,200mm*200mm,300mm*300mm
|
150mm*150mm,180mm*180mm,200mm*200mm,300mm*300mm
|
||||
|
Laser frequency
|
<0.6KW
|
<0.6KW
|
<0.6KW
|
<0.6KW
|
||||
|
Repeatability
|
±0.002mm
|
±0.002mm
|
±0.002mm
|
±0.002mm
|
||||
|
Machine operating temperature
|
0~40℃
|
0~40℃
|
0~40℃
|
0~40℃
|
||||
|
Electricity demand
|
Ac220V±10%.
50HZ.5Amp |
Ac220V±10%.
50HZ.5Amp |
Ac220V±10%.
50HZ.5Amp |
Ac220V±10%.
50HZ.5Amp |
||||
|
Cooling method
|
Air cooled
|
Air cooled
|
Air cooled
|
Air cooled
|
||||
|
Continuous operating time
|
24 hours
|
24 hours
|
24 hours
|
24 hours
|
||||
|
Weight
|
130kg
|
130kg
|
130kg
|
130kg
|
||||
|
Dimensions
|
80*65*142cm
|
80*65*142cm
|
80*65*142cm
|
80*65*142cm
|
||||
|
Software
|
EZCAD
|
EZCAD
|
EZCAD
|
EZCAD
|
||||
|
True Type Fonts
|
|
Single Stroke Fonts
|
|
Elliptical Text
|
||||
|
Sequential Serial Numbers
|
|
Customizable Auto Dating
|
|
Barcodes
|
||||
|
QR Codes and Data Matrix
|
|
UID Wizard
|
|
Logo
|
||||
|
Photo Quality Images - JPG, TIF, GIF
|
|
Corel Draw, Adobe Illustrator
|
|
Raster Graphics
|
||||
|
Vector Graphics
|
|
CAD Files
|
|
|
||||
|
Metal Industry, Jewelry Factories, Hardware Tools, Electronics Components, Auto Parts, Mobile & Accessories, Clock&Watches,Planting Coating Materials, Spray Material, Plastic, Spectacles,etc.
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Stainless Steel
|
|
Steel
|
|
Aluminum, Carbide
|
||||
|
Nickel
|
|
Titanium
|
|
Cast Iron
|
||||
|
Chrome
|
|
Painted Metal Alloys
|
|
Multi-Coated Metals
|
||||
|
Plastics/Rubber
|
|
Backlit Buttons
|
|
Polycarbonate
|
||||
|
PVC
|
|
Composites
|
|
Many more materials
|
||||
