Condition: | New | Warranty: | 1 Year |
---|---|---|---|
After-sales Service Provided: | Free Spare Parts, Video Technical Support, Field Maintenance And Repair Service, Online Support, Field Installation, Commissioning And Training | Spare Parts Type: | Laser Cutting Head |
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | Ordinary Product | Key Selling Points: | Competitive Price |
Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sr | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
Weight (KG): | 5 KG | Product Name: | Fiber Laser Cutting Head |
Keywords: | Laser Cutting Spare Parts | Brand: | OSPRI |
Application: | Metals Cutting | Laser Type: | Fiber Laser |
Feature: | High Efficiency | Used For: | Fiber Laser Cutting Machine |
MOQ: | 1 Set | Function: | Metal Material Cutting |
After-sales Service: | Overseas Engineers Provide Door-to-door Service |
![]() |
LC209 2KW Manual |
![]() |
LC608M Laser Cutting Up To 6KW |
|
LC1208 Laser Cutting Up To 12KW |

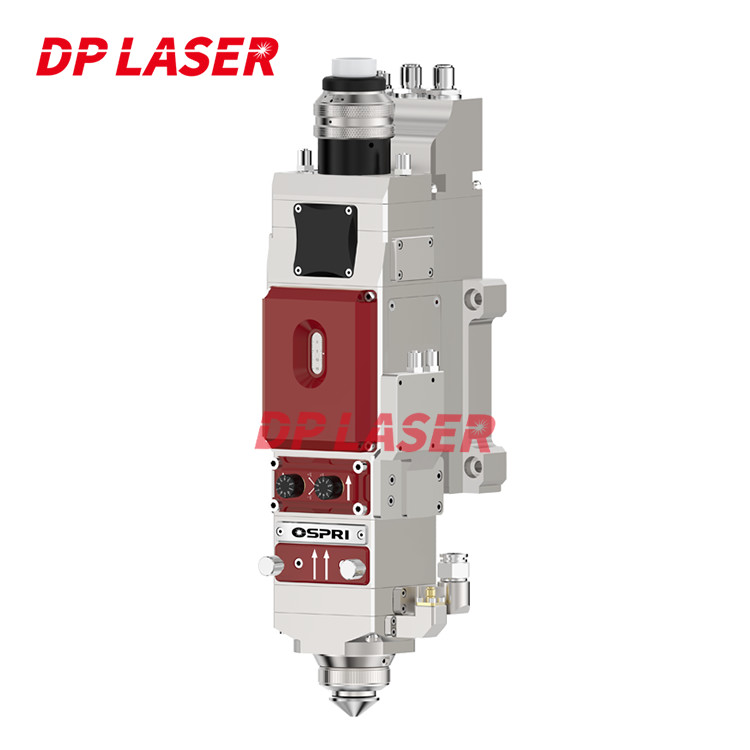

LC1208
Intelligent Auto Focus Cutting Head
Rated Power:12000W
1.High speed of auto focusing by collimation with servo motor.
2.Dust-proof design with three protection windows.
3.Suits for QBH, QD connector
4.Modular catridge of focus protection widnow is convenient for maintenance.
5.Optics temperature monitor, air leakage monitor and protection window in place monitor.
Technical data
Focus Length | 200mm |
Collimation Length | 100mm |
Focusing Range | -25mm-+20mm |
Focusing Speed | 400mm/s |
Auxiliary Gas | ≤3Mpa |
Weight | 7.5KG |
