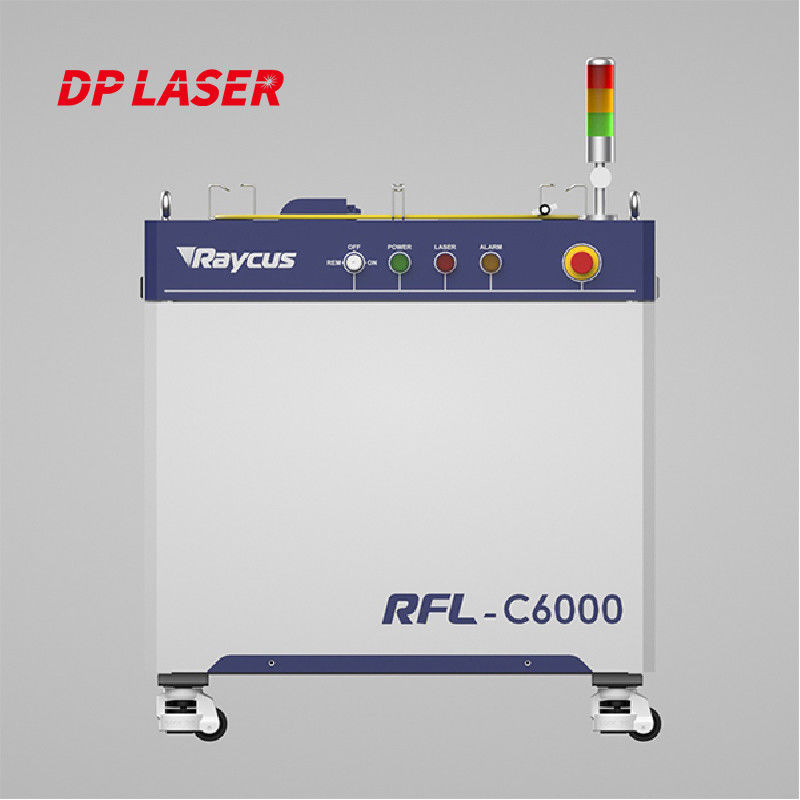

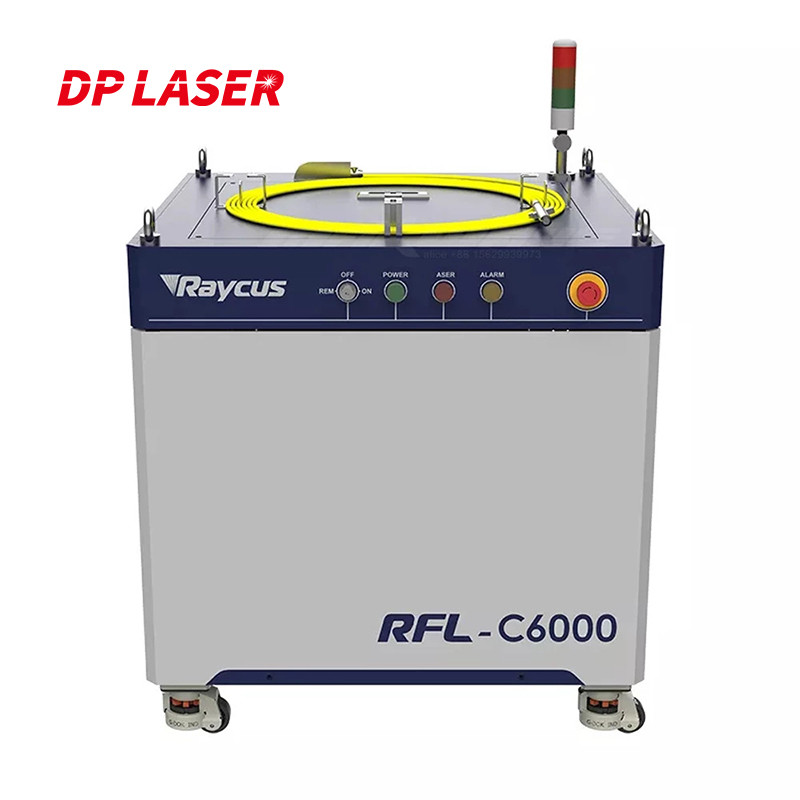

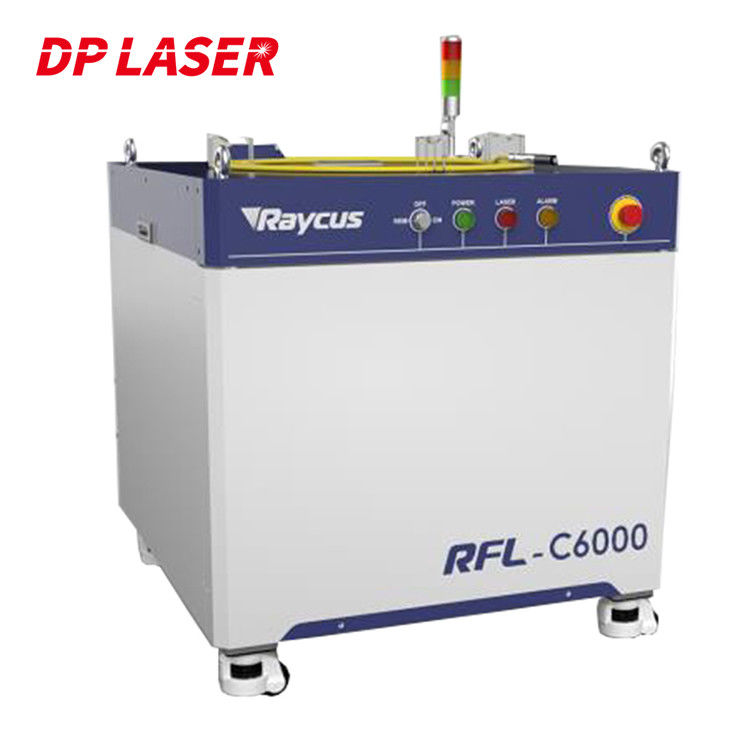

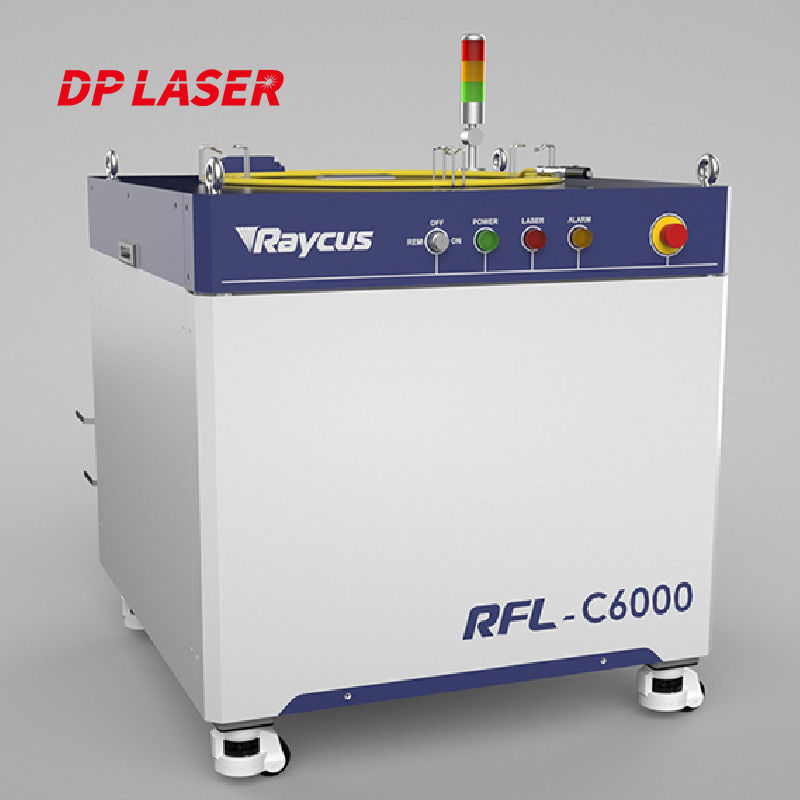

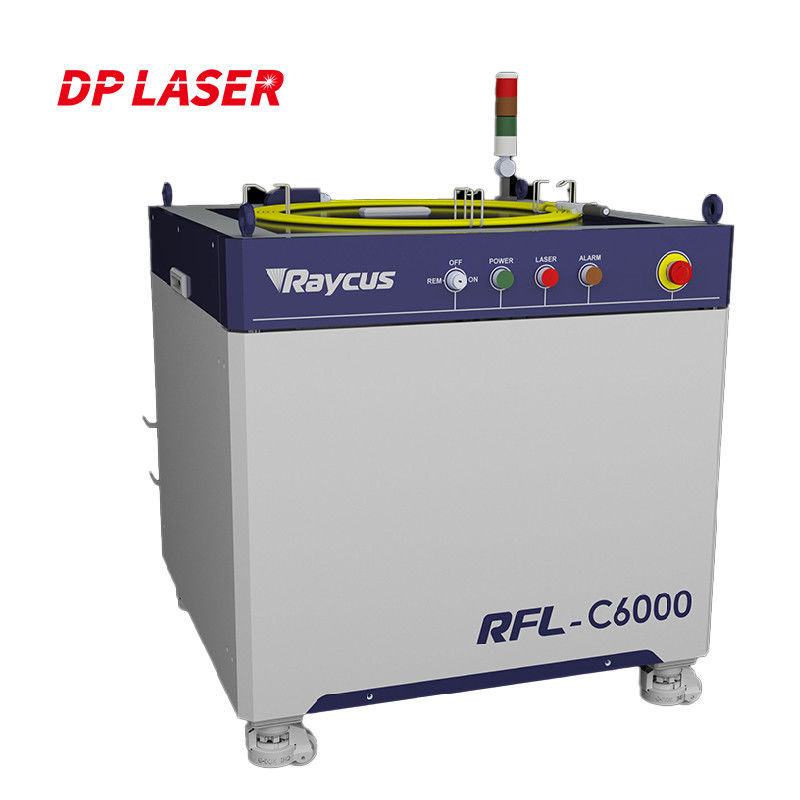

Raycus RFL-C6000X 6000W 6KW Multi-Mode Laser Source For Fiber Laser Cutting Machine
It has the advantages of high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting, cladding, surface treatment, 3D printing and other fields. Its optical fiber output characteristics make it easier to integrate with robots into flexible manufacturing equipment to meet the needs of three-dimensional processing.
The Multi-module CW Fiber Lasers developed by Raycus ranges from 3,000W to 30kW, with high electro-optical conversion efficiency, high light beam quality, high energy density, wide modulation frequency, high reliability, long service life, maintenance-free operation and advantages. The product can be widely applied in welding, precision cutting, melting and cladding, surface processing, 3D printing and other fields. Its optical output performance helps it better integrate with robots as a flexible manufacturing equipment to meet 3D processing requirement.
Main Features:
Excellent beam quality
High reliable
High power stability
High wall-plug efficiency
Maintenance free operation
High Electro-optical Conversion Efficiency
Convenient control interface
Fast modulation
Technical characteristics
High electro-optical conversion efficiency
Output fiber length can be customized
QBH/QD connector
Maintenance-free operation
Wide modulation frequency range
Small size, easy to install
Optical properties
Average output power: (W): 6000
Central wavelength: (nm): 1080±5
Maximum modulation frequency: (kHz): 5
Output power stability: ±1.4%
Red laser: Yes
Output characteristics
Output connector: QBH (customizable)
output fiber core diameter (μm): 100 (customizable)
BPP(mm.nrad)≤4.5
polarization state: random
output fiber length (m): 20(customizable)
Electronic control characteristics
Input power (V AC ): 380±10%, Three Phase-four Wire Connect
Control mode: RS232, AD
power adjustment range (%): 10-100
Max power consumption(W): 18500
Other characteristics
Dimensions (mm ): 900*960*1160(handle included)
Weight (kg): <360
Cooling method: water cooling
Working temperature (℃ ): 10-40
Applications:
Industry Cutting & Welding
Metal Carving
Surface Treatment
Sicentific Research
Package accessories are:
Please refer to package accessoriesare in the packing box.
Unpacking and Inspection:
Raycus fiber laser is delivered in a package, which is designed to offer the maximal safety. Upon the delivery, please inspect all packaging for evidence of mishandling or damage. If you find any evidence of mishandling, please keep the damaged material and contact the shipping agent and Raycus immediately.
Please double check if each listed contents is inside the package; and contact Raycus as soon as possible if there is any issue.
Take extra care when removing the unit from the package to make the fiber optic cable stay away from collision and vibration. Please do NOT distort, bend or pull the output cable when unpacking the device; and avoid any collision to the head of laser output.
|
|
|
|
|
|
|
|
|
|
|
|
|
Max. Modulation
Frequency(kHz)
|
|
2
|
|
|
|
Output Power Stability(%)
|
|
Red Light Indicated Power(mW)
|
0.5——1 |
|
|
|
|
|
|
|
|
|
|
|
20 |
30 |
|
|
|
380±10%V AC.50 / 60Hz
|
|
|
|
|
|
670×990×1160
|
900×960×1160
|
900×960×1160
|
|
|
|
|
|
|
|
|
|
|
|
