Product Description:

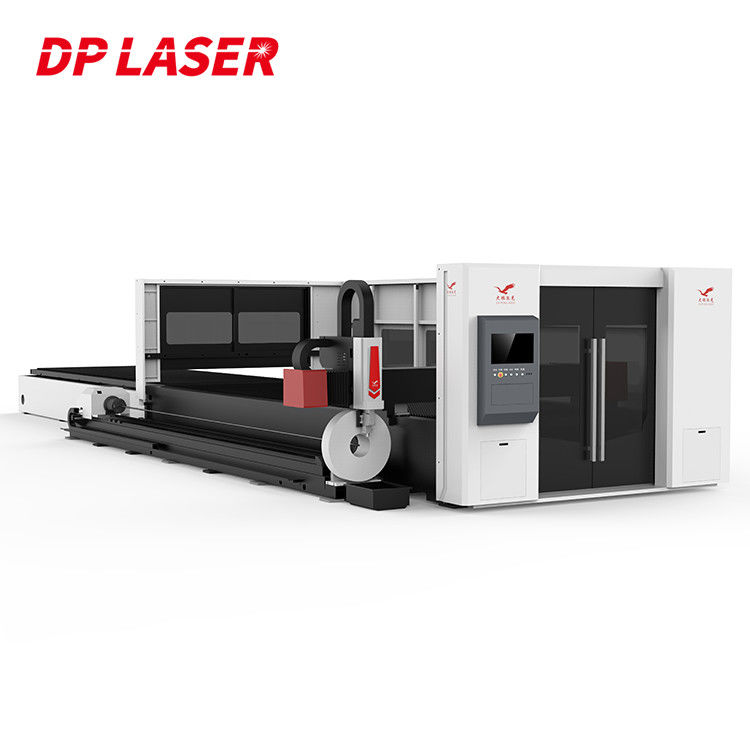

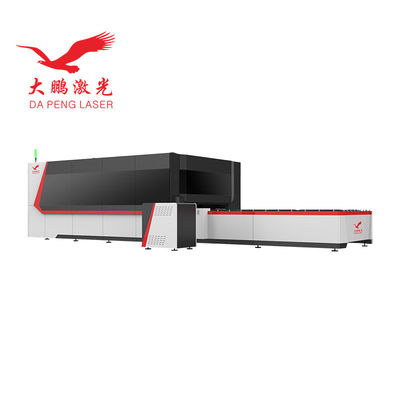

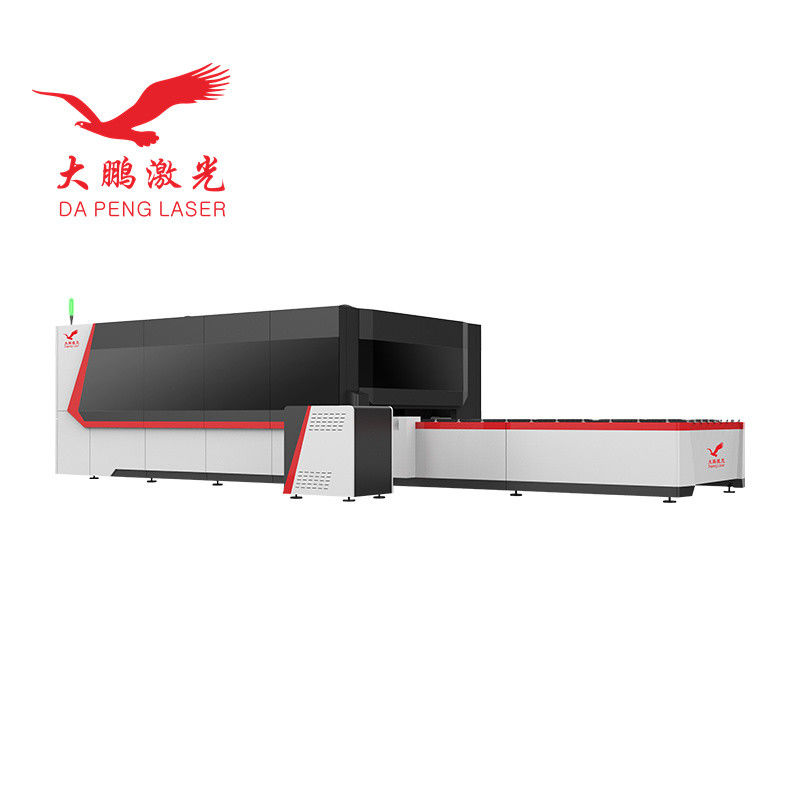

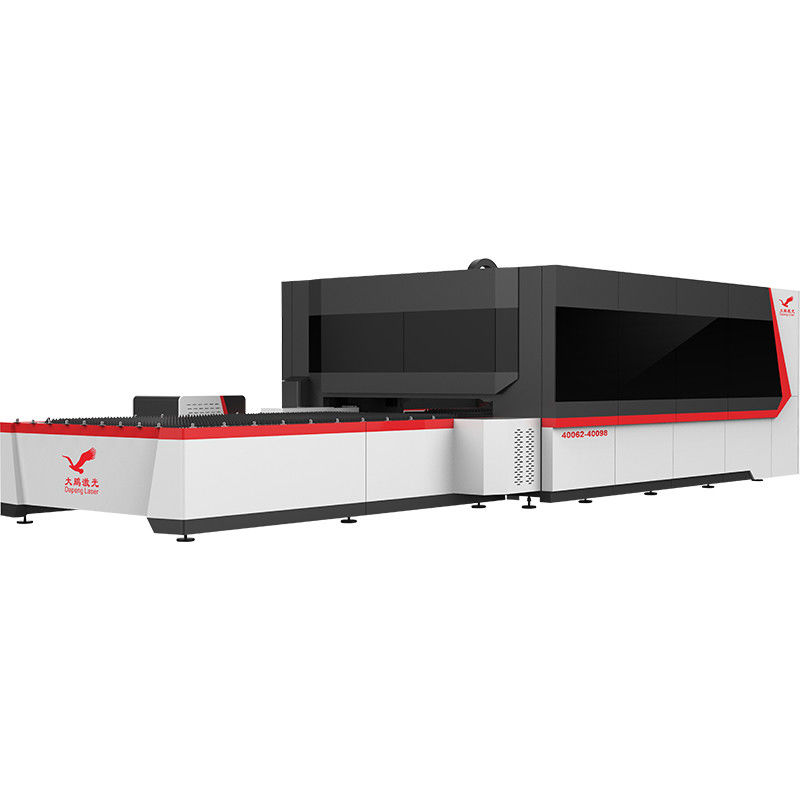

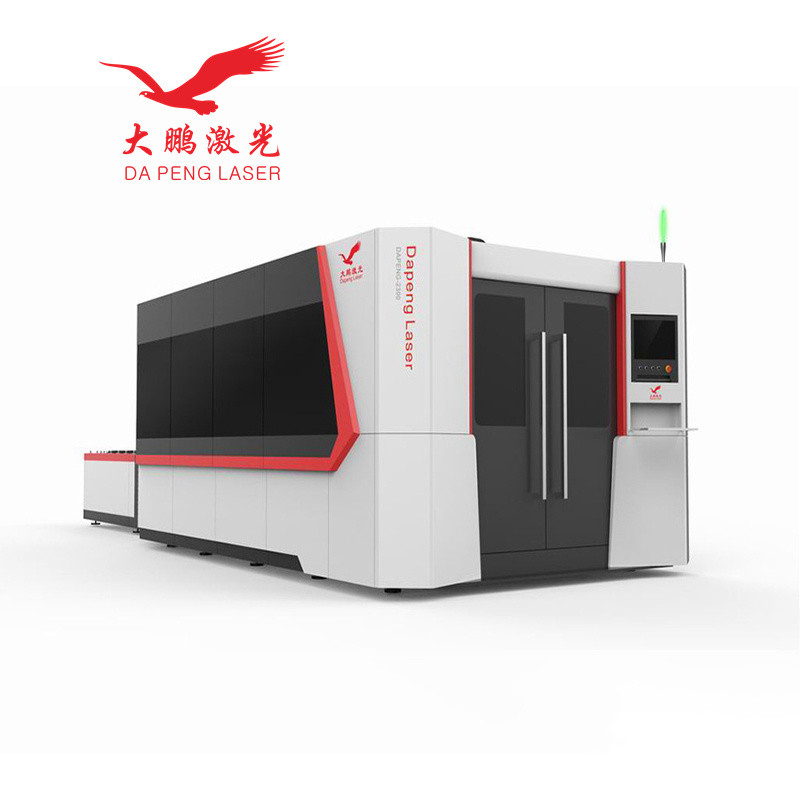

The CE 3015 4015 4020 6015 6020 6025 8025 10025 12025 Metal Sheet and Tube Integration Fiber Laser Cutting Machine is a cutting-edge solution for metal fabrication. It combines the capabilities of cutting both metal sheets and tubes with high precision and efficiency. With its advanced fiber laser technology, this machine offers exceptional cutting performance and versatility.
Features:
High Productivity: The integration of sheet metal and tube cutting capabilities allows for efficient and streamlined production processes.
Continuous Fiber Laser: Equipped with a continuous fiber laser, this machine delivers consistent and reliable cutting performance.
SERVO-MOTOR Feature: The machine is equipped with a servo motor system, ensuring precise and accurate cutting operations.
Cutting Area Options: The cutting area can be customized according to specific requirements, providing flexibility for various project sizes.
Control Software: Comes with Cypcut / Hypcut / Beckoff control software, offering user-friendly and intuitive operation.
Water Cooling System: The machine utilizes a water cooling system to maintain optimal performance and prevent overheating.
Technical Parameters:
Applicable Material: Metal
Laser Type: Fiber Laser
Cutting Area: Optional
Cutting Speed: 150m/min
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness: 0-80mm
CNC: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut / Hypcut / Beckoff (Optional)
Laser Source Brand: RAYCUS / IPG / NLIGHT / MAX (Optional)
Laser Head Brand: PRECITEC / RAYTOOL / WSX / OSPRI (Optional)
Servo Motor Brand: YASKAWA / SCHNEIDER / MOTOR POWER (Optional)
Guiderail Brand: HIWIN
Control System Brand: Cypcut / Hypcut / Beckhoff (Optional)
Applications:
The Metal Sheet and Tube Integration Fiber Laser Cutting Machine is suitable for various industries and applications, including:
Hotels
Garment Shops
Building Material Shops
Manufacturing Plant
Machinery Repair Shops
Food & Beverage Factory
Support and Services:
Overseas Engineers Provide Door-to-door Service: Our team of experienced engineers is available to provide on-site support and assistance.
Warranty of Core Components: We offer a 2-year warranty on the core components of the machine.
Machinery Test Report: A comprehensive test report is provided to ensure the machine meets quality standards.
Video Outgoing-inspection: We conduct a video inspection of the machine before shipment to ensure its proper functioning.
FAQ:
What materials can be cut with this machine?
This machine is designed for cutting various types of metal, including stainless steel and carbon steel.
What is the maximum cutting thickness?
The machine can cut materials with a thickness of up to 80mm.
What control software does it come with?
The machine can be equipped with Cypcut, Hypcut, or Beckoff control software, depending on your preference.
Can the cutting area be customized?
Yes, the cutting area can be customized to meet specific project requirements.
What is the warranty period?
The machine comes with a 2-year warranty on its core components.
3015 4015 4020 6015 6020 6025 8025 10025 12025 Metal Sheet and Tube Integration Fiber Laser Cutting Machine
| Cutting Sheet Metal Parameters |
| Working Area |
2500*1300 |
3000*1500 |
4000*1500 |
4000*2000 |
6000*1500 |
| X/Y Axis Positioning Accuracy |
±0.03mm |
±0.03mm |
±0.03mm |
±0.03mm |
±0.03mm |
| X/Y Axis Repositioning Accuracy |
±0.02mm |
±0.02mm |
±0.02mm |
±0.02mm |
±0.02mm |
|
Max. Moving Speed
|
150m/min |
150m/min |
150m/min |
150m/min |
150m/min |
| Max.Acc Speec |
1.5G |
1.5G |
1.5G |
1.5G |
1.5G |
| Laser Power |
1000W-1500W |
1000W-6000W |
1500W-6000W |
1500W-6000W |
1500W-6000W |
| Laser Source |
RAYCUS IPG nLIGHT MAX (Optional) |
| Laser Cutting Head |
PRECITEC RAYTOOL WSX OSPRI (Optional) |
| |
| Working Area |
6000*2000 |
6000*2500 |
8000*2500 |
10000*2500 |
12000*2500 |
| X/Y Axis Positioning Accuracy |
±0.03mm |
±0.03mm |
±0.03mm |
±0.03mm |
±0.03mm |
| X/Y Axis Repositioning Accuracy |
±0.02mm |
±0.02mm |
±0.02mm |
±0.02mm |
±0.02mm |
| Max. Moving Speed |
300m/min |
300m/min |
300m/min |
300m/min |
300m/min |
| Max.Acc Speec |
5.0G |
5.0G |
5.0G |
5.0G |
5.0G |
| Laser Power |
3000W-12000W |
3000W-20000W |
6000W-20000W |
6000W-20000W |
6000W-20000W |
| Laser Source |
RAYCUS IPG nLIGHT MAX (Optional) |
| Laser Cutting Head |
PRECITEC RAYTOOL WSX OSPRI (Optional) |
| Cutting Metal Tube Parameters |
| Model |
6012 |
6016 |
6022 |
6032 |
6035 |
6040 |
6052 |
| Outer Diameter |
Φ430 |
Φ590 |
Φ600 |
Φ760 |
Φ844 |
Φ950 |
Φ1140 |
| Through Hole Diameter |
Φ130 |
Φ170 |
Φ225 |
Φ325 |
Φ365 |
Φ400 |
Φ520 |
| Processing Range |
10-120 |
10-160 |
15-218 |
15-320 |
20-350 |
20-400 |
20-508 |
| Repositioning Accuracy |
≤0.05 |
≤0.05 |
≤0.05 |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
|
Rotation Accuracy
|
≤0.05 |
≤0.05 |
≤0.05 |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
| Minimum Clamping Wall Thickness |
≥1 |
≥1 |
≥1 |
≥1 |
≥2 |
≥3 |
≥5 |
| Rated Speed |
150rmp |
100rmp |
150rmp |
100rmp |
50rmp |
50rmp |
50rmp |
Our core advantages:
1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.
We are looking for distributor. Price is more competitive.
We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.
