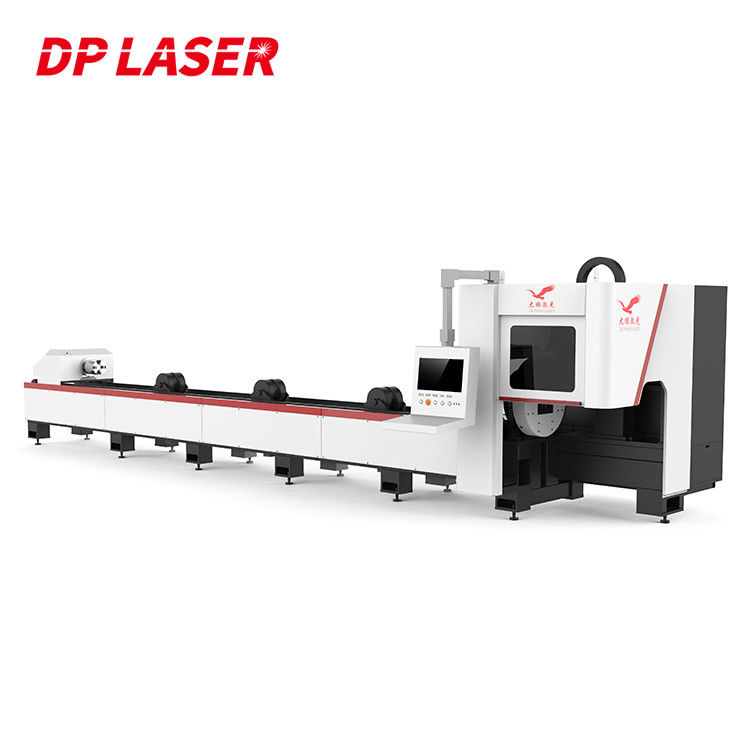

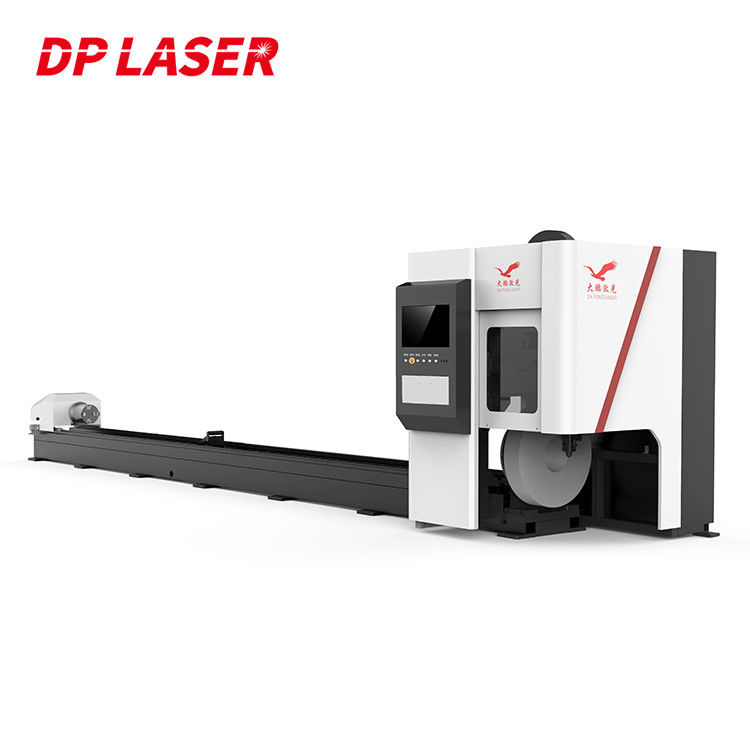

DAPENG 6012 6016 6022 6032 6035 6040 6052 CNC Automatic Metal Round Square Pipe Tube Fiber Laser Cutting Machine
Product Description:
The DAPENG 6012 6016 6022 6032 6035 6040 6052 CNC Automatic Metal Round Square Pipe Tube Fiber Laser Cutting Machine is a cutting-edge laser cutting machine designed for precise and efficient metal cutting applications. It utilizes advanced fiber laser technology to deliver high-quality cutting results.
Features:
The machine is equipped with a powerful fiber laser source, which ensures excellent cutting performance.
It supports a wide range of graphic formats, including AI, PLT, DXF, BMP, Dst, Dwg, LAS, and DXP.
The cutting speed can reach up to 100m/min, enabling fast and efficient production.
The CNC control system, Cypcut, provides accurate and reliable control over the cutting process.
The machine features a water cooling system for effective heat dissipation and extended operational stability.
It comes with a sturdy and durable construction, ensuring long-term reliability and precision.
Technical Parameters:
Laser Type: Fiber Laser
Cutting Area: Other
Cutting Thickness: 0-25mm
CNC Control: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut
Laser Source Brand: IPG/Raycus/MAX/nLIGHT (Optional)
Laser Head Brand: Raytool/Precitec/WSX (Optional)
Servo Motor Brand: Yaskawa/MOTOR POWER/Schneider (Optional)
Guiderail Brand: HIWIN
Control System Brand: Cypcut (Optional)
Weight: 4000 KG
Support and Services:
Our company provides comprehensive support and services for the DAPENG 6012 6016 6022 6032 6035 6040 6052 CNC Automatic Metal Round Square Pipe Tube Fiber Laser Cutting Machine. We offer:
Overseas engineers to provide door-to-door service
Machinery test report
Video outgoing inspection
3-year warranty for core components
After-sales service and support
FAQ:
What is the maximum cutting thickness of the machine?
The machine can cut materials with a thickness of up to 25mm.
Which graphic formats are supported by the machine?
The machine supports AI, PLT, DXF, BMP, Dst, Dwg, LAS, and DXP formats.
What is the warranty period for the machine?
The machine comes with a 3-year warranty for its core components.

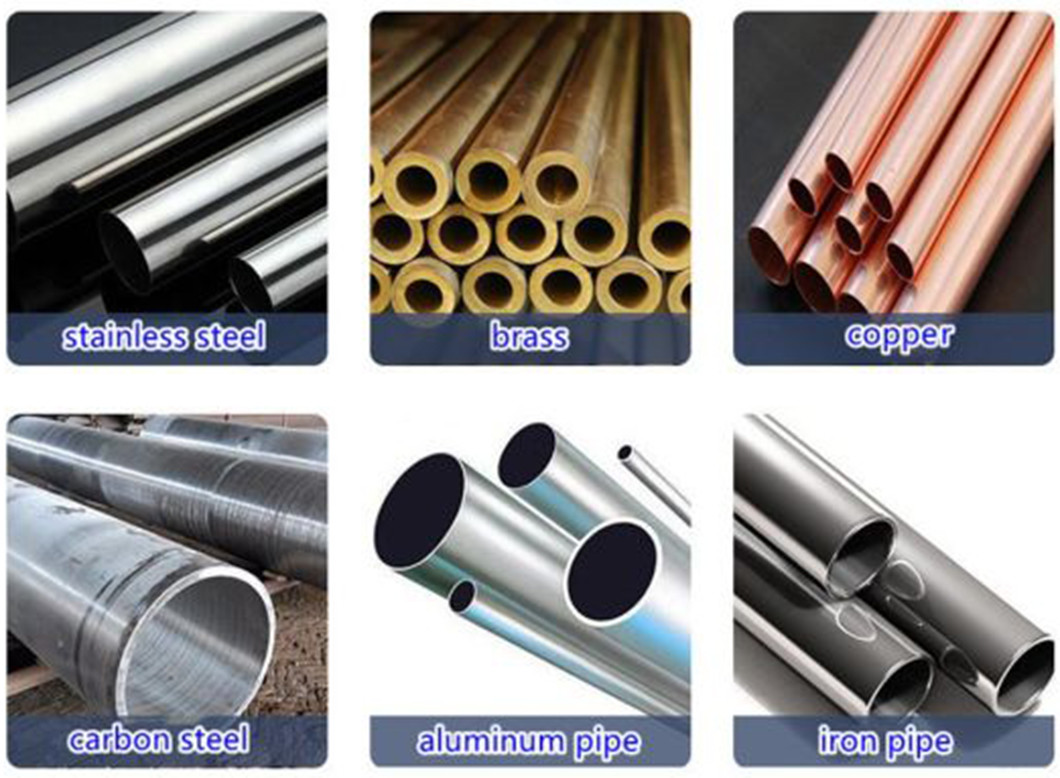

Can the machine cut different types of metals?
Yes, the machine is capable of cutting various metals, including stainless steel and carbon steel.
What is the cooling system used in the machine?
The machine incorporates a water cooling system for efficient heat dissipation.
6012 6016 6022 6032 6035 6040 6052 CNC Automatic Metal Round Square Pipe Tube Fiber Laser Cutting Machine
| Model |
P6012 |
P6016 |
P6022 |
P6032 |
P6035 |
P6040 |
P6052 |
| Outer Diameter |
Φ430 |
Φ590 |
Φ600 |
Φ760 |
Φ844 |
Φ950 |
Φ1140 |
| Through Hole Diameter |
Φ130 |
Φ170 |
Φ225 |
Φ325 |
Φ365 |
Φ400 |
Φ520 |
| Processing Range |
10-120 |
10-160 |
15-218 |
15-320 |
20-350 |
20-400 |
20-508 |
| Repositioning Accuracy |
≤0.05 |
≤0.05 |
≤0.05 |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
|
Rotation Accuracy
|
≤0.05 |
≤0.05 |
≤0.05 |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
| Minimum Clamping Wall Thickness |
≥1 |
≥1 |
≥1 |
≥1 |
≥2 |
≥3 |
≥5 |
| Rated Speed |
150rmp |
100rmp |
150rmp |
100rmp |
50rmp |
50rmp |
50rmp |
