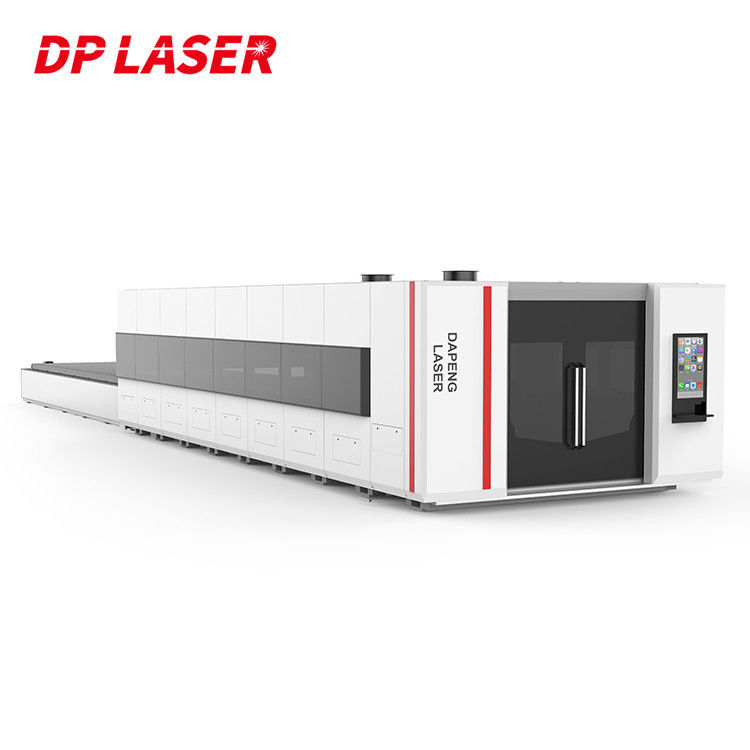

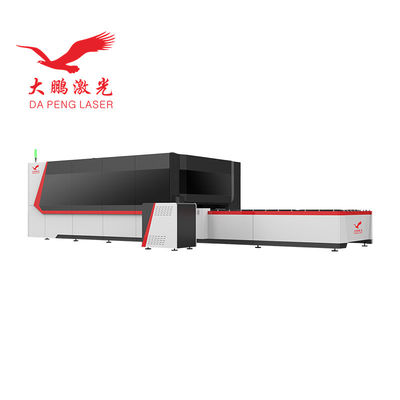

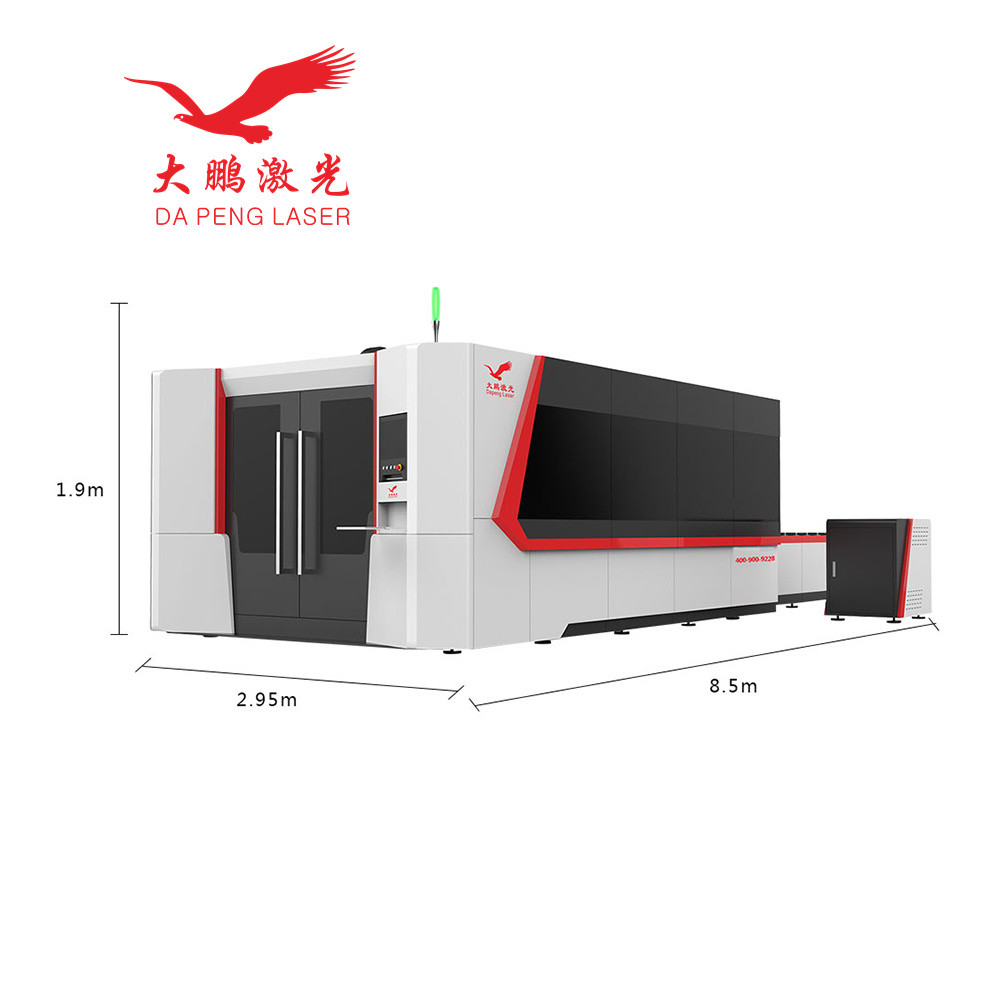

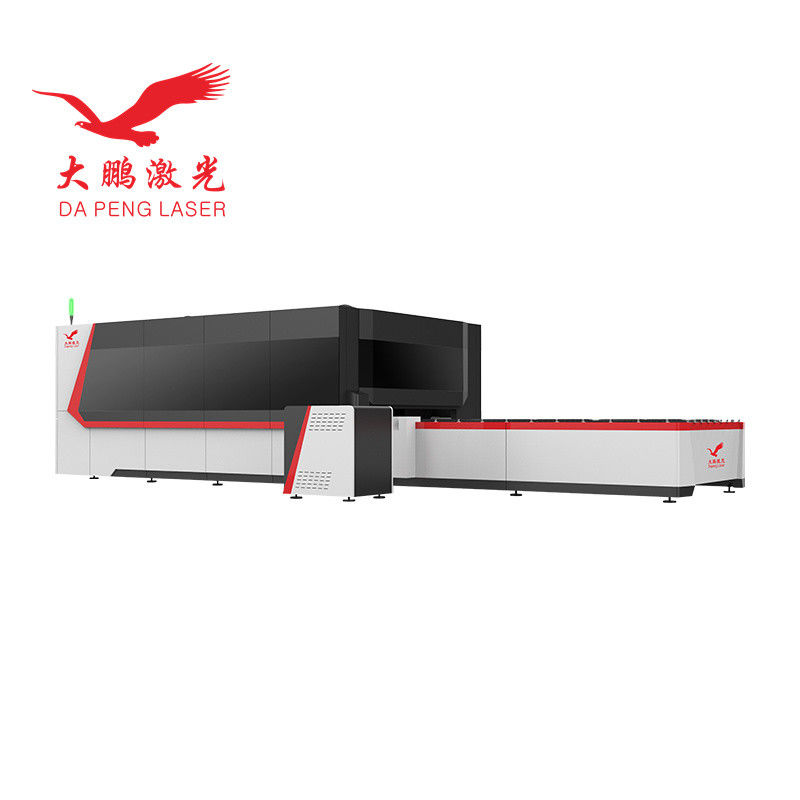

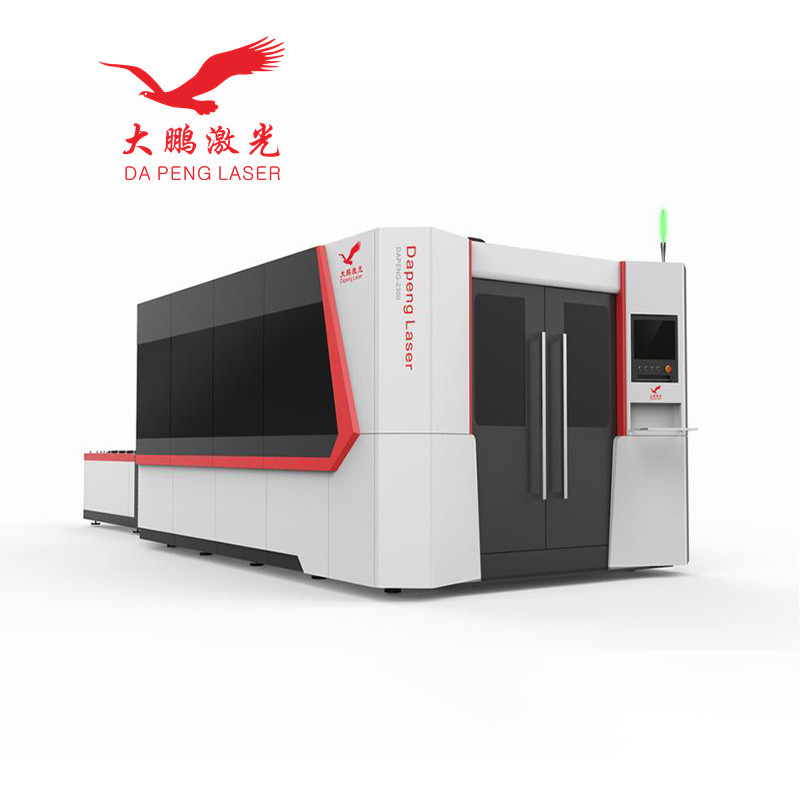

3000W-20000W Laser Cutting Machine 4 Axis Full Enclosed For Metal

Product Description:

The DAPENG High Power Full Enclosed 6025 Metal CNC Fiber Laser Cutting Machine is a state-of-the-art cutting machine designed for precision metal cutting. It utilizes advanced fiber laser technology to deliver high-quality and efficient cutting results. With a power range of 3000W-20000W, this machine offers exceptional cutting capabilities for various metal materials.

Features:

Fully enclosed design ensures operator safety and minimizes laser radiation.
High-power fiber laser source provides superior cutting performance and efficiency.
Large cutting area of 2500mm*6000mm allows for versatile cutting applications.
Fast cutting speed of up to 300m/min improves productivity.
CNC control system enables precise and accurate cutting operations.
Water cooling system ensures stable and reliable laser performance.
Compatible with various graphic formats, including AI, PLT, DXF, BMP, Dst, Dwg, LAS, and DXP.
Cutting thickness ranges from 0 to 80mm, providing flexibility for different cutting requirements.

Technical Parameters:

Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Area: 2500mm*6000mm
Cutting Speed: 300m/min
Cutting Thickness: 0-80mm
CNC Control: Yes
Cooling Mode: Water Cooling
Control Software: Hypcut
Laser Head Brand: PRECITEC / RAYTOOL / WSX / OSPRI (Optional)
Servo Motor Brand: MOTOR POWER
Guiderail Brand: HIWIN
Control System Brand: FSCUT / Beckoff (Optional)
Weight: 8000 KG

Applications:

The DAPENG High Power Full Enclosed 6025 Metal CNC Fiber Laser Cutting Machine is suitable for a wide range of industries and applications, including:

Hotels
Garment Shops
Building Material Shops
Manufacturing Plant
Machinery Repair Shops
Food & Beverage Factory

Support and Services:

FAQ:

What is the maximum cutting thickness of the machine?
A1: The machine can cut materials up to 80mm thick.

Q2: What graphic formats are supported by the machine?
A2: The machine supports AI, PLT, DXF, BMP, Dst, Dwg, LAS, and DXP formats.

Q3: Is the machine equipped with a cooling system?
A3: Yes, the machine features a water cooling system for stable laser performance.

Q4: What is the warranty period for the machine?
A4: The machine is backed by a 2-year warranty.

Q5: Can the machine be used for cutting non-metal materials?
A5: No, the machine is specifically designed for cutting metal materials.
