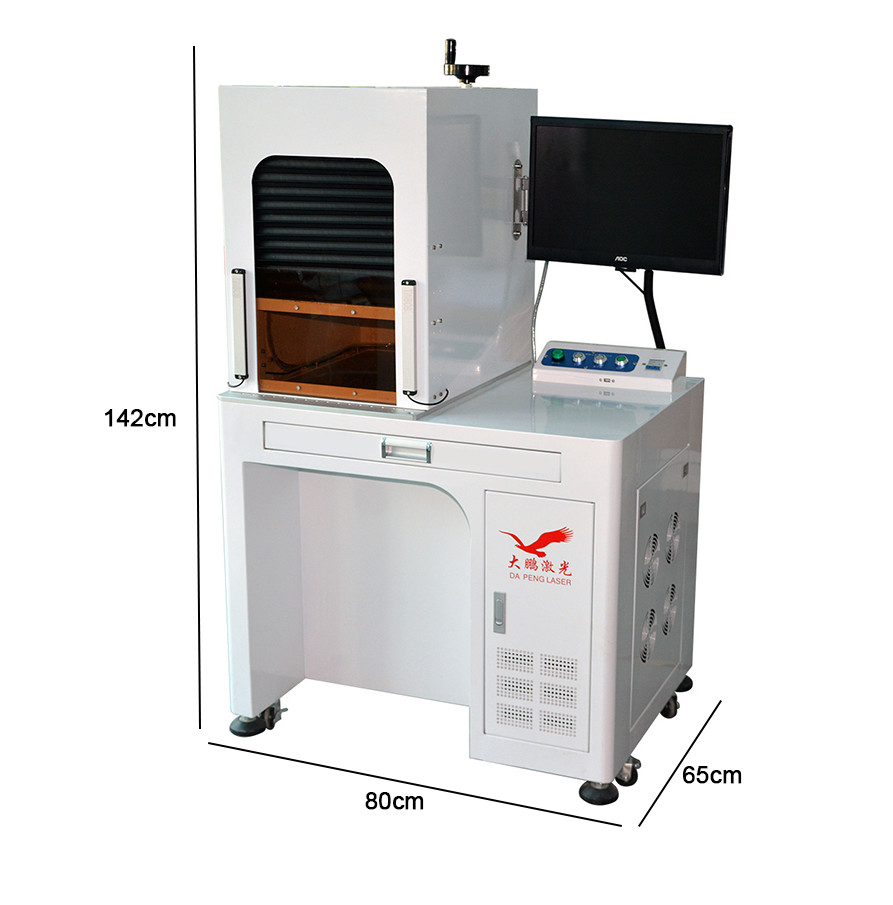

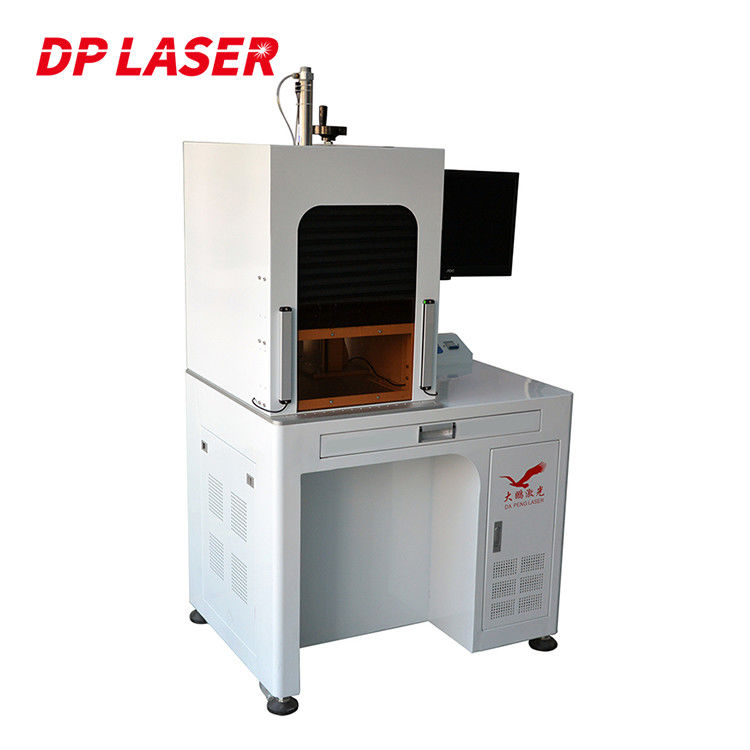

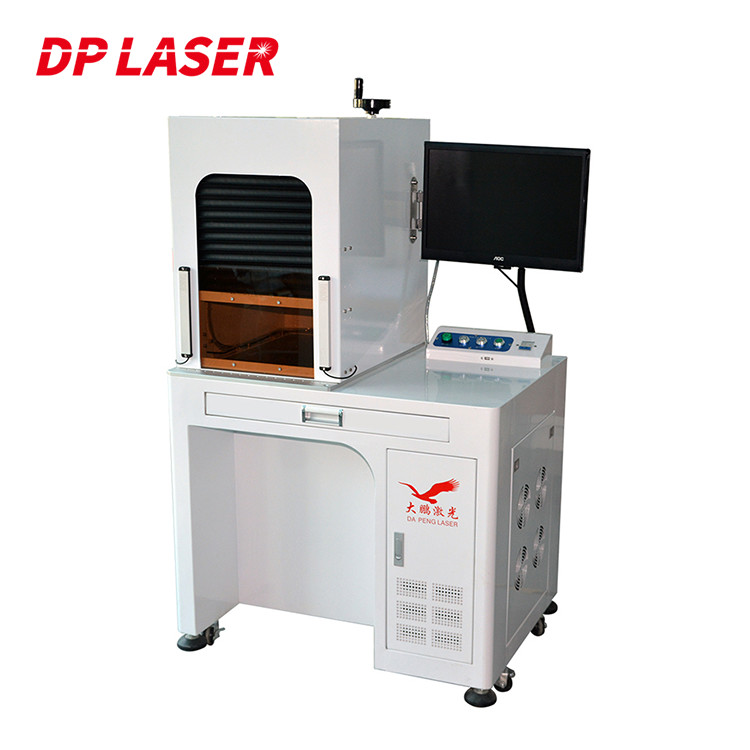

DAPENG Gold Silver Copper Ring Jewelry Engraving Enclosed Logo Fiber Laser Marking Machine
Product Description:
The DAPENG Gold Silver Copper Ring Jewelry Engraving Enclosed Logo Fiber Laser Marking Machine is a high-precision laser marking machine designed specifically for engraving logos on gold, silver, and copper rings. With its enclosed design and advanced fiber laser technology, this machine ensures accurate and detailed engraving for jewelry manufacturers and designers.
Features:
1. Excellent light quality:
Comparing with traditional solid laser marking/engraving machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking/engraving.
2. Low usage cost:
Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500W, it is the 1/10 of laser pump lamp marking machine. It greatly saves the cost in power consumption.
3. Free maintenance & long service life:
Using laser diode as the source of pump, full sealing light path design, its average no-failure operation is over 100 thousand hours.
4. Fast process speed:
Its processing speed is 5-10 times faster than traditional laser marking machine.
Technical Parameters:
Laser Type: Fiber Laser
Laser Source Brand: Raycus/Max/IPG/JPT MOPA
Laser Power: 20W/30W/50W/100W (Optional)
Laser Wavelength: 1064nm
Marking Speed: 0-8000mm/s
Working Accuracy: 0.01mm
Control Software: EZCAD
Cooling Mode: Air Cooling
Power Consumption: ≤800W
Supported Graphic Formats: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Marking Area: Optional
Voltage: 110V/220V (Optional)
Applications:
The DAPENG Gold Silver Copper Ring Jewelry Engraving Enclosed Logo Fiber Laser Marking Machine is suitable for the following applications:
Engraving logos on gold, silver, and copper rings.
Personalizing jewelry with intricate designs and patterns.
Adding serial numbers or unique identifiers to jewelry pieces.
Creating custom engravings for special occasions or events.
Support and Services:
We provide comprehensive support and services for our DAPENG Gold Silver Copper Ring Jewelry Engraving Enclosed Logo Fiber Laser Marking Machine, including:
Overseas engineers provide door-to-door service for installation and training.
Detailed machinery test reports are provided.
Video outgoing-inspection is available.
2-year warranty on core components.
After-sales support and assistance.
FAQ:
Q: What materials can be engraved with this machine?
A: The DAPENG Gold Silver Copper Ring Jewelry Engraving Enclosed Logo Fiber Laser Marking Machine can engrave logos on gold, silver, and copper rings, as well as other metal and non-metal materials.
Q: What formats are supported for engraving?
A: The machine supports various formats, including AI, PLT, DXF, BMP, Dst, Dwg, LAS, and DXP.
Q: What is the marking speed of the machine?
A: The marking speed can be adjusted up to 8000mm/s, allowing for efficient and precise engraving.
Q: Can I customize the marking area?
A: Yes, the marking area is optional and can be customized according to your specific requirements.
Q: Does the machine come with warranty?
A: Yes, we offer a 2-year warranty on the core components of the machine for your peace of mind.
