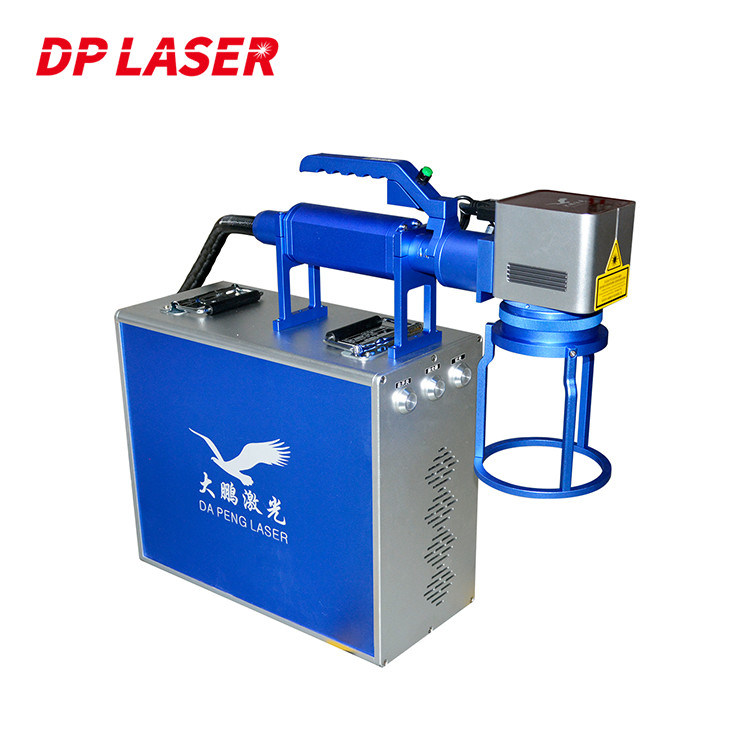

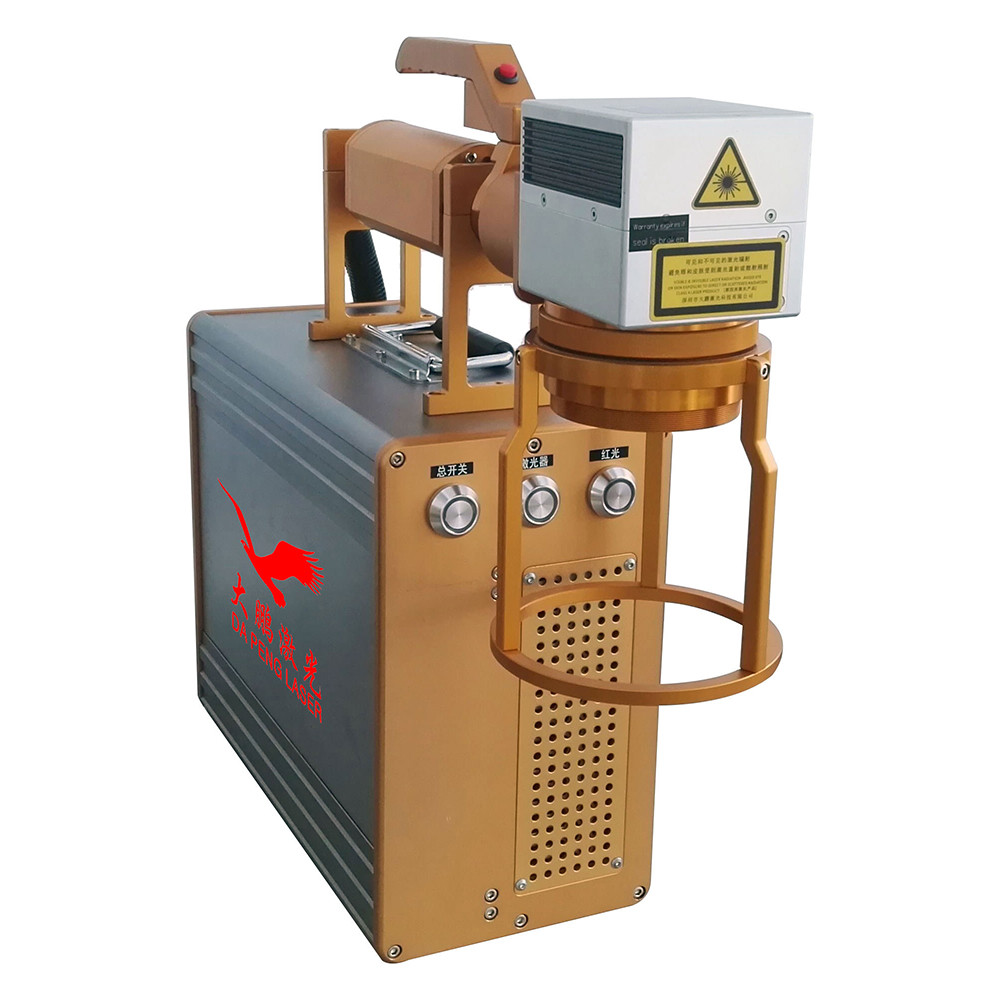

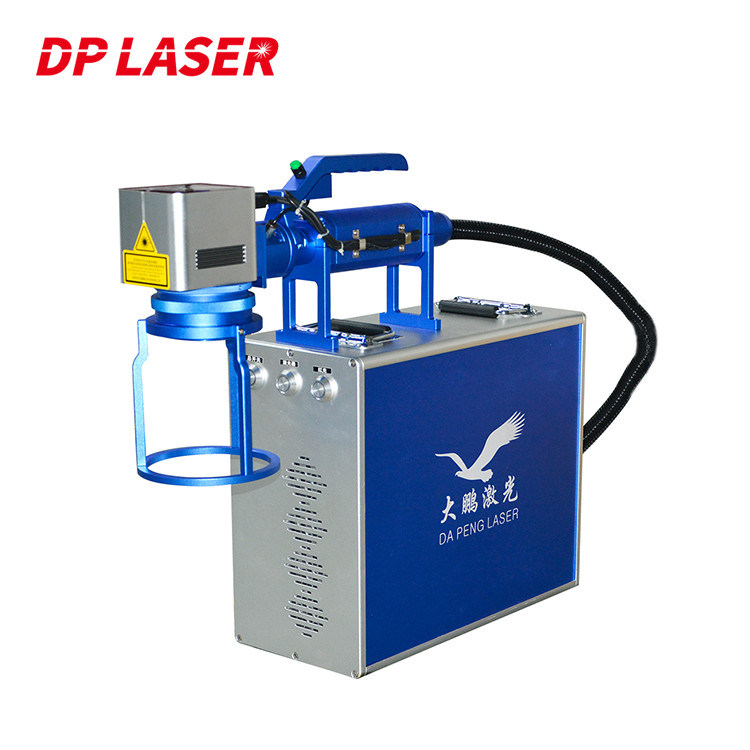

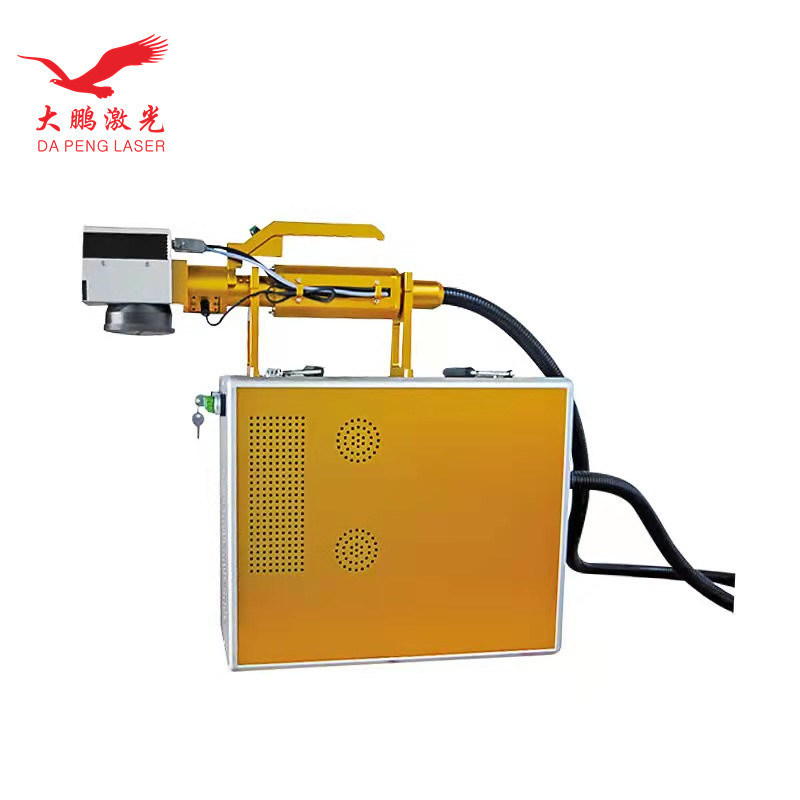

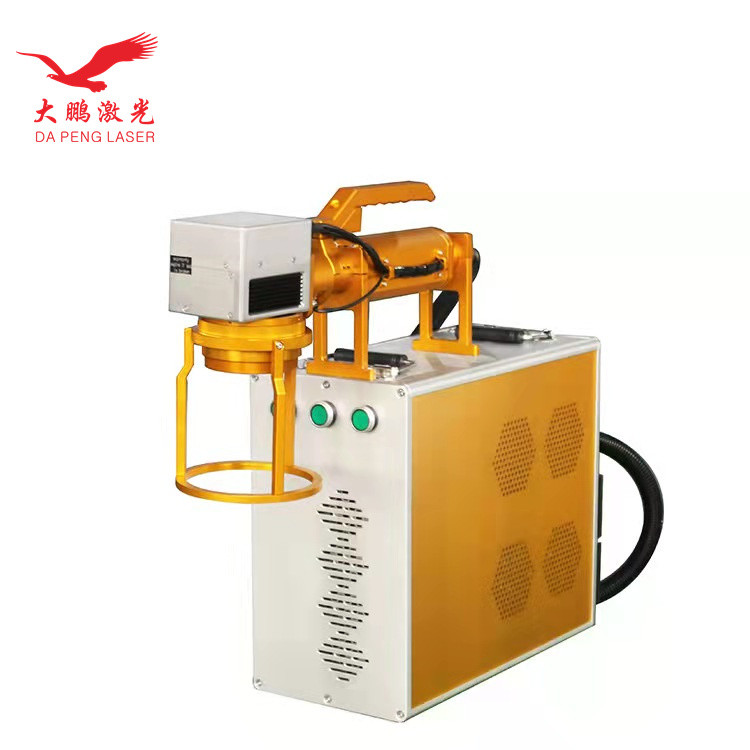

DAPENG 20W 30W Raycus Max IPG Mopa Handheld Light Path Mini Portable Fiber Laser Marking Machine
Product Description:
The Dapeng 20W 30W Raycus Max IPG Mopa Handheld Light Path Mini Portable Fiber Laser Marking Machine is a compact and portable laser marking machine. It is designed for high-precision laser marking applications. With its advanced features and reliable performance, it is suitable for a wide range of industries.
Features:
High-accuracy marking with a working accuracy of 0.01mm.
Supports various graphic formats such as AI, PLT, DXF, BMP, Dst, Dwg, LAS, and DXP.
Utilizes a fiber laser, known for its reliability and long lifespan.
New condition machine with CNC capability for precise marking.
Air cooling system for efficient heat dissipation.
Equipped with EZCAD control software for easy operation.
Offers a choice of laser source brands: Raycus, Max, IPG, or JPT.
Lightweight and portable design for convenient transportation.
Provides a marking area that is optional based on your requirements.
Comes with a 2-year warranty for peace of mind.
Technical Parameters:
Laser Type: Fiber Laser
Laser Source Brand: Raycus Max IPG JPT Optional
Laser Power: 20W 30W
Laser Wavelength: 1064nm
Marking Speed: 0-8000mm/s
Working Area: Optional
Control Software: EZCAD
Cooling Mode: Air Cooling
Mode of Operation: Pulsed
Configuration: Hand-held
Power Supply: 110V/220V Optional
Applications:
he Dapeng Handheld Fiber Laser Marking Machine is suitable for various industries and applications, including:
Hotels
Garment Shops
Building Material Shops
Manufacturing Plants
Machinery Repair Shops
Food & Beverage Factories
Support and Services:
We provide comprehensive support and services for our Dapeng Fiber Laser Marking Machine, including:
Overseas engineers provide door-to-door service for installation and training.
Detailed machinery test reports are provided.
Video outgoing-inspection is available.
2-year warranty on core components.
After-sales support and assistance.
FAQ:
What materials can be marked with this machine?
A: The Dapeng Fiber Laser Marking Machine can mark various materials, including metals and nonmetals such as stainless steel, steel, aluminum, titanium, plastics, rubber, and more.
Q: What is the lifespan of the laser source?
A: The laser source has a lifespan of 100,000 hours, ensuring long-term performance and reliability.
Q: What formats are supported for marking?
A: The machine supports various formats, including DWG, DFX, BMP, JPG, PNG, TIF, PCX, TAG, GIF, PLT, etc.
Q: What is the marking speed of the machine?
A: The marking speed can be adjusted up to 8000mm/s, allowing for efficient and precise marking.
Q: Can I customize the marking area?
A: Yes, the marking area is optional and can be customized according to your specific requirements.
