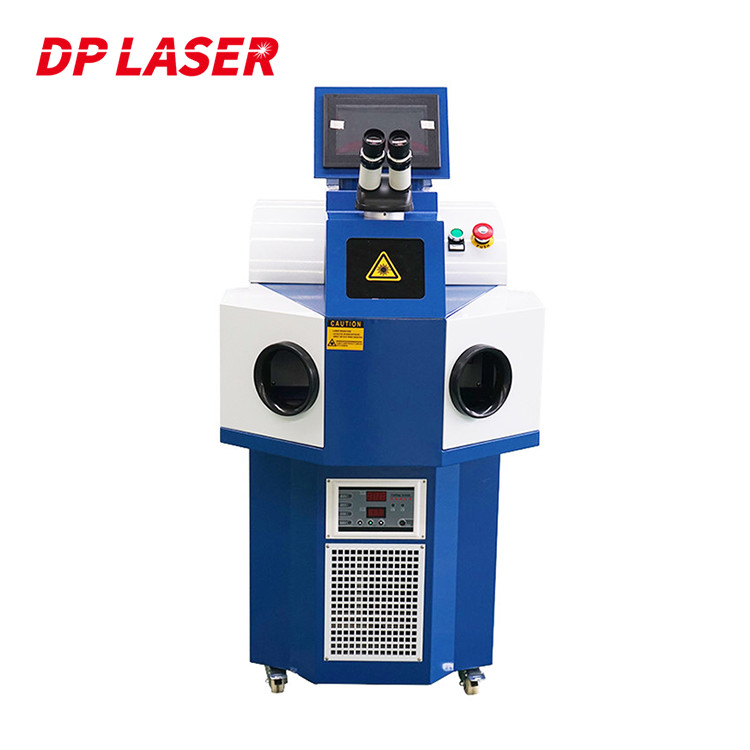

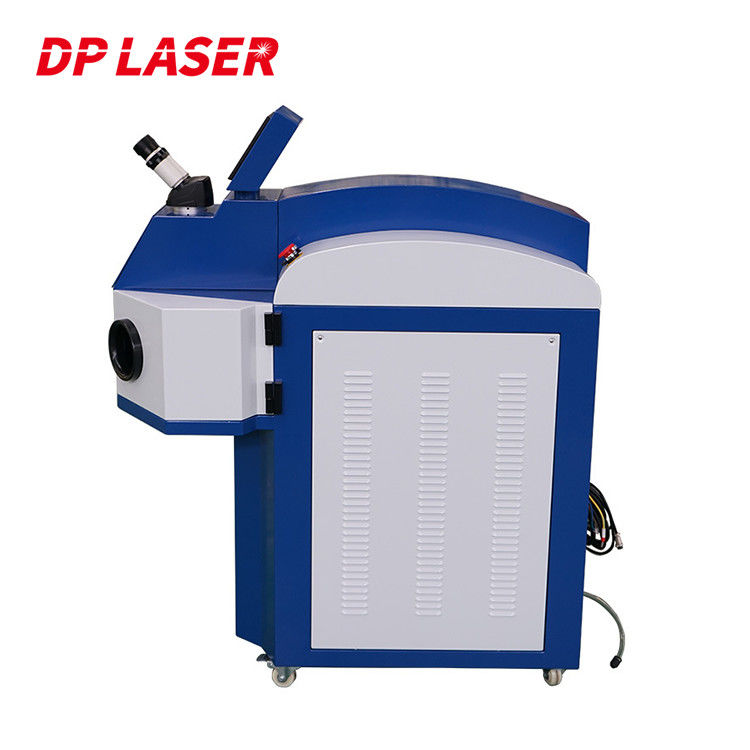

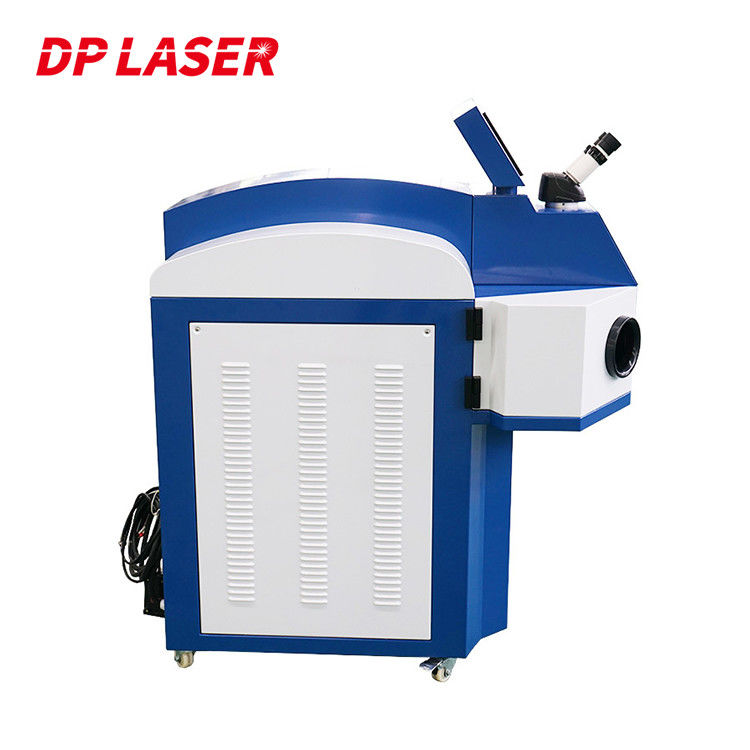

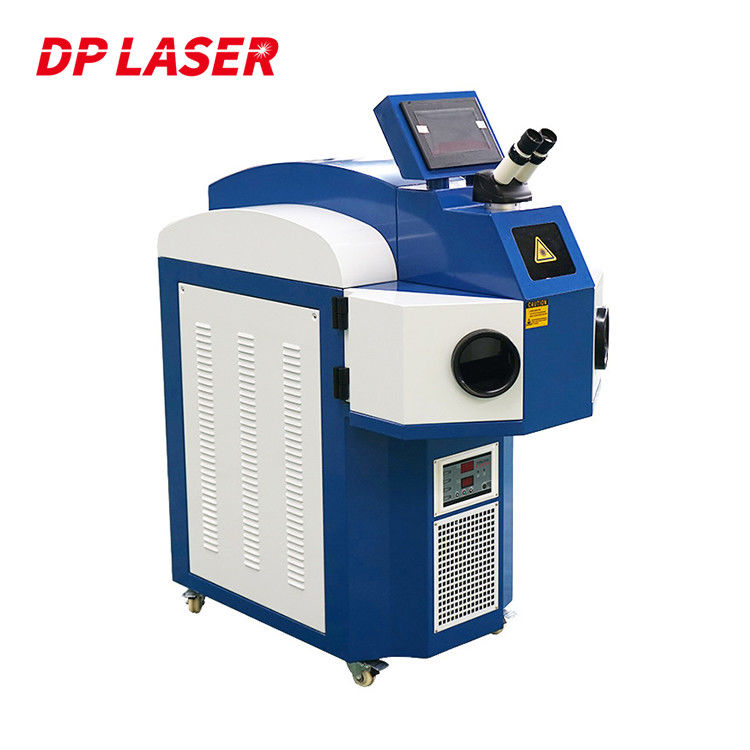

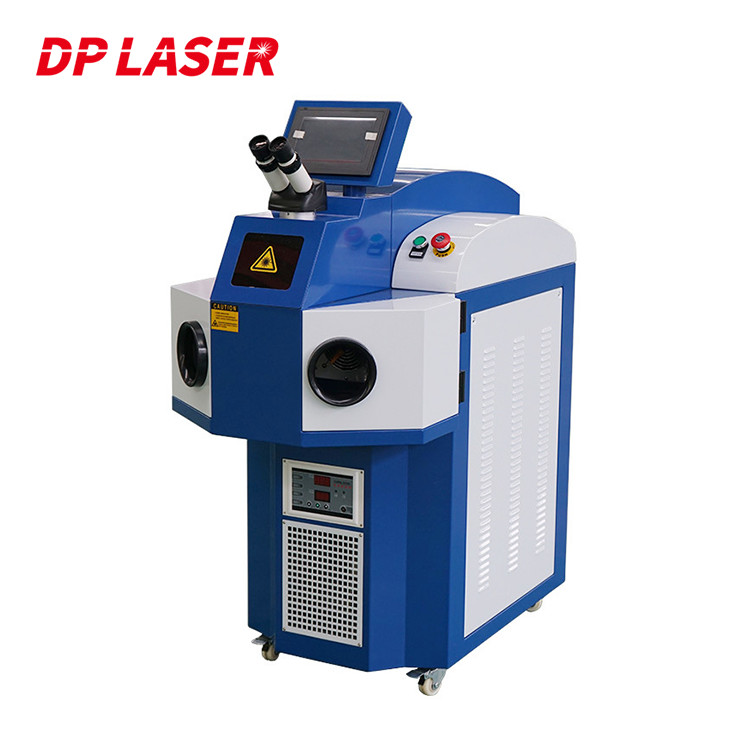

Ring Bangle Jewel Welding Machine , Bracelet Platinum Jewelry Spot Welder

Product Description:

The 200W Built-in Water Chiller YAG Jewelry Laser Welding Machine is designed for welding various jewelry pieces such as rings, bangles, bracelets, and platinum items. It utilizes YAG laser technology and comes with a built-in water chiller for efficient cooling. The machine is capable of delivering a maximum output power of 200W and offers precise and reliable welding performance. With its compact dimensions of 10805901230mm, it is suitable for jewelry workshops and manufacturing plants. The laser welding machine is easy to operate and is equipped with advanced features for enhancing productivity and quality.

Features:

• New condition machine with a warranty of 2 years.
• Maximum output power of 200W for efficient welding.
• Suitable for jewelry welding applications.
• Single pulse energy of 120J and pulse width ranging from 0.1 to 20ms.
• Laser wavelength of 1064nm for precise welding.
• Focal spot diameter adjustable from 0.3 to 2.5mm.
• Easy to operate with user-friendly controls.
• Applicable in various industries such as hotels, garment shops, manufacturing plants, and more.
• Provided with a machinery test report and video outgoing-inspection.

Technical Parameters:

Model	DPH-200SS-YAG-W
Laser wavelength	1064nm
Condenser reflector	Imported ceramic condensing cavity
Maximum laser power	200W
Voltage	380V three-phase / 220V single-phase (Voltage transformer is needed if for 110v)
Pulse width	0-20ms
Laser frequency	0-50Hz
Spot adjustment range	0.3-2.5mm
Cooling system	Built-in water chiller 1P
Rated power	6.5KW
Power demand	Standard three-phase 380V±5%/50Hz/20A Optional single-phase 220V
Packaging size(mm)	1080*590*1230mm
Gross weight(kg)	180
Usage environment temperature	10-30℃
