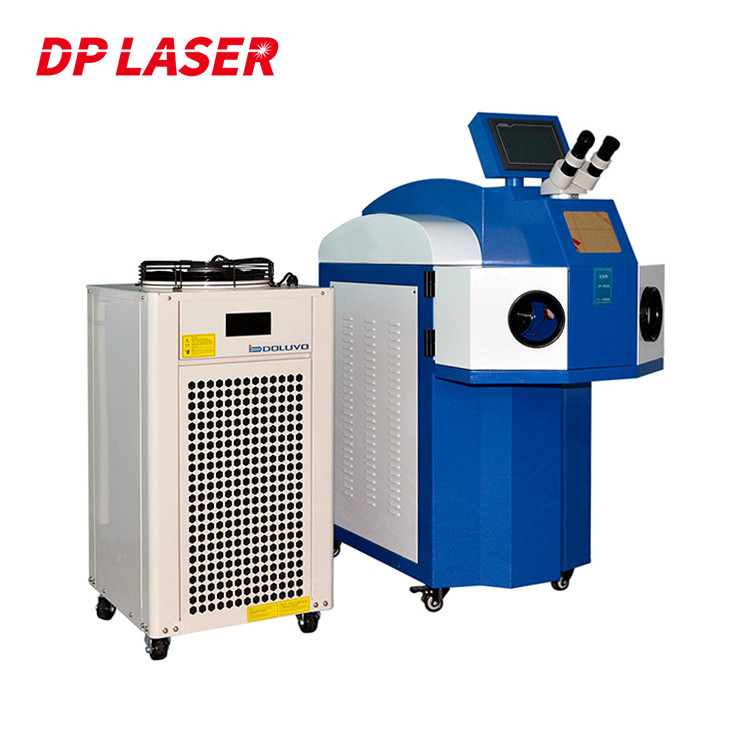

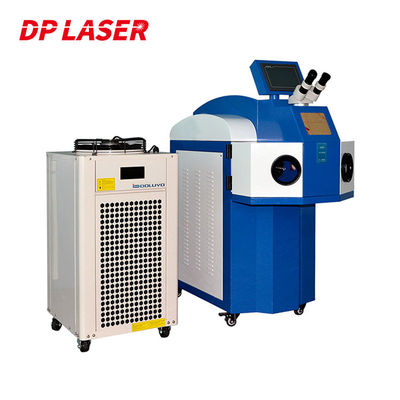

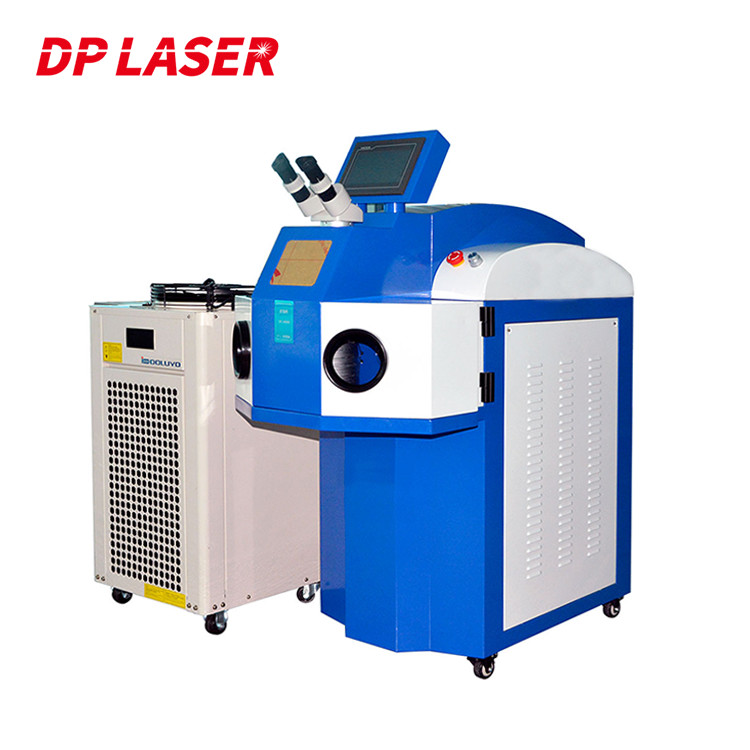

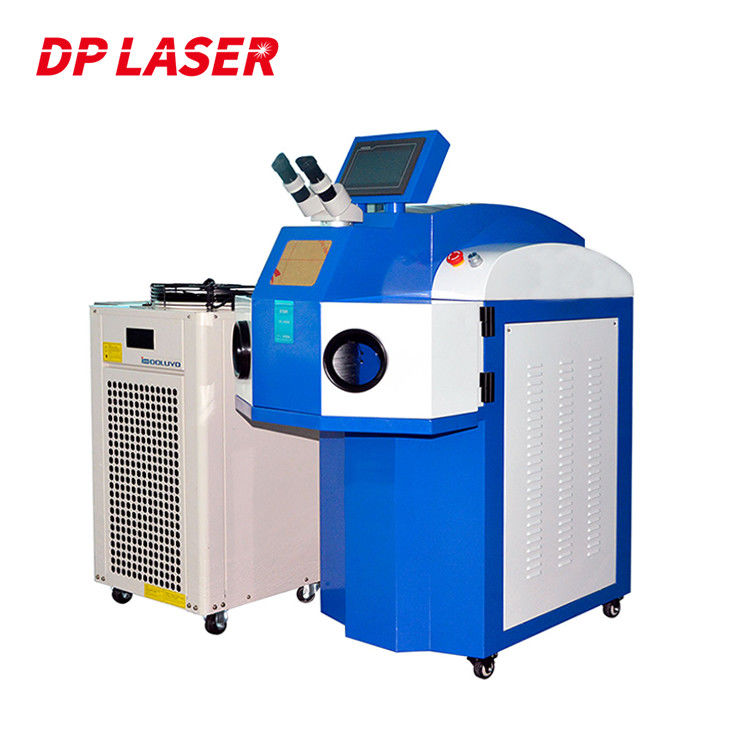

200W External Water Chiller Gold Silver Platinum Copper Stainless Steel YAG Jewelry Laser Welding Machine
Product Description:
The 200W External Water Chiller Gold Silver Platinum Copper Stainless Steel YAG Jewelry Laser Welding Machine is a high-quality and efficient welding equipment specifically designed for jewelry welding applications. It utilizes YAG laser technology and is equipped with an external water chiller for optimal performance and cooling. This machine is suitable for welding various jewelry materials such as gold, silver, platinum, copper, and stainless steel.
Features:
High Power Output: With a maximum output power of 200W, this laser welding machine delivers strong and precise welding performance for jewelry materials.
Easy to Operate: The machine is designed with user-friendly controls, making it easy for operators to set parameters and perform welding tasks.
Adjustable Spot Size: It offers a spot adjustment range of 0.3-2.5mm, providing flexibility in welding different jewelry sizes and designs.
External Water Chiller: The machine is equipped with an external water chiller, ensuring efficient cooling and prolonged operation.
Wide Application Range: It is suitable for welding a variety of jewelry materials, including gold, silver, platinum, copper, and stainless steel.
Technical Parameters:
Laser Wavelength: 1064nm
Max. Output Power: 200W
Pulse Width: 0.1-20ms
Focal Spot Diameter: 0.3-2.5mm
Dimensions: 1100X600X1250mm
Weight: 200 KG
Power Supply: 220V
Cooling System: External water chiller
Applications:
The 200W External Water Chiller Gold Silver Platinum Copper Stainless Steel YAG Jewelry Laser Welding Machine is widely used in the jewelry industry for various applications, including:
Welding gold, silver, platinum, copper, and stainless steel jewelry pieces.
Repairing damaged jewelry items.
Welding small components and findings in jewelry manufacturing.
Support and Services:
We provide comprehensive support and service for our customers, including:
Overseas engineers available for installation and training.
Door-to-door service for maintenance and repairs.
Technical consultation and assistance.
Availability of spare parts.
After-sales support to ensure smooth operation and customer satisfaction.
FAQ:
1.What is the maximum power output of this laser welding machine?
The maximum power output of this machine is 200W, providing strong welding performance.
2.What jewelry materials can be welded with this machine?
This machine is suitable for welding gold, silver, platinum, copper, and stainless steel jewelry.
3.Does the machine come with an external water chiller?
Yes, this machine is equipped with an external water chiller for efficient cooling during operation.
4.Can the spot size be adjusted?
Yes, the spot size is adjustable in the range of 0.3-2.5mm, allowing for flexibility in welding different jewelry sizes.
5.What kind of support and service do you provide?
We provide installation and training services, maintenance and repair services, technical consultation, spare parts availability, and after-sales support to ensure customer satisfaction.
200W External Water Chiller Gold Silver Platinum Copper Stainless Steel YAG Jewelry Laser Welding Machine
| Model | DPH-200SS-YAG-W |
Laser wavelength | 1064nm |
| Condenser reflector | Imported ceramic condensing cavity |
| Maximum laser power | 200W |
| Voltage | 380V three-phase / 220V single-phase (Voltage transformer is needed if for 110v) |
| Pulse width | 0-20ms |
| Laser frequency | 0-50Hz |
| Spot adjustment range | 0.3-2.5mm |
| Cooling system | External water chiller 1P |
| Rated power | 6.5KW |
| Power demand | Standard three-phase 380V±5%/50Hz/20A Optional single-phase 220V |
| Packaging size(mm) | 1100*600*1250mm |
| Gross weight(kg) | 200 |
| Usage environment temperature | 10-30℃ |
