Practical Fiber Laser Cutting Machine 1500W 3000W Water Cooling

Basic Information
Place of Origin: CHINA
Brand Name: DAPENG
Certification: CE ISO
Model Number: DPE-F1500/3000
Minimum Order Quantity: 1set
Price: USD10000-USD38000
Packaging Details: Plywood box
Delivery Time: 35 Days
Payment Terms: T/T
Supply Ability: 60 Sets per month
Detail Information
Wavelength: 1064nm Warranty: 1 Year
Cooling System: Water Cooling Key Word: Fiber Laser Cutting Machine
Laser Type: Fiber Laser Certification: CE
High Light:

Practical Laser Cutting Machine

,

Laser Cutting Machine 1500W

,

Water Cooling Fiber Cutting Laser Machine


Product Description

Fiber laser cutting machine 1500W 3000W cut metal fiber Laser cutters CE DAPENGLASER



Main Feature:

1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal



Main Components list:

No. Description Made of origin place and Manufacturer
1 Fiber Laser source

Raycus 1.5/3 KW,

IPG 1.5/3KW

2 Laser Head Raytools(Optional autofocus)
3 Guide Rails Hiwin from Taiwan or RexRoth Guide rail
4 Rack & Pinion YYC from Taiwan or Appex Race pinion gear.
5 Speed Reducer Shimpo from Japan or Nugart speed reducer
6 Servo Motor & Driver Schneider from France or yaskawa servo motors
7 Proportional Valve Aventics from Germany
8 Pneumatic Components Airtac from Taiwan
9 Circuit Breaker Schneider from France
10 Relay Omron from Janpan
11 Chiller China TONGFEI
12 Cutting System China Cypcut
13 Bed DAPENG 5500kg/9500kg
14 Cable Carrier IGUS



Specifications:



Model DPE-F1500/3000
Laser power 1500W/3000W
Cutting area(mm)(L×W) 3000mm×1500mm
Max cutting speed(m/min) 120 m/min
Max Accelerated 1.5G
Positioning accuracy ±0.03mm
Repeatability accuracy ±0.02mm
Min line width 0.15mm
Max Cutting depth (Mild Steel) 16mm
Stainless Steel N2 8mm
Aluminum 6mm
Driving Way Imported servo motor
Tranmission Way Imported gear rack & pinion double driver
Electrical Requirements 380V/50Hz.60Amp
Power Consumption 12KW
Work Piece Weight 800kg
Weight 5500kg
Outline size with pallet changer(mm) 8800mm×3500mm×1900mm (L×W×H)



Applicable Materials:
Stainless steel, Mild steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet.

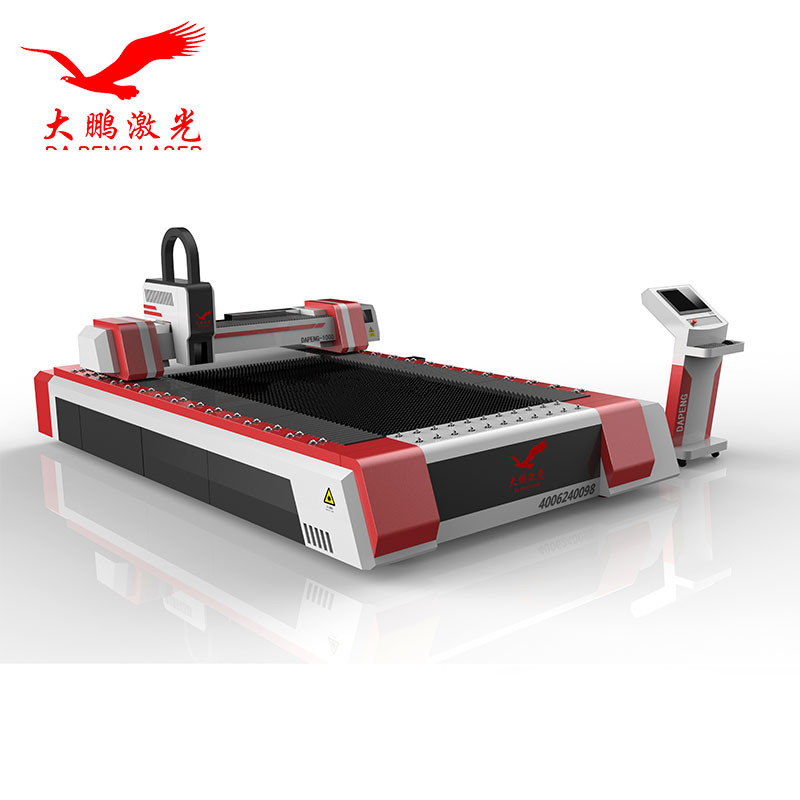

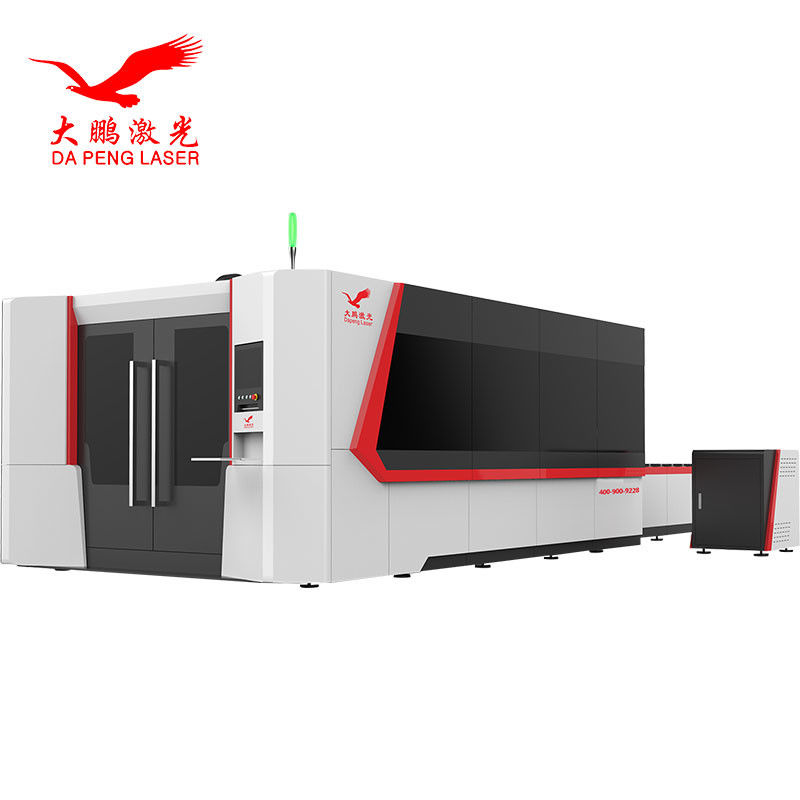

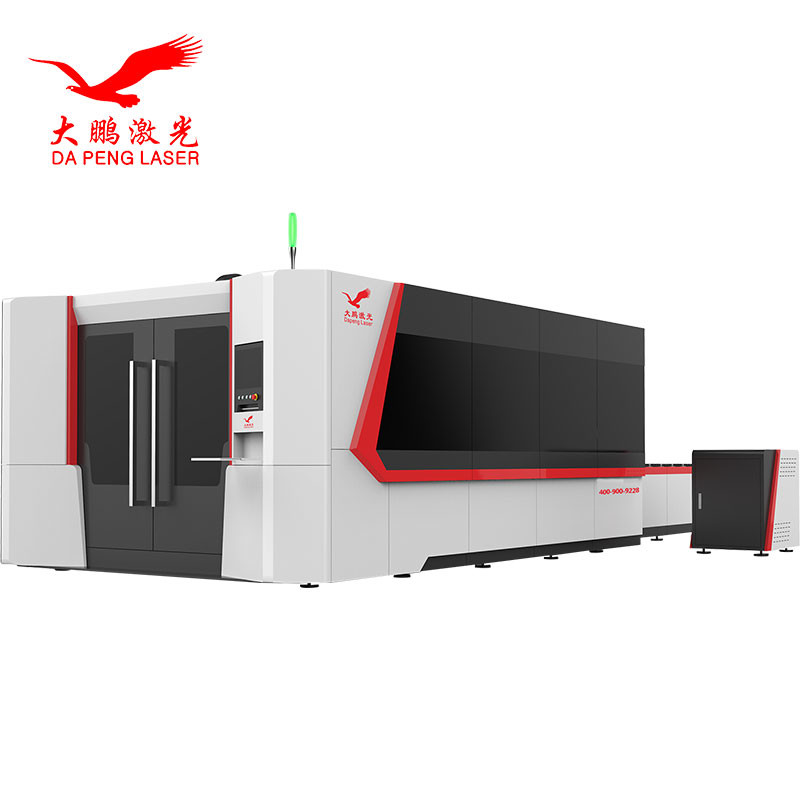

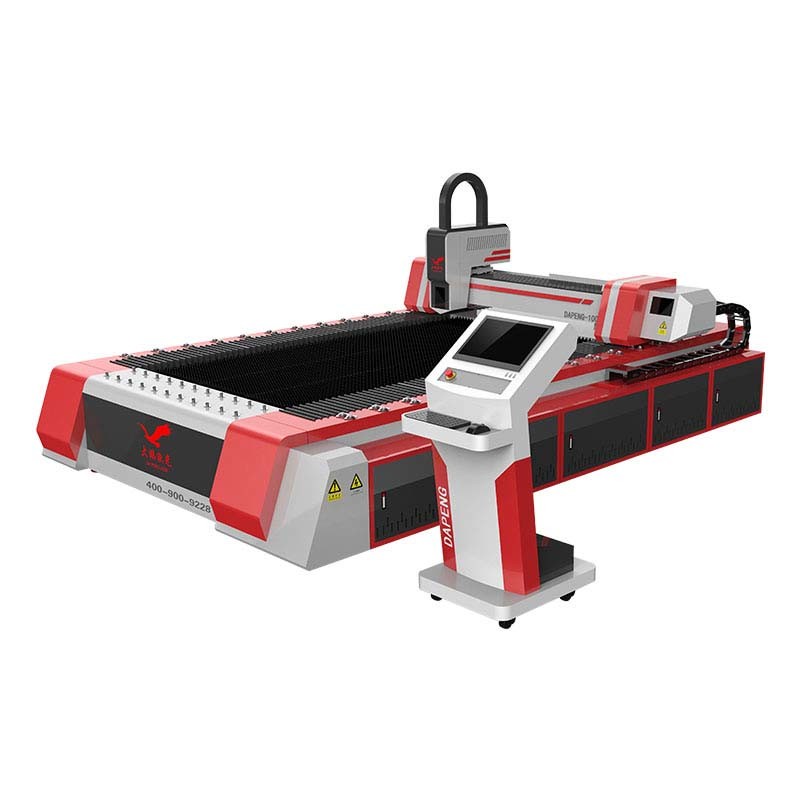

Practical Fiber Laser Cutting Machine 1500W 3000W Water Cooling 0Practical Fiber Laser Cutting Machine 1500W 3000W Water Cooling 1

Practical Fiber Laser Cutting Machine 1500W 3000W Water Cooling 2Practical Fiber Laser Cutting Machine 1500W 3000W Water Cooling 3

Practical Fiber Laser Cutting Machine 1500W 3000W Water Cooling 4Practical Fiber Laser Cutting Machine 1500W 3000W Water Cooling 5

Practical Fiber Laser Cutting Machine 1500W 3000W Water Cooling 6

Practical Fiber Laser Cutting Machine 1500W 3000W Water Cooling 7

Practical Fiber Laser Cutting Machine 1500W 3000W Water Cooling 8

Practical Fiber Laser Cutting Machine 1500W 3000W Water Cooling 9



Practical Fiber Laser Cutting Machine 1500W 3000W Water Cooling 10

Tag: laser cutting equipment, metal laser cutting machine



We are manufacturer of fiber laser cutting machine with 12 years of production experience.We offer complete machine solution,also provide laser source,CNC controller ,laserhead, water chiller,servo,custom made machine table,training and service,etc. one-stop solution!


Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.


We are looking for distributor. Price is more competitive.

We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.
