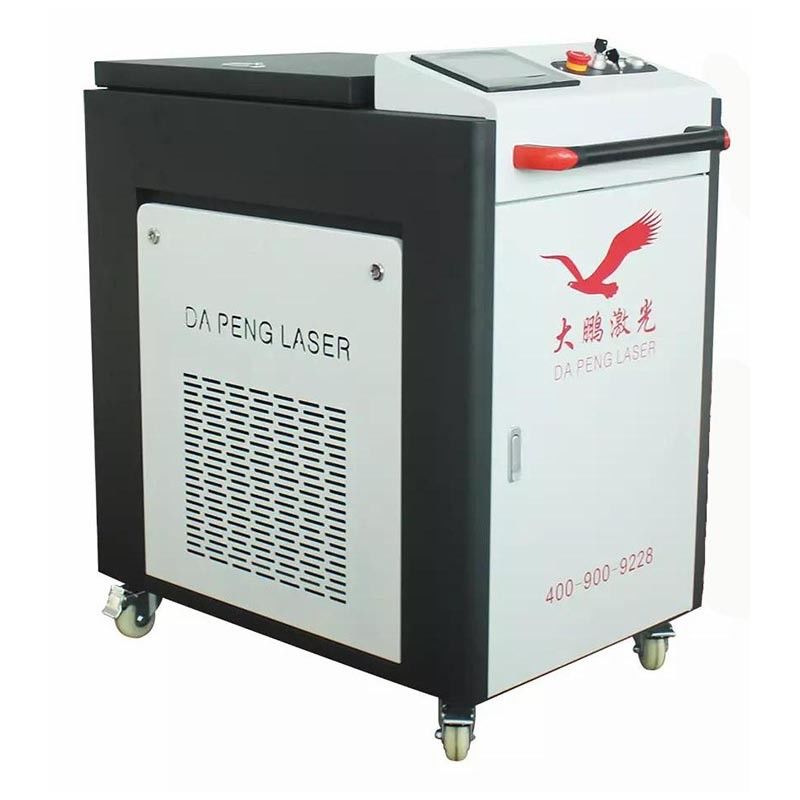

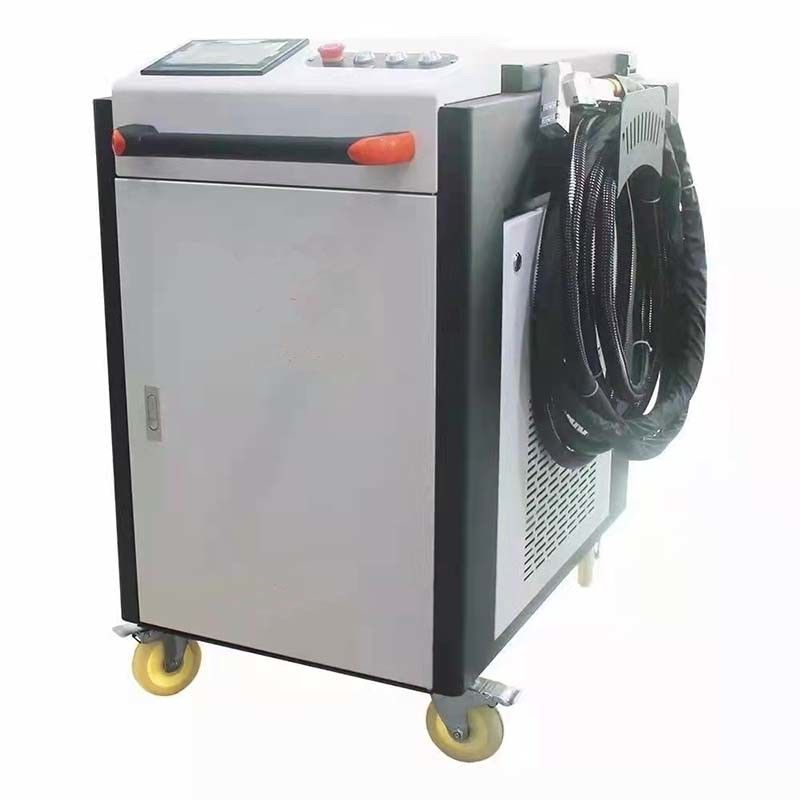

Laser cleaning machine Rust Removal 1000w 1500w 2000w Free Maintenance DAPENG LASER
1.Features
1.1. High power fiber laser cleaning.
1.2.Non-contact cleaning, no damage to workpiece
1.3.Precision positioning, selective cleaning, desired cleaning area can be applied to the workpiece.
1.4.No need chemical detergent, no consumable. Safe & environment-friendly.
1.5.Easy to operate ,Either portable or equipped with robot for automatic cleaning.
1.6.High cleaning efficiency, time-saving.
1.7.Stable laser cleaning system, free maintenance.
Applications
1.Metal surface rust removal
2.Paint cleaning
3.Oil stain, contaminant cleaning
4.Coating surface cleaning
5.Welding/Coating surface pre-treatment.
6.Stone figure surface dust & attachment cleaning.
7.Plastic mould residues cleaning.
| Power(W) |
1000W |
1500W |
2000W |
| Power adjustment range (W) |
10-100% |
10-100% |
10-100% |
| Cleaning head weight (KG) |
0.8KG |
0.8KG |
0.8KG |
| Scan width (MM) |
0-150mm |
0-150mm |
0-150mm |
| Cooling method |
Chiller |
Chiller |
Chiller |
| Electricity |
220V-50/60HZ |
220V-50/60HZ |
220V-50/60HZ |
| Maximum power consumption (W) |
5000W |
7000W |
9000W |
| Operating temperature (℃) |
5-35℃ |
5-35℃ |
5-35℃ |
| Weight(KG) |
150KG |
180KG |
240KG |
| Size (mm) |
830X560X1050 |
830X560X1050mm |
1600X1200X1950mm |
| Cleaning efficiency: paint/floating rust 20um, |
45m2/h |
67.5m2/h |
90m2/h |
| Cleaning efficiency: 20um greasy dirt, (m2/h) |
62m2/h |
90m2/h |
120m2/h |
| Cleaning efficiency: titanium alloy oxide film/stainless steel weld seam (m2/h) |
28m2/h |
40.5m2/h |
55m2/h |
Comparison of performance between handheld laser cleaning machine and other cleaning methods
| Content |
Chemical cleaning |
Mechanical polishing |
Dry ice cleaning |
Ultrasonic cleaning |
Laser cleaning |
| Cleaning method |
Chemical cleaning agent |
Mechanical/sandpaper, contact type |
Dry ice, non-contact |
Cleaning agent, contact type |
Laser, non-contact |
| Workpiece damage |
Damaged |
Damaged |
No damage |
No damage |
No damage |
| Cleaning efficiency |
low |
low |
medium |
medium |
High |
| Cleaning effect |
Common,uneven |
Common,uneven |
Excellent, uneven |
Excellent, small clean area |
Very good,High cleanliness |
| Cleaning accuracy |
Uncontrollable, poor accuracy |
Uncontrollable, average precision |
Uncontrollable, poor accuracy |
Cannot be cleaned within a specified range |
Precise and controllable, high precision |
| Safety/environmental protection |
Serious chemical pollution |
polluted environment |
No pollution |
No pollution |
No pollution |
| Manual operation |
The process is complex and requires high requirements for the operator, and protective measures are required |
Strong physical strength, need safety protection measures |
Simple operation, handheld or automated |
Simple operation, but need to manually add consumables |
Simple operation, handheld or integrated automation |
| Consumables |
Chemical cleaning agent |
Sandpaper, grinding wheel, whetstone, etc. |
dry ice |
Dedicated cleaning fluid |
Only need power supply |
| Cost input |
Low initial investment, high cost of consumables |
High initial investment and high labor cost for consumables |
Medium investment for the first time, high cost of consumables |
Low initial investment, medium cost of consumables |
High initial investment, no consumables, low maintenance cost |
