Condition: | New | Max. Output Power: | 1000W-3000W |
---|---|---|---|
Usage: | Metal Welding | Wavelength: | 1064nm |
Dimensions: | 1000x550x1150mm | Warranty: | 1 Year |
Laser Source Brand: | MAX | Laser Head Brand: | SUP/QILIN |
Weight (KG): | 230 KG | Key Selling Points: | Easy To Operate |
Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1.5 Years |

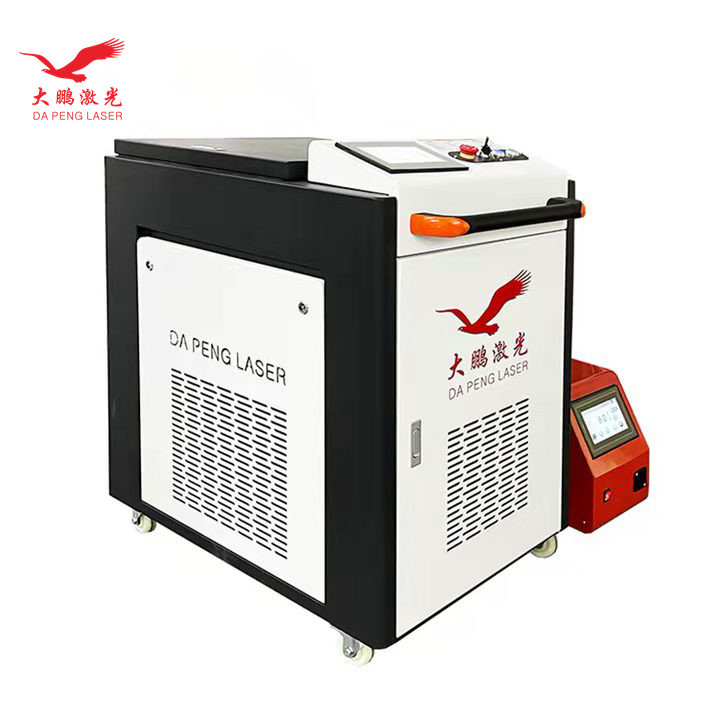

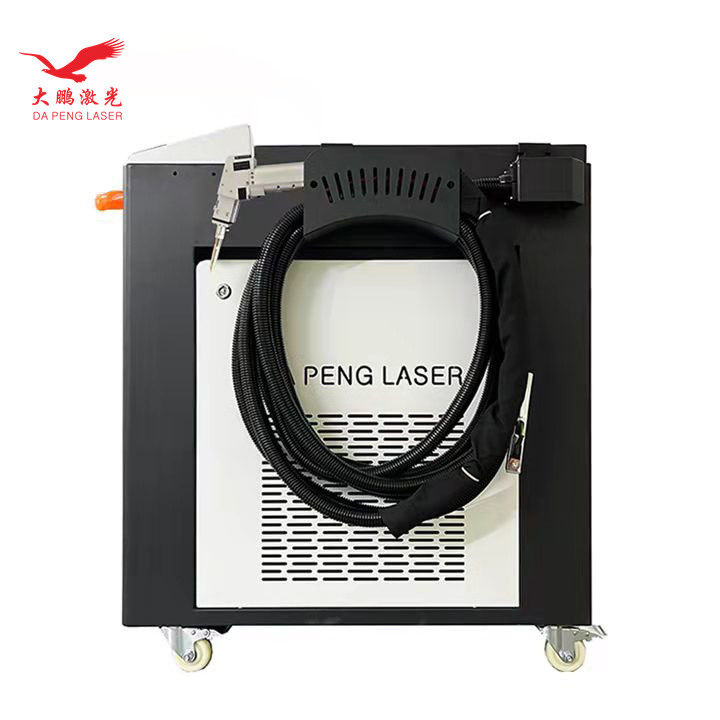

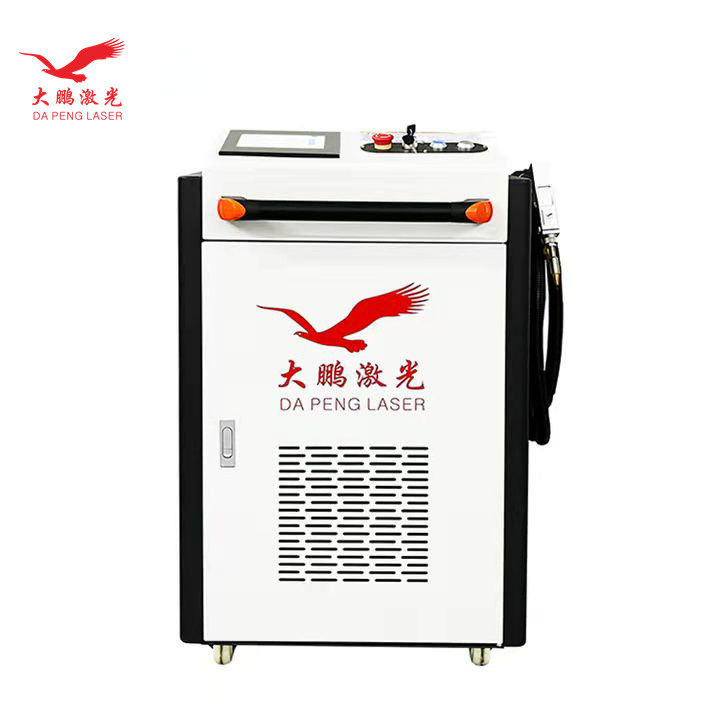

Product Name: | HandHeld Fiber Cleaning Welding Cutting Machine | Function: | Welding Steel Tube |
Application Material: | Aluminum Stainless Steel Carbon Steel | Positioning: | External Universal Fixture |
Welding Head: | Chaoqiang | Power Consumption: | 1000W/1500W/2000W/3000W |
Cooling Method: | Water Chiller Hanli | Applied Industry: | Metal Rust Remover Processing |
Laser Source: | IPG Raycus Max JPT | Keywords: | 3 In 1 Fiber Laser Welding Equipment |
Port: | China Or Shen Zhen Ports | ||
High Light: | CE Handheld Laser Welding Machine,Handheld Laser Welding Machine 1500W,2000W 3 In 1 Laser Welding Machine |
Model
|
DPH-1000-HL
|
DPH-1500-HL
|
DPH-2000-HL
|
||
Laser source type
|
Fiber source
|
Fiber source
|
Fiber source
|
||
Function
|
3 IN 1 Handheld Fiber Laser Cleaning Welding Cutting Machine
|
|
|
||
Laser Out Power
|
1000W
|
1500W
|
2000W
|
||
Laser wavelength
|
1070nm
|
1070nm
|
1070nm
|
||
Laser Source
|
Raycus/Max/IPG/nLIGHT
|
Raycus/Max/IPG/nLIGHT
|
Raycus/Max/IPG/nLIGHT
|
||
Focal spot diameter
|
0.1-3mm
|
0.1-3mm
|
0.1-3mm
|
||
Laser frequency
|
1-50Hz
|
1-50Hz
|
1-50Hz
|
||
Repeatability
|
±0.01mm
|
±0.01mm
|
±0.01mm
|
||
Machine operating temperature
|
0~40℃
|
0~40℃
|
0~40℃
|
||
Electricity demand
|
220V
|
220V
|
220V/380V
|
||
Cooling method
|
Water Chiller Hanli
|
Water Chiller Hanli
|
Water Chiller Hanli
|
||
Continuous operating time
|
24 hours
|
24 hours
|
24 hours
|
||
Weight
|
230kg
|
230kg
|
230kg
|
||
Dimensions
|
100*100*172cm
|
100*100*172cm
|
100*100*172cm
|
