Product Description:
The laser welding machine adopts 100-2000 watt fiber laser, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion.
Features:
1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
Technical Parameters:
Laser Type: CW Laser
Laser Power: 1500w/2000w
Wavelength: 1070nm
Cooling Method: Water cooling
Power Supply: 220V
Applications:
It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace, aviation, power battery and daily necessities industries.
Support and Services:
We are committed to providing excellent support and service to our customers. Our knowledgeable and responsive team is available to assist you with any inquiries, technical issues, or product-related questions you may have. We offer comprehensive after-sales support, including troubleshooting, maintenance guidance, and warranty coverage.
FAQ:
Q: Can this machine remove rust from any type of metal?
A: Yes, the multifunctional laser rust remover is suitable for various metals, including steel, iron, aluminum, copper, and more.
Q: Is it safe to use this machine on delicate surfaces?
A: Yes, the non-contact laser cleaning feature ensures that delicate surfaces are not damaged during the cleaning process. However, it is always recommended to test on a small area first.
Q: How long is the warranty period for this machine?
A: The warranty period for this machine is one year, laser source is 2 years, ensuring peace of mind for our customers.
Q: Can I adjust the power and speed settings for different applications?
A: Yes, the machine offers adjustable power and speed settings, allowing you to optimize the performance based on your specific requirements.

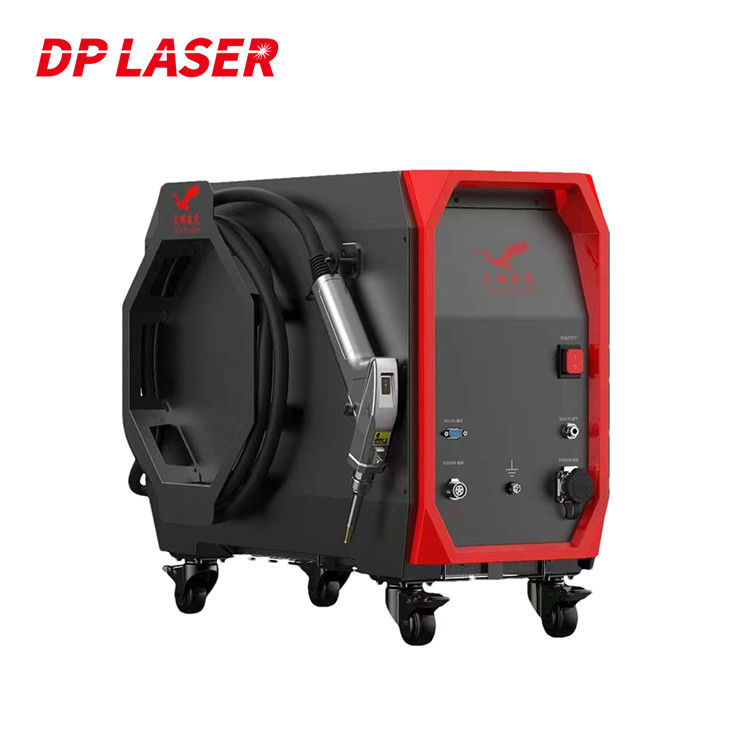

3 IN 1 Multifunction Metal Laser Rust Remover Handheld Fiber Laser Cleaning Welding Cutting Machine
| Model |
DP-HL-1000 |
DP-HL-1500 |
DP-HL-2000 |
DP-HL-2000 |
| Laser Power |
1000W |
1500W |
2000W |
3000W |
| Laser Source |
Raycus/Max/IPG |
Raycus/Max/IPG |
Raycus/Max/IPG |
Raycus/Max/IPG |
| Laser Head |
3 IN 1 |
3 IN 1 |
3 IN 1 |
3 IN 1 |
| Fiber Wire Length |
10 Meters |
10 Meters |
10 Meters |
10 Meters |
| Laser Wavelength |
1070nm |
1070nm |
1070nm |
1070nm |
| Operate Mode |
Continuation/Modulate |
Continuation/Modulate |
Continuation/Modulate |
Continuation/Modulate |
| Water Chiller |
Hanli |
Hanli |
Hanli |
Hanli |
| Spot Adjusting Range |
0.1-3mm |
0.1-3mm |
0.1-3mm |
0.1-3mm |
| Repeating Precision |
±0.01mm |
±0.01mm |
±0.01mm |
±0.01mm |
| Cabinet Size |
744*941*1030mm |
744*941*1030mm |
750*1260*1110mm |
750*1260*1110mm |
| Machine Weight |
About 200KG |
About 200KG |
About 220KG |
About 220KG |
| Voltage |
110V/220V/380V |
110V/220V/380V |
110V/220V/380V |
110V/220V/380V |
We are manufacturer of fiber laser cutting machine with 12 years of production experience. We offer complete machine solution, also provide laser source, CNC controller, laser head, water chiller, servo, training and service, etc. one-stop solution!
Our core advantages:
1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.
We are looking for distributor. Price is more competitive.
We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.
