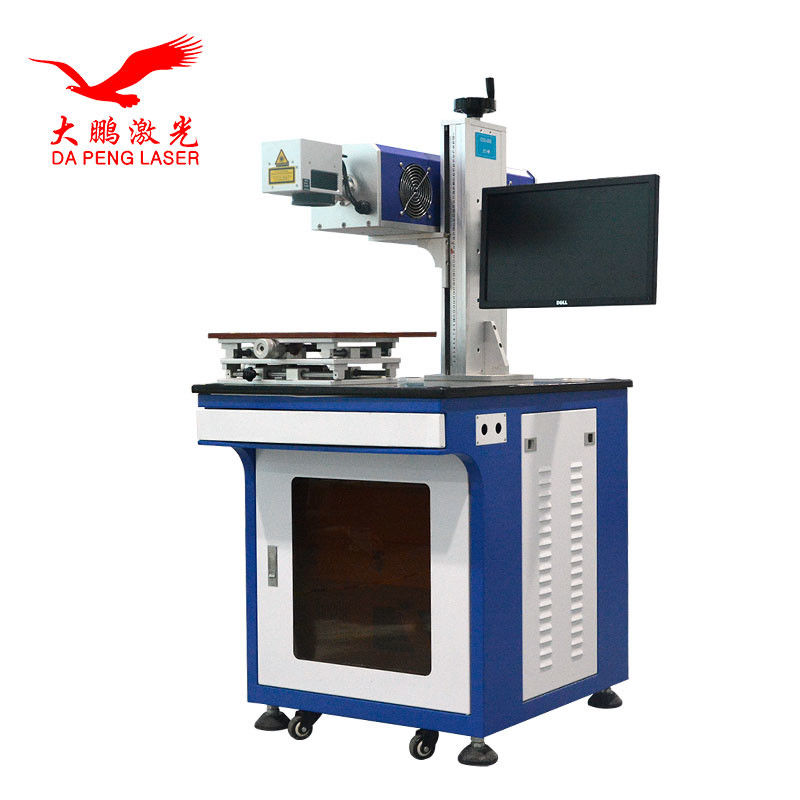

CO2 laser marking machine 30W 60W CO2 Laser markers for wood leather acrylic
Features:
The CO2 laser uses CO2 gas as the working substance to charge CO2 and other auxiliary gases into the discharge tube. When a high voltage is applied to the electrode, a glow discharge is generated in the discharge tube, so that the gas molecules release the laser light; the released laser energy is expanded. After beaming and focusing, laser processing can be performed by deflecting the scanning galvanometer.
Advantages:
• High precision marking, fast speed and random control of carving depth;
• High laser power, suitable for engraving and cutting of a variety of non-metallic products;
• No consumables, low processing cost, laser operating life of up to 20000-30000 hours;
• Clear marking, not easy to wear, high efficiency in engraving and cutting, environmental protection and energy saving;
• Support PLT, PCX, DXF, BMP, JPGET, etc., can directly use SHX, TTF fonts;
• Support automatic coding, printing serial number, batch number, date, barcode, QR code, etc.
• Powerful graphics rendering and editing capabilities.
Application:
Engraving a variety of non-metallic materials. Used in clothing accessories, pharmaceutical packaging, architectural ceramics, beverage packaging, fabric cutting, rubber products, shell nameplates, craft gifts, electronic components, leather and other industries. Typical application cases, such as laser marking for packaging box, coding and marking of paper and metal detonator casings.
Technology parameters
| Power |
30W/60W |
| Laser wavelength |
10.64um/9.3um |
| Power adjustment range |
10-100% |
| Repetition frequency |
≤20KHz |
| Marking linear depth |
≤3mm |
| Minimum line width |
0.1mm |
| Min. Character size |
0.4mm |
| Repetition accuracy |
±0.01mm |
| Max. Liner marking speed |
7000mm/s |
| Marking format |
Graphics,character,bar code,two-dimensional code,date,serial number |
| Software |
EZCAD+support file formats of PLT,DXF,CDR,AI,DWG,etc |
| Standard marking area |
100×100mm |
| Power consumed |
<1.2KW |
| Electrical demand |
220V 10%/50Hz/4A |
| Cooling mode |
Air-cooling |
| Control interface |
USB |
| Usage environment |
Clean,no shaking |
Software: EZCAD
| True Type Fonts |
Single Stroke Fonts |
Elliptical Text |
| Sequential Serial Numbers |
Customizable Auto Dating |
Barcodes |
| QR Codes and Data Matrix |
UID Wizard |
Logos |
| Images - JPG, TIF, GIF |
CorelDraw, Adobe Illustrator |
Raster Graphics |
| Vector Graphics |
CAD Files |
|
Packing
