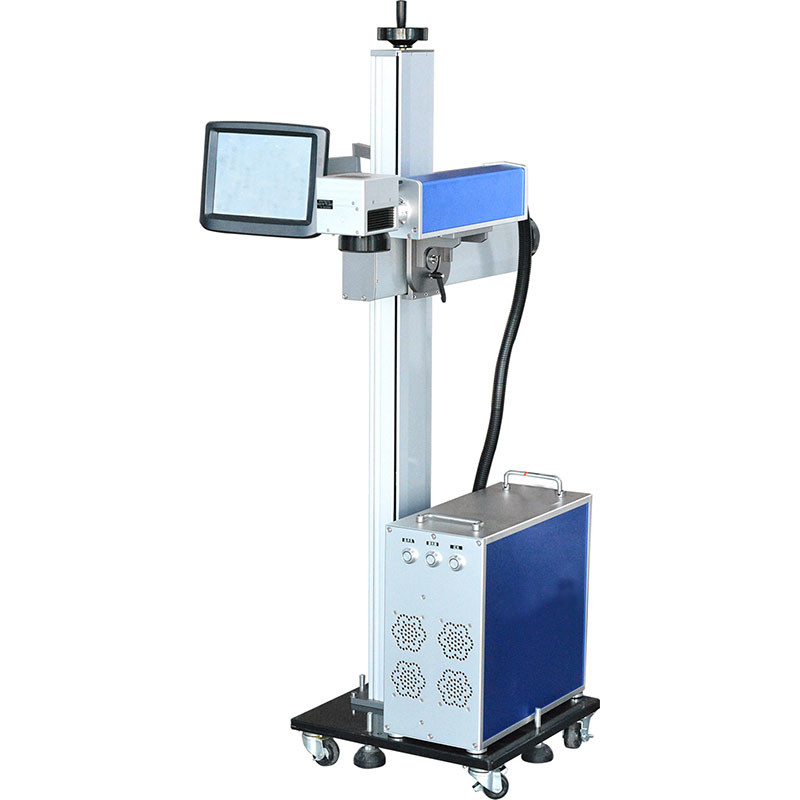

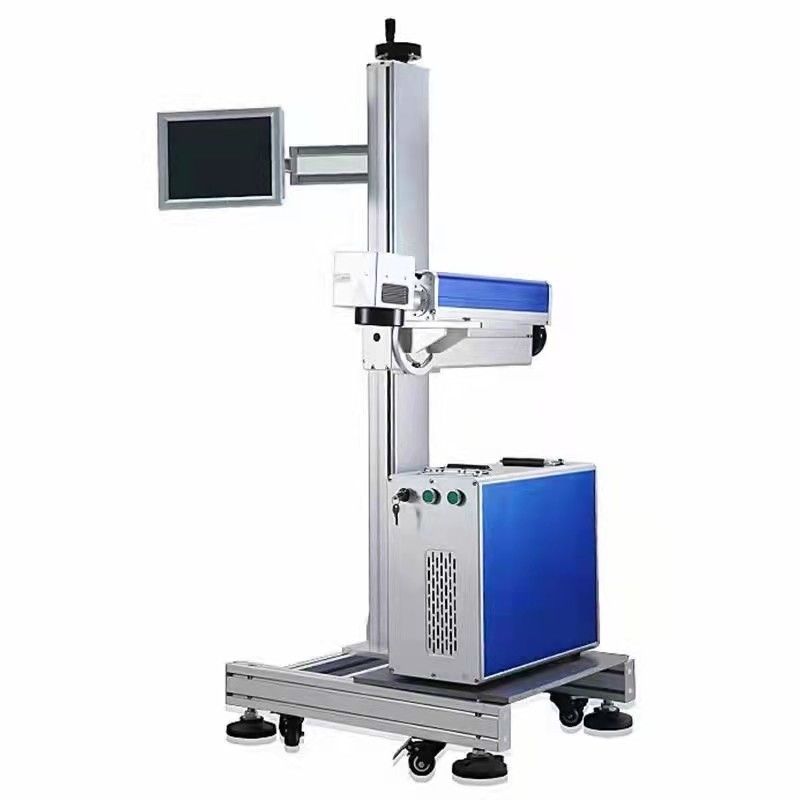

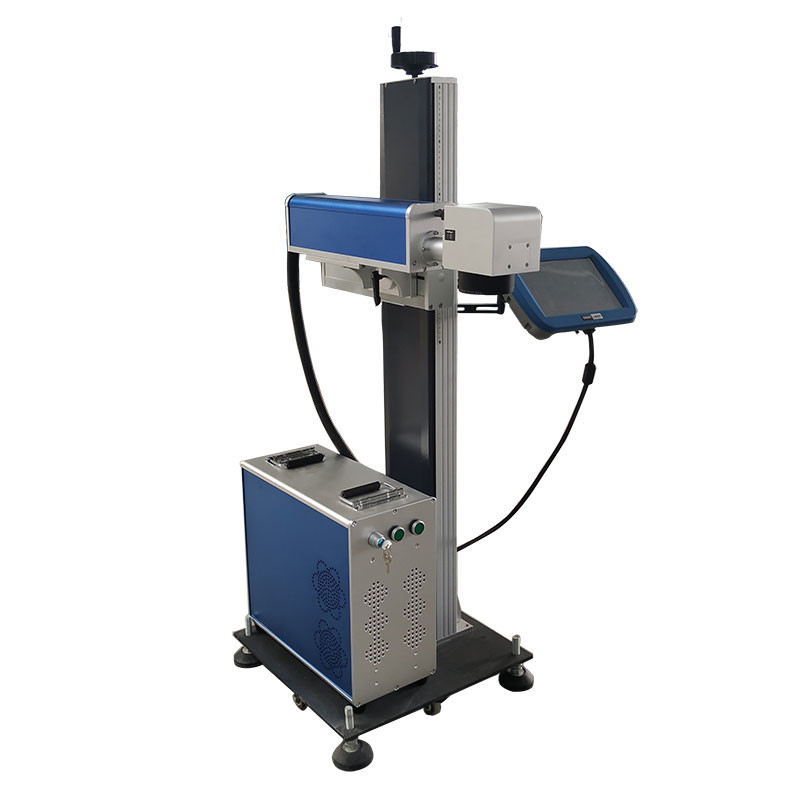

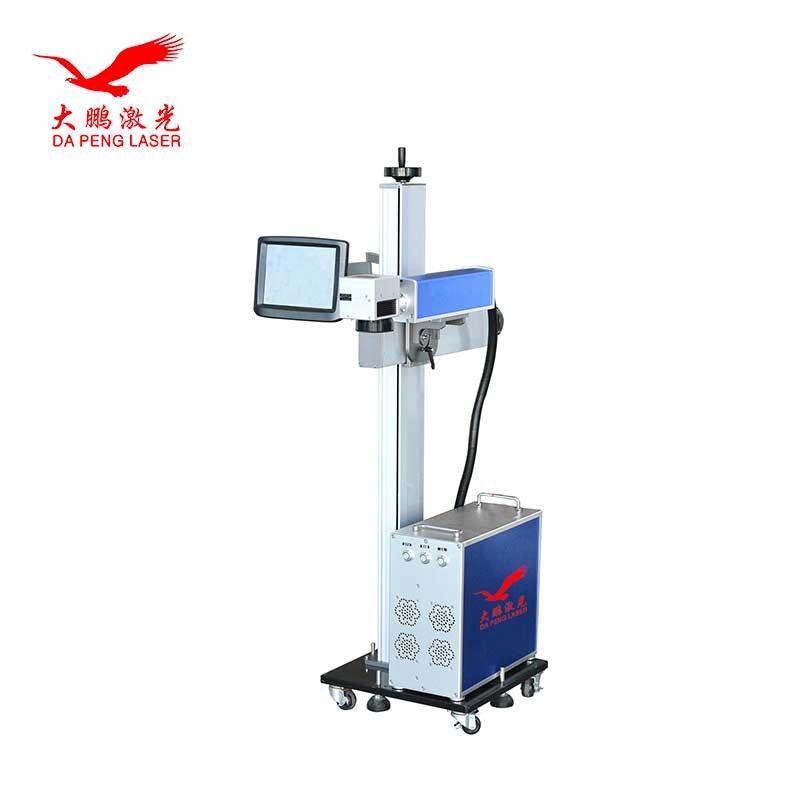

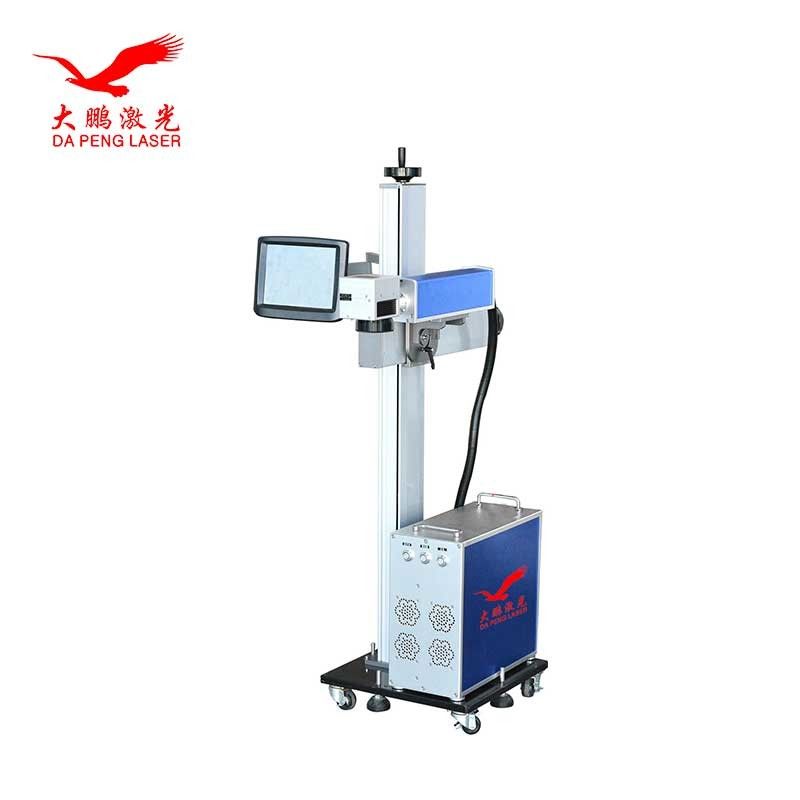

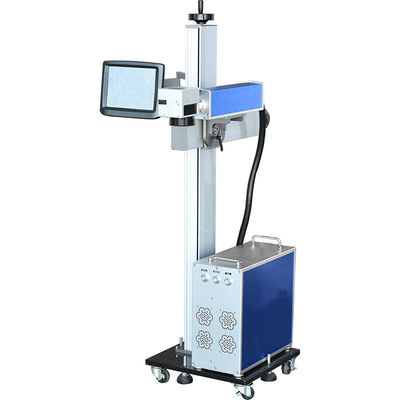

Flying laser marking machine 30W 50W fiber Laser on the fly laser printing CE
Features:
1.Excellent light quality:
Comparing with traditional solid laser marking machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking.
2. Low usage cost:
① Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500W, it is the 1/10 of laser pump lamp marking machine. It greatly saves the cost in power consumption.
② No consumable ink cost burden and eliminating the troubles of cleaning the inkjet printer nozzle everyday.
3. Free maintenance & long service life:
Using laser diode as the source of pump, full sealing light path design, its average no-failure operation is over 100 thousand hours.
4. Fast process speed:
Its processing speed is 5-10 times faster than traditional laser marking machine.
Application :
Metal Industry, Jewelry Factories, Hardware Tools, Electronics Components, Auto Parts, Mobile & Accessories, Clock&Watches, Planting Coating Materials, Spray Material, Plastic, Spectacles,etc.
Specification:
| Laser wavelength |
1064nm |
| Power adjustment range |
10-100% |
| Repetition frequency |
20-80KHz |
| Output beam quality |
M2:1.2~1.8 |
| Marking linear depth |
0.01-0.2mm |
| Min. Spot diameter |
0.01mm |
| Min. Character size |
0.1mm |
| Repetition accuracy |
±0.02mm |
| Max. Liner marking speed |
7000mm/s |
| Marking format |
PLT, DXF,character,bar code,two-dimensional code,date,serial number |
| Field lens |
100*100mm, 150*150mm |
| Power consumed |
500W |
| Electrical demand |
Ac220V±10%.50Hz.10Amp |
| Software |
Screen touch system |
| Cooling mode |
Air-cooling |
| Operational Temp Range |
10-40℃ |
| Usage environment |
Clean,no shaking |
| Laser source |
MAX or Raycus or JPT |
| Scanhead |
V3 or V7 |
| Touch screen |
V1 or V4 |
| Signal |
Cable for start signal and finish signal |
Packing
Tag:
laser marking equipment, metal laser marking machine, laser marking on the fly, flying laser printing.
We are manufacturer of fiber laser cutting machine with 12 years of production experience.We offer complete machine solution,also provide laser source,CNC controller ,laserhead, water chiller,servo,custom made machine table,training and service,etc. one-stop solution!
Our core advantages:
1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.
We are looking for distributor. Price is more competitive.
We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.
