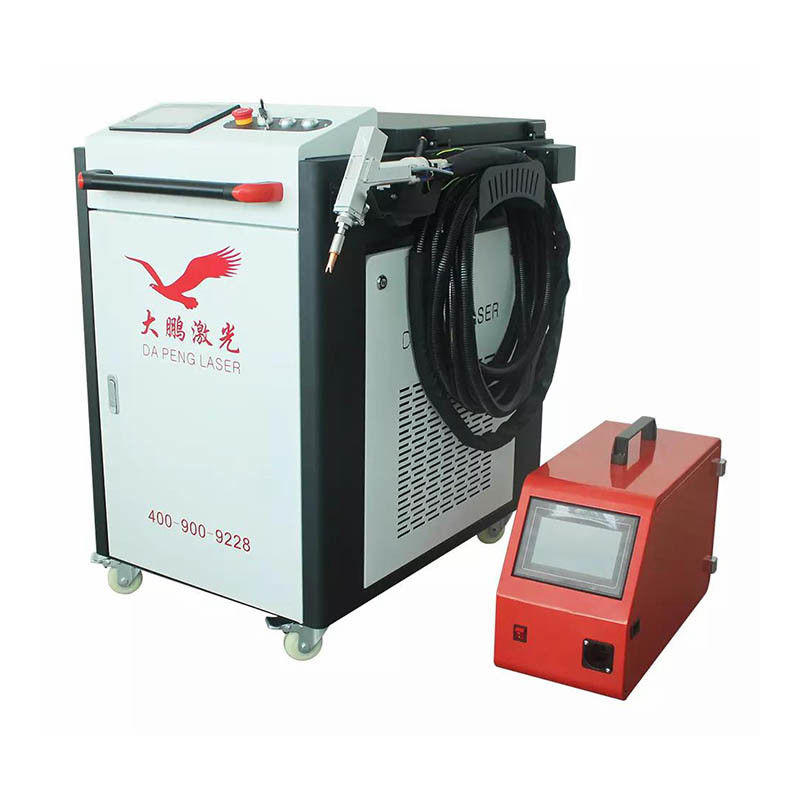

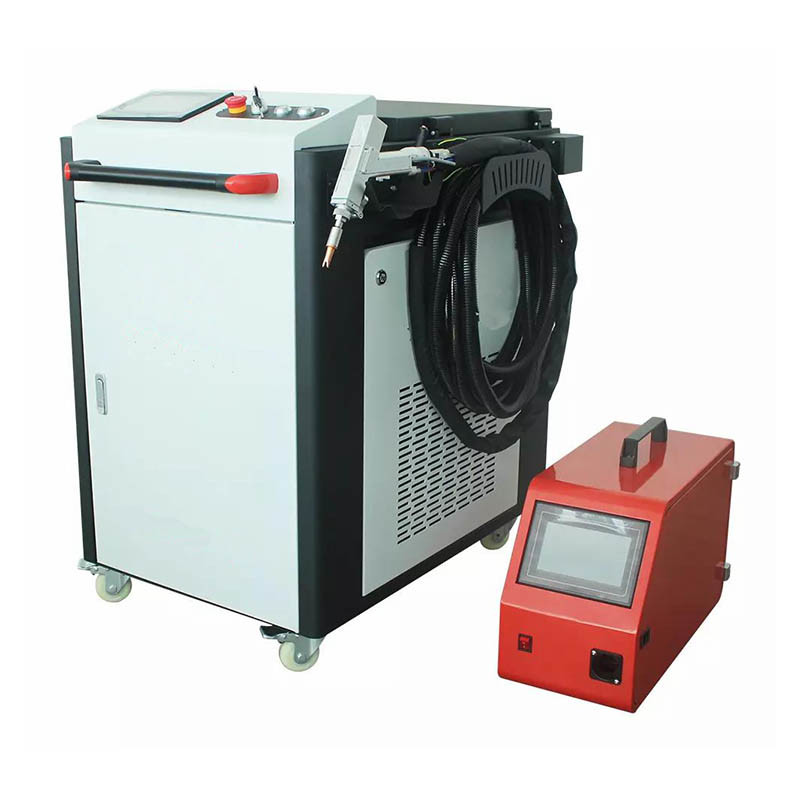

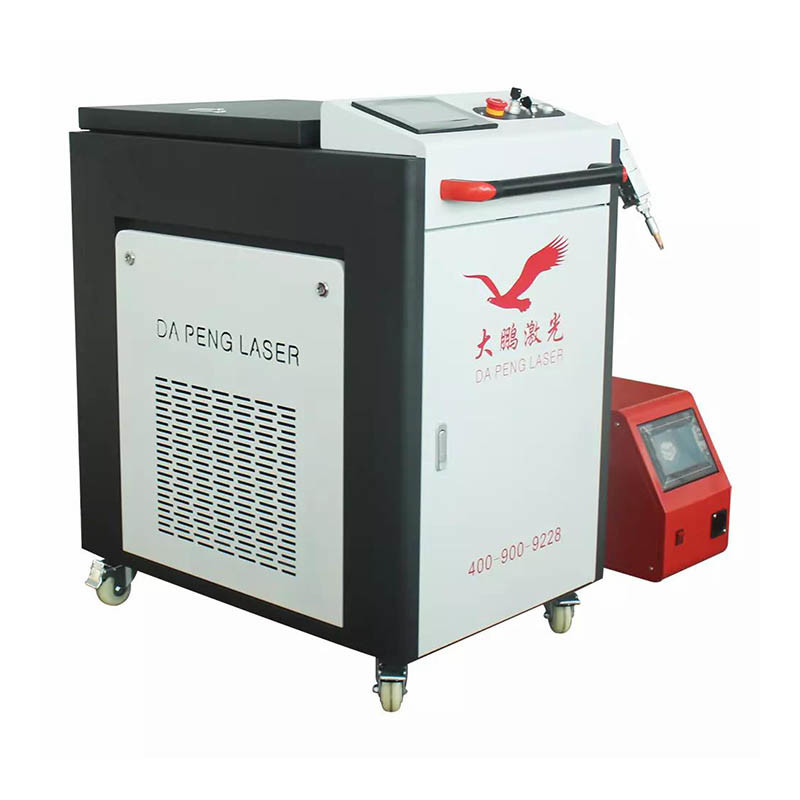

Handheld Laser Welding Machine 1500W 2000W laser welder Aluminium stainless steel
Product advantages:
The laser welding machine adopts fiber laser, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times than that of YAG laser.
Features:
1. The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2. High cooling rate, which can weld fine weld structure and good joint performance.
3. Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4. The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5. No consumables, small size, flexible processing, low operating and maintenance costs.
6. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Application areas:
It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace, aviation, power battery and daily necessities industries.
Technology parameters
| Laser power |
1500W/2000W/3000W |
| Center wavelength |
1080nm |
| Output power stability |
＜3% |
| Laser frequency |
50Hz-5KHz |
| Adjustable power range |
10-100% |
| Beam quality |
1.1 |
| Optimal operating environment |
Temperature 0-40 ° C, humidity 20% -80% |
| Electricity demand |
AC220V |
| Output fiber length |
10m |
| Cooling method |
Chiller inside |
| Total power |
7kw(1500w); 9KW(2000w) |
Machine configuration:
| Name |
Specs |
Qty |
Place of origin |
| Cabinet |
Fiber welding cabinet |
1 |
China |
| Laser source |
MAX |
1 |
China |
| Welding head |
SUP/Qilin welding head |
1 |
China |
| Wire feeder |
Use 0.8/1.0mm welding wire |
1 |
China |
| Chiller |
1.2P Double chilling |
1 |
China |
| Laser control system |
Touch screen |
1 |
China |
| Handheld safety controller |
Prevent accidental laser emit |
1 |
China |
